Schützinger Socket Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket
Connection
CEE 7/16 CEE plug
Nominal current
32 A
Nominal current - rounded value
32 A
Factory colour
Red
Datasheet (PDF)
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details

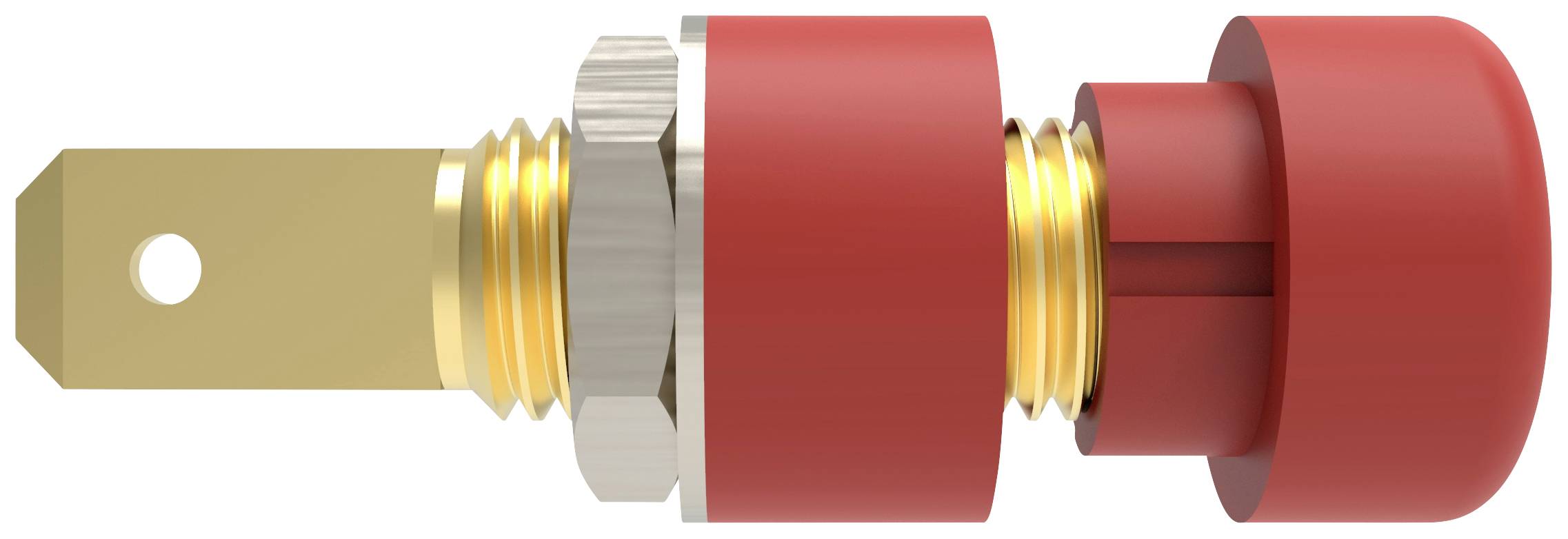

Panel jack IBU 5568 Au / RT
- 32 A Red
Technical specifications
- Design 4 mm-Program
- Contact parts: Gold-plated
- Insulation parts PA 6 (polyamide)
- Colour: red.
- Connection: Cable lug, flat plug tongue 4.8 mm x 0.8 mm
- Constant resistance 4) 3 mΩ
- RATED VOLTAGE2) 30 V/AC;60 V/DC
- Rated current2) 32 A.
- Operating temperature from -25 °C to +80 °C
- Tightening torque of fixing nut 60 Ncm
- Product type
Socket
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
CEE 7/16 CEE plug
- Factory colour
Red
- Manufacturer part #
IBU 5568 Au / RT
- Type
IBU 5568 Au / RT
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6
- Contact material
Gold plated
- Nominal voltage
30 V AC
60 V DC
- Temperature range
From -25 °C to +80 °C. °C
- UKCA
yes
