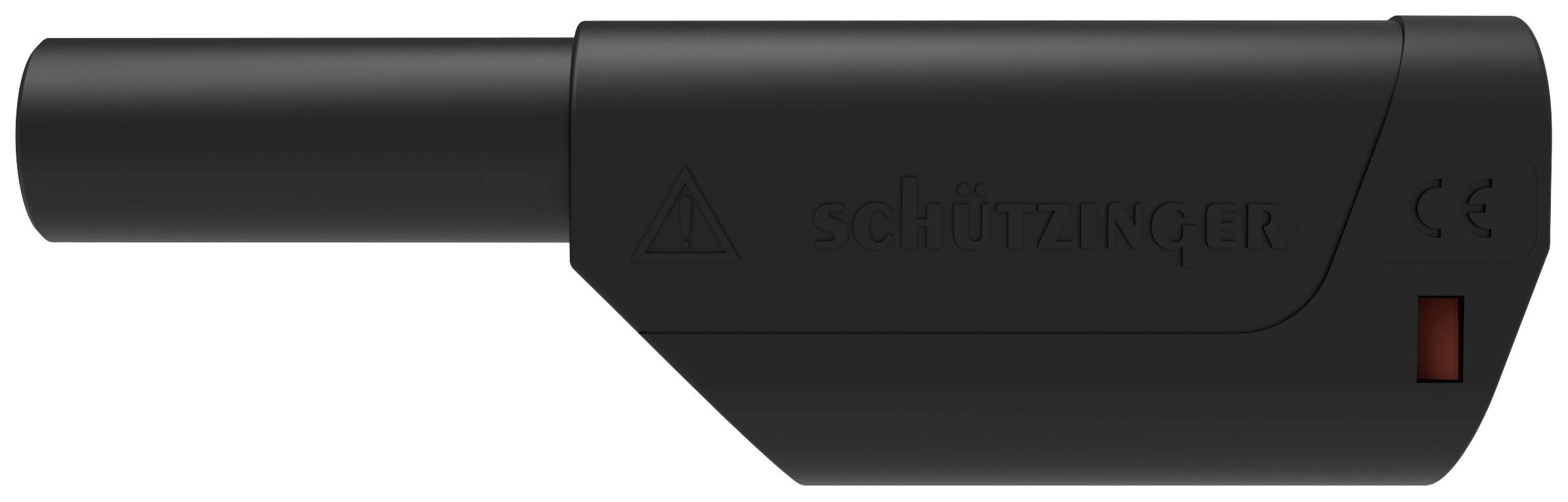

Schützinger Spring-loaded safety plug Plug Pin diameter: 4 mm Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Spring-loaded safety plug
Connector type
Plug
Pin Ø
4 mm
Connection
Soldering
Datasheet (PDF)
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
14-day return policy included
Highlights & Details
Safety spring basket plug SFK 8500 L Ni / AS / Blk
- 32 A Black
Technical specifications
- Design 4 mm-Program
- Contact parts: Nickel-plated
- PLASTIC SLEEVES: PA 6.6 (UL94-V2)
- Colour, black
- For cable cross-section: Up to 2.5 mm²
- For cable diameters: Up to 4 mm
- Connection: Solder up to 2.5 mm²
- Grip sleeve for cable: Up to Ø 4 mm
- Constant resistance 4) 3 mΩ
- Dimensioning voltage 2) 1000 V CAT II.
- Rated current2) 32 A.
- Operating temperature from -25 °C to +80 °C
- Packaging type
Piece
- Product type
Spring-loaded safety plug
- Connector type
Plug
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Soldering
- Factory colour
Black
- Manufacturer part #
SFK 8500 L Ni / AS / SW
- Type
SFK 8500 L Ni / AS / SW
- Dim
(Ø) 4 mm
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Nickel plated
- Nominal voltage
1000 V
- (Ø)
4 mm
- Temperature range
From -25 °C to +80 °C. °C
- UKCA
yes
