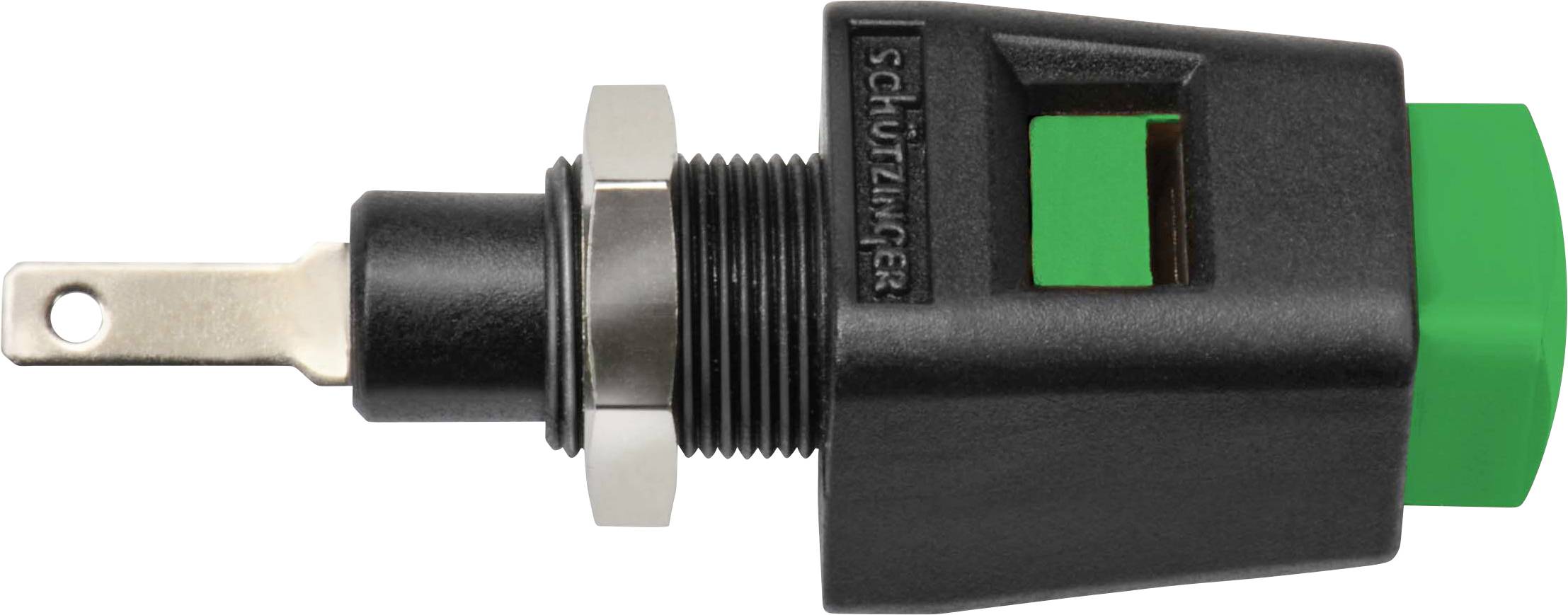

Schützinger Spring-loaded terminal Green 5 A 1 pc(s)
Part number:
Item no:
Product type
Spring-loaded terminal
Connection
Soldering
Content
1 pc(s)
Nominal current - rounded value
5 A
Factory colour
Green
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
Schützinger ESD 6554 / GN - 20 pieces
- Green
- 5 A
Technical specifications
- Contact parts: Nickel-plated
- FSH 2.8 x 0.5 or soldering terminal
- Spring force 12.0
- Contact resistance 5 mΩ
- Maximum torque attachment nut, Ncm:30 Ncm
- Plate thickness of 0.8 mm
- Plate thickness up to 4 mm
- Operating temperature of -25 °C
- Operating temperature up to +90 °C
- Product type
Spring-loaded terminal
- Connection
Soldering
- Factory colour
Green
- Content
1 pc(s)
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Manufacturer part #
ESD 6554 / GN
- Type
ESD 6554 / GN
- Material (details)
PA 6.6
- Nominal voltage
30 V AC
60 V DC
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3666177 Schützinger Spring-loaded terminal Green 5 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3666177 Schützinger Spring-loaded terminal Green 5 A 1 pc(s)
