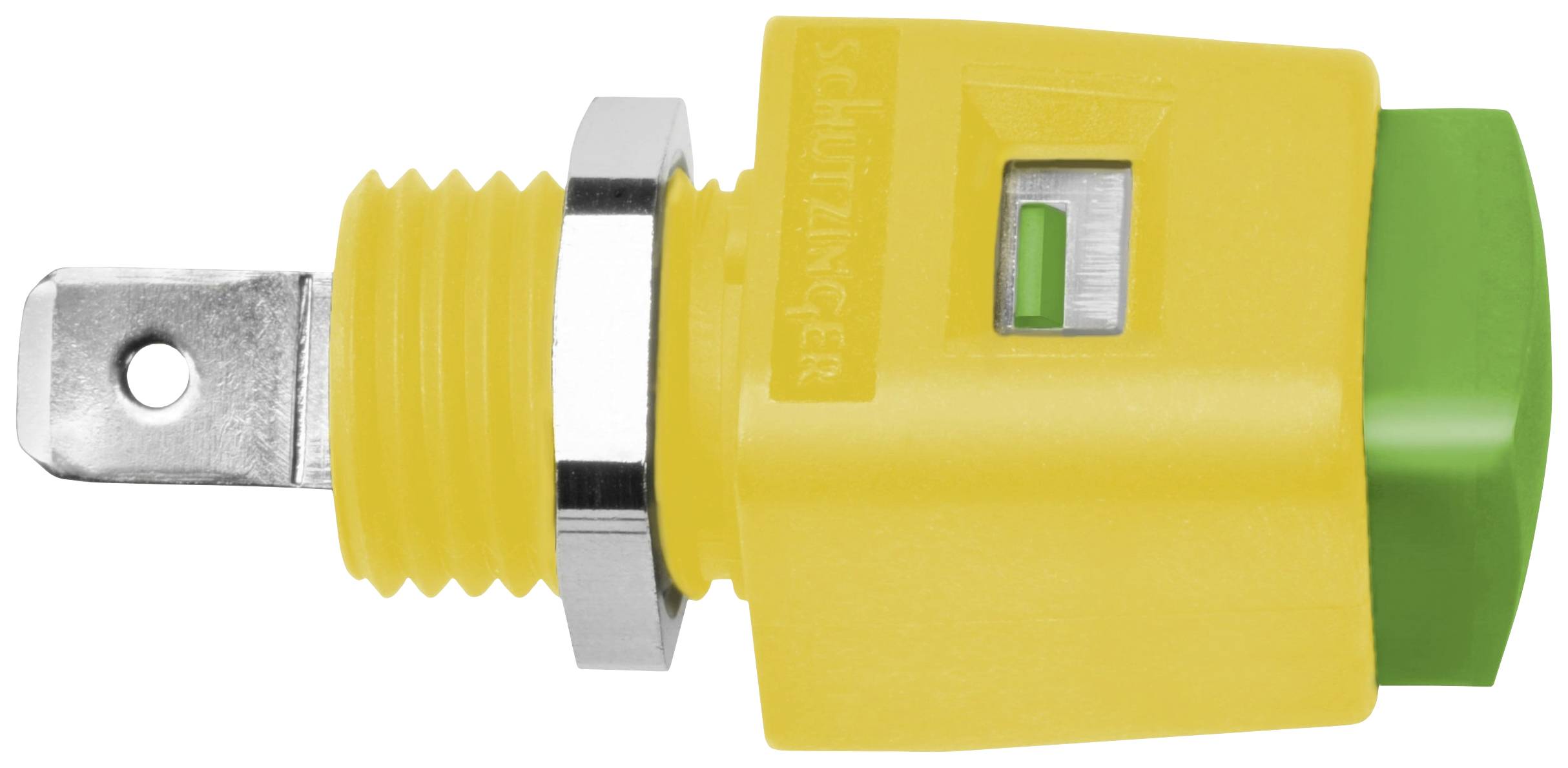

Schützinger Spring-loaded terminal Green-yellow 16 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Spring-loaded terminal
Connection
CEE 7/16 CEE plug
Content
1 pc(s)
Nominal current - rounded value
16 A
Datasheet (PDF)
Number
Total (€ 3.77 / piece)
€ 3.77
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Spring-loaded clamp ESD 498 / GNGE
- Green-yellow
- 16 A
Technical specifications
- Design 4 mm-Program
- Contact parts: Nickel-plated
- Insulation parts PA 6.6 (polyamide)
- Front panel thickness 0.8 mm - 7 mm
- Front insertion window 6.5 mm x 4 mm
- Rear insertion window 6.5 mm x 4 mm
- Spade connector 6.3 mm x 0.8 mm
- Grip sleeves 20 N
- Colour: Green-yellow
- Connection: FSH 6.3 x 0.8 or soldering
- Constant resistance 4) 5 mΩ
- RATED VOLTAGE2) 30 V/AC;60 V/DC
- Rated current2) 16 A.
- Operating temperature from - 25 °C to + 90 °C.
- Tightening torque of fixing nut 45 Ncm
- Packaging type
Piece
- Product type
Spring-loaded terminal
- Connection
CEE 7/16 CEE plug
- Factory colour
Green-yellow
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Manufacturer part #
ESD 498 / GNGE
- Type
ESD 498 / GNGE
- Insulation material
PA 6.6
- Nominal voltage
30 V AC
60 V DC
- Temperature range
From - 25 °C to + 90 °C
- Contact material
Nickel plated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2899670 Schützinger Spring-loaded terminal Green-yellow 16 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2899670 Schützinger Spring-loaded terminal Green-yellow 16 A 1 pc(s) Piece
