Schützinger VSFK 8501 / SIL1 / 150 / GNGE Connection cable 150 cm Green-yellow 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 9 Piece(s) available
Highlights & Details

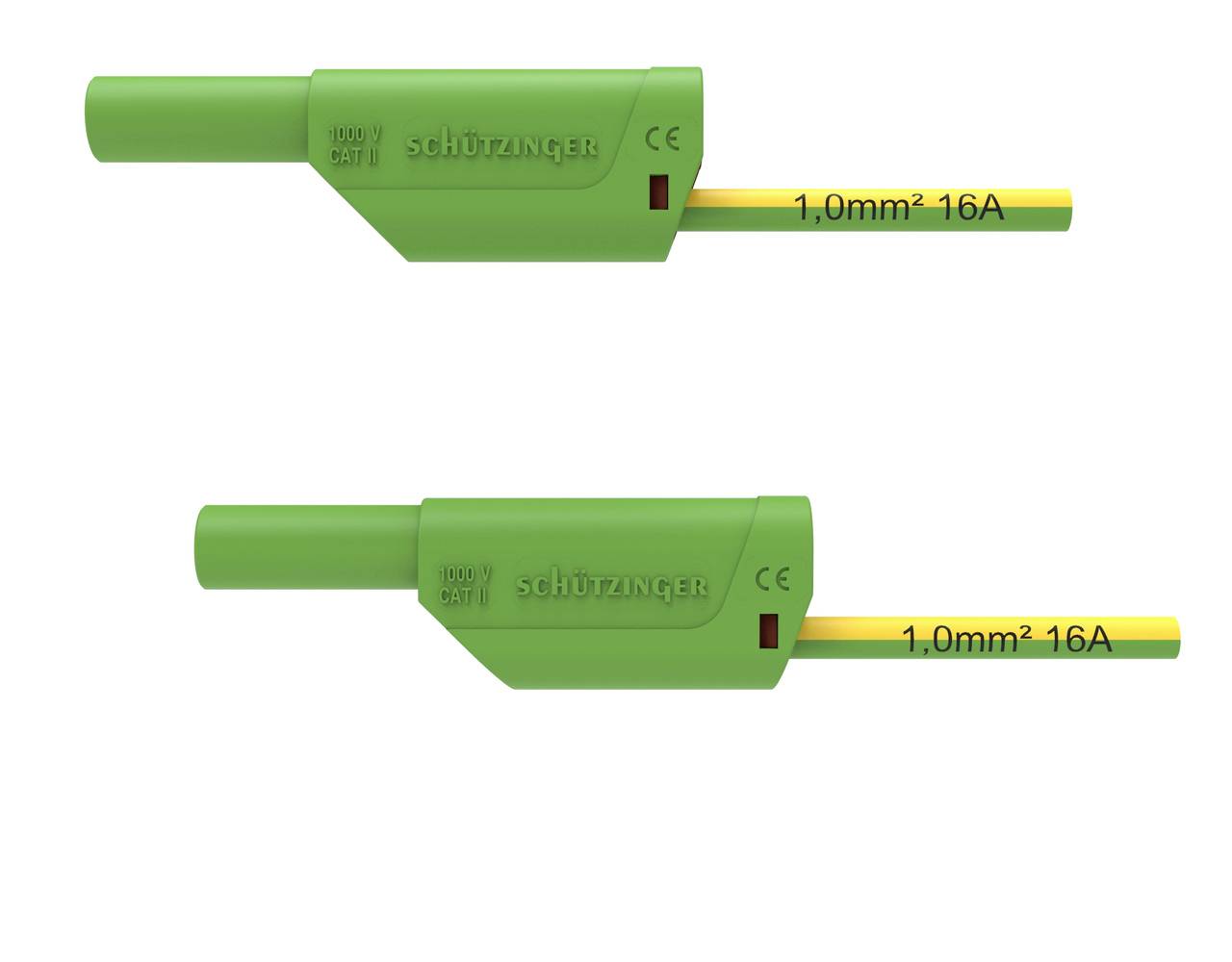

Schützinger VSFK 8501 / SIL1 / 150 / Green-yellow safety connection cable, 16A
- 2 safety spring basket plugs with axial socket connector, made to highly flexible double insulated silicone cable 1 mm²
- Narrow design - grid dimension 10 mm
- The handles are made of UL-listed material
- Further development and improvement of our successful key product VSFK 5001
- Gold-plated contact parts
- GRIP SLEEVES PA 6.6 (UL94-V2)
- This text is machine translated.
Technical specifications
- Contact resistance 22 mΩ Rated voltage 1000 V CAT II Rated current 16 A
- Product type
Connection cable
- Cable length
150 cm
- Factory colour
Green-yellow
- Plug features
Insulated
- Material
Silicone
PA 6.6
- Cable cross section
1 mm²
- Temperature range
Operating temperature from -10 °C to +90 °C. °C
- Contact material
Gold plated
- Reading category
CAT II 1000 V
- Type
VSFK 8501 / SIL1 / 150 / GNGE
Documents & Downloads
Datasheet
Datasheet 3743526 Schützinger VSFK 8501 / SIL1 / 150 / GNGE Connection cable 150 cm Green-yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3743526 Schützinger VSFK 8501 / SIL1 / 150 / GNGE Connection cable 150 cm Green-yellow 1 pc(s)
