Schwaiger SPI5500SET1 SAT system w/o receiver No. of participants: 1
EAN:
Part number:
Item no:
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Schwaiger SAT-outdoor unit 60 cm 1 TN
- For 1 subscriber
- 60 cm SAT-reflectors light-grey

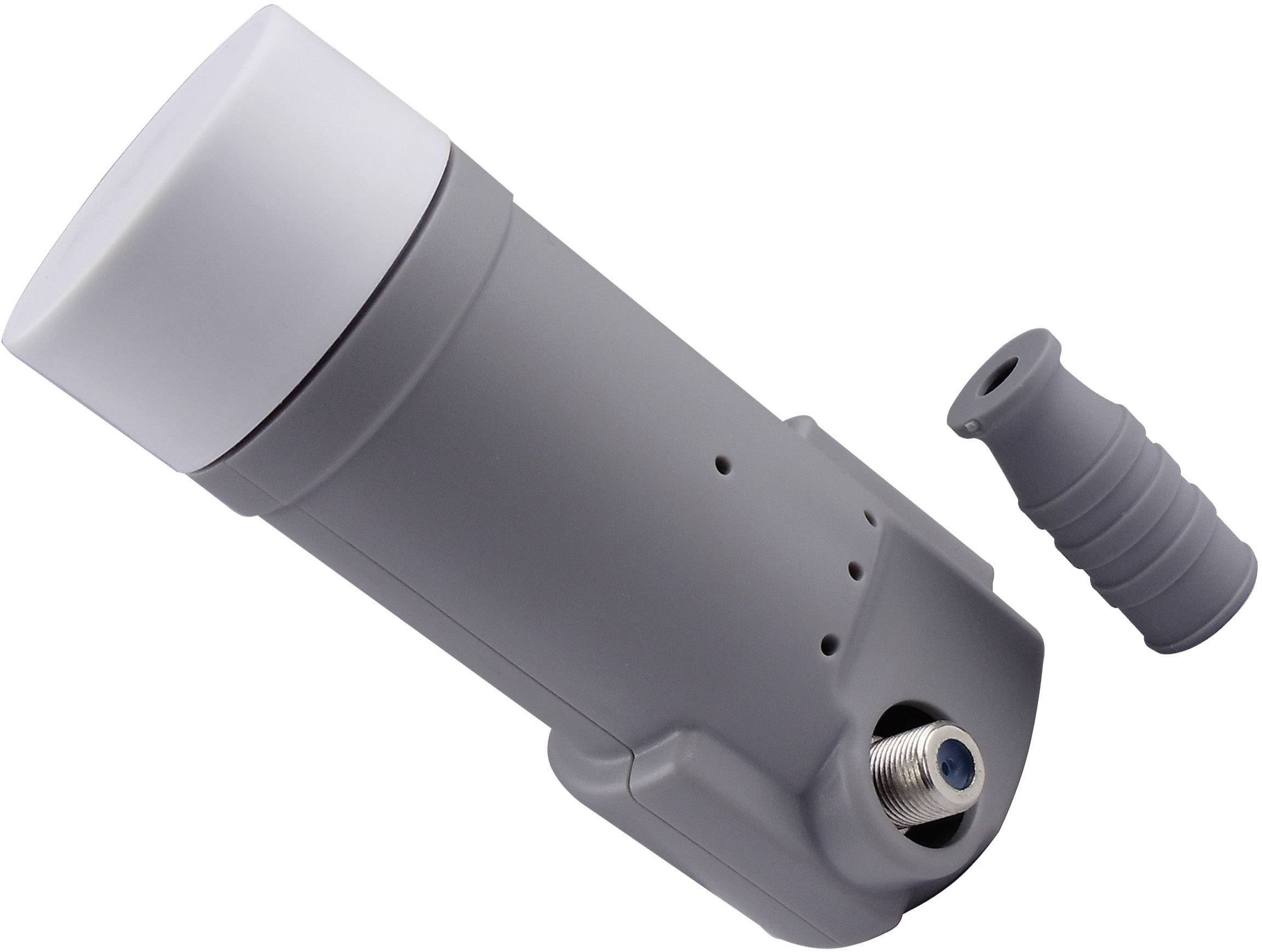

- Single LNB
Technical specifications
- Reflector (width x height): 550 x 620 mm
- Input frequency: 10.70 - 17.60 GHz (low)/17.60 - 12.75 GHz (high)
- Output frequency: 950 - 2150 MHz
- Oscillation Frequency: 9.75 GHz (low) / 10.6 GHz (high)
- Control function: 0 kHz (low)/22 kHz (high)
- Polarisation: Uncoupling> 25 dB
- Antenna gain (max): 35.2 dB
- Setting range: 15 - 50° elevation
- Participants
1
- Product type
SAT system w/o receiver
Single LNB
- Pole clamp
32 - 76 mm
- Factory colour
Light grey
- Connector
F socket
- Colour (SAT dish)
White
- LNB feed size
40 mm
- Width
55 cm
- Height
62 cm
- Satellites
1
- Package content
SAT dish
LNB
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 941683 Schwaiger SPI5500SET1 SAT system w/o receiver No. of participants: 1
Warranty Terms
Warranty Terms 941683 Schwaiger SPI5500SET1 SAT system w/o receiver No. of participants: 1
Description
Replace your old dish by this high quality model fitted with a high-performance LNB. Durability and robust high quality for the reception of the many available satellite services.
Features
- Materials:
- Mirror: galvanised steel
- Mirror holder: galvanised steel/plastic
- Feed arm: Aluminium
- Feed holder: plastic
Scope of delivery
- SAT-reflector
- Single LNB
