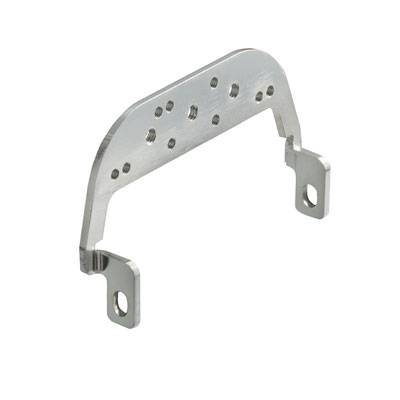

Screen holder HDC SHIELD LEVER 6 SC Weidmüller Content: 1 pc(s) Screen bracket
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screen bracket
Type
HDC SHIELD LEVER 6 SC
Manufacturer part #
1867380000
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Screen holder
- HDC SHIELD LEVER 6SC
Technical specifications
- Packaging type
Piece
- Type
HDC SHIELD LEVER 6 SC
- Product type
Screen bracket
- Manufacturer part #
1867380000
- Content
1 pc(s)
- Suitable for
HD
- Height
80 mm
- Length
15 mm
- Width
40 mm
- Weight
26 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204364 Screen holder HDC SHIELD LEVER 6 SC Weidmüller Content: 1 pc(s) Screen bracket
User & Safety Instructions
User & Safety Instructions 204364 Screen holder HDC SHIELD LEVER 6 SC Weidmüller Content: 1 pc(s) Screen bracket
Description
Shield bracket. Heavy plug connector for the shield support in connectors, there are numerous requirements. In order to these requirements, there are several coordinated solutions to choose from: Screen dissipation via a EMC cable gland. Use of shield mounts in connection with shield clips. The screen holder may vary depending on the type with the standard inserts, modular system ConCept with plastic frame or modular system ConCept with metal frame can be used. The mounting of the shielded conductors on the screen holder is done with shield clips. The shield clips are available in various sizes depending on the type of conductor available..
