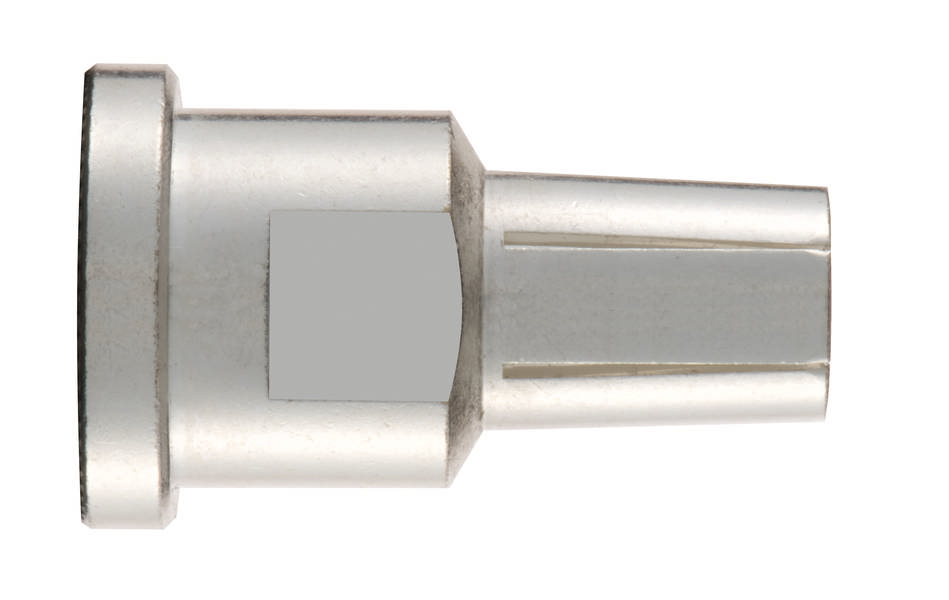

Screw-on socket M12 09110006217 HARTING Content: 1 pc(s) Screw-fastened socket
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screw-fastened socket
Type
09 11 000 6217
Manufacturer part #
09110006217
Connection
Socket
Datasheet (PDF)
Technical specifications
- Series: HAN® Q
- Rated current ≤ 100 A
- Continuous resistance ≤ 0.3 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Silver-plated contact surface
- Standards IEC 60664-1; IEC 61984
- Net weight: 23.5 g
- Designation: 1/0 Protected
- Contact type: M12 screw-on socket
- Gender: Jack
- Production process: Turned contacts
- Tightening torque: 10 Nm
- Packaging type
Piece
- Type
09 11 000 6217
- Product type
Screw-fastened socket
- Manufacturer part #
09110006217
- Connection
Socket
- Content
1 pc(s)
- Max. temperature
125 °C
Bus
-40-125 °C
Other
Silver
100 A
Other copper alloys
500
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3005632 Screw-on socket M12 09110006217 HARTING Content: 1 pc(s) Screw-fastened socket
Datasheet 3005632 Screw-on socket M12 09110006217 HARTING Content: 1 pc(s) Screw-fastened socket
User & Safety Instructions
User & Safety Instructions 3005632 Screw-on socket M12 09110006217 HARTING Content: 1 pc(s) Screw-fastened socket
Description
M12 screw-on socket, operating current: 100 A, socket, copper alloy, silver-plated
