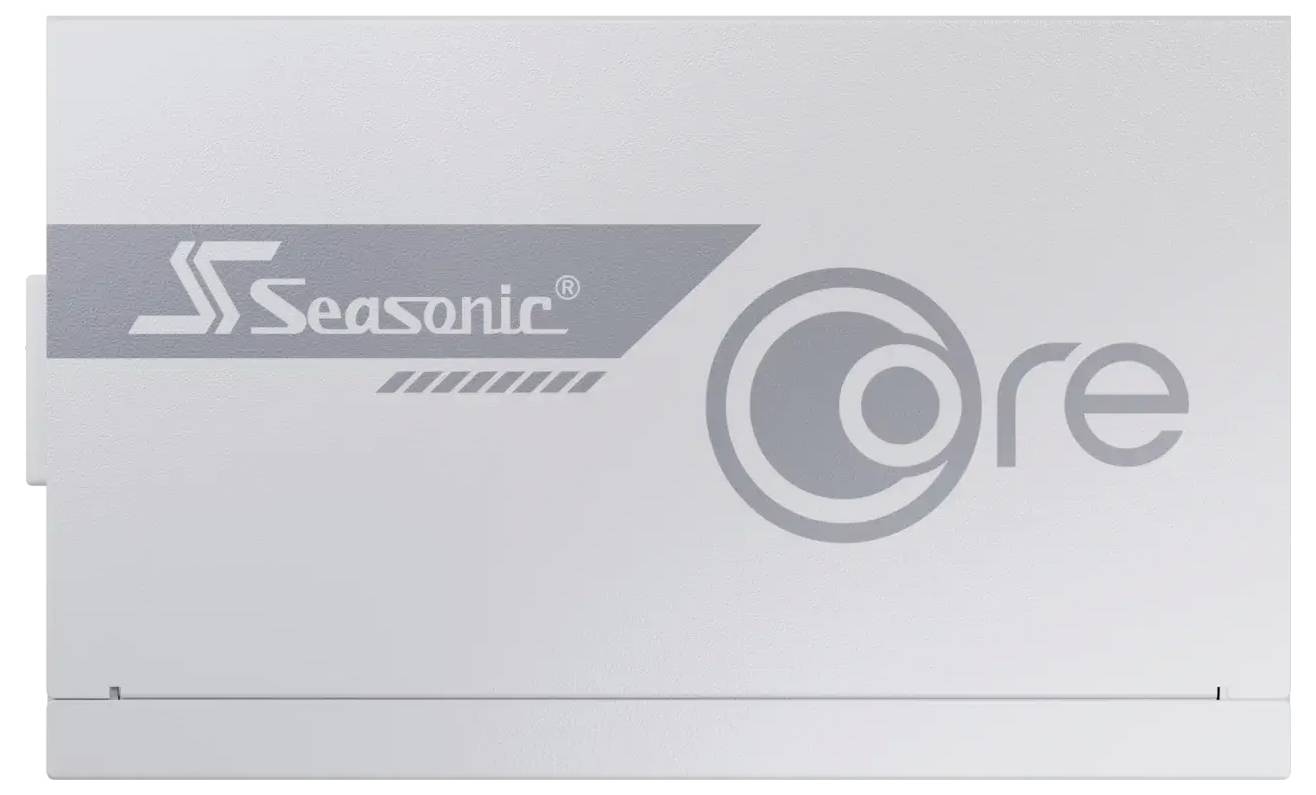

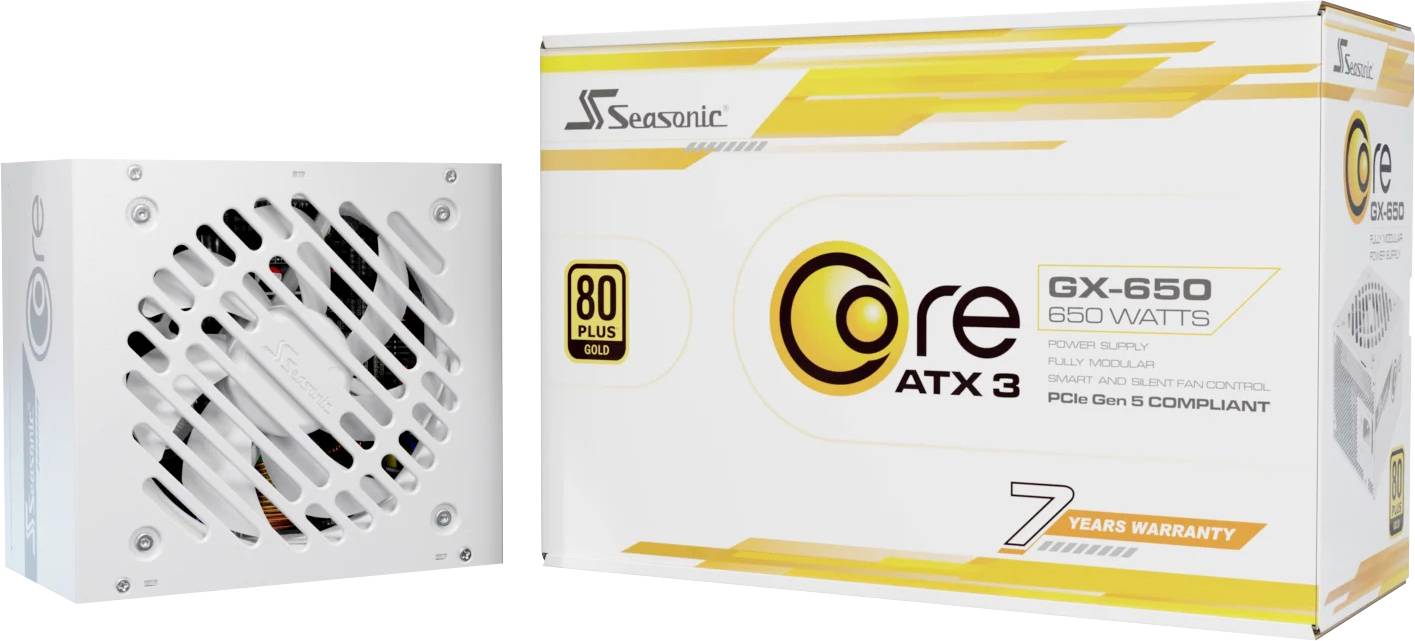

Seasonic Core-GX-650 Power supply unit 650 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
Power supply unit
PSU output power
650 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
Highlights & Details
Seasonic Core-GX-650 Power supply unit
- Power supply unit output 650 W
- PCI-Express (6+2-Pin) 1x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Fan diameter 12 cm
- Product type
Power supply unit
- PSU output power
650 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
White
- Dim
(W x H x D) 140 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
140 mm
- Weight
3.02
- -12V / DC
0.3 A
- +12 V/DC (1)
54 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 20+4-pin.
1
- 4-pin Molex
3
- 6-pin PCIe
1
- 5-pin SATA
3
- Output rating > 500 W
650 W
- Power rating
501 - 750 W
- Cooling
Active
- Fan size
120 mm
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Motherboard power cable length
61 cm
- CPU power cable length
75 cm
- PCI Express power connectors (12+4 pin)
1
- Mean time between failures (MTBF)
100000 h
- On/off switch
yes
- CPU power connector (4+4 pin)
yes
- Combined power (+3.3V)
100 W
- Combined power (+12V)
648 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
