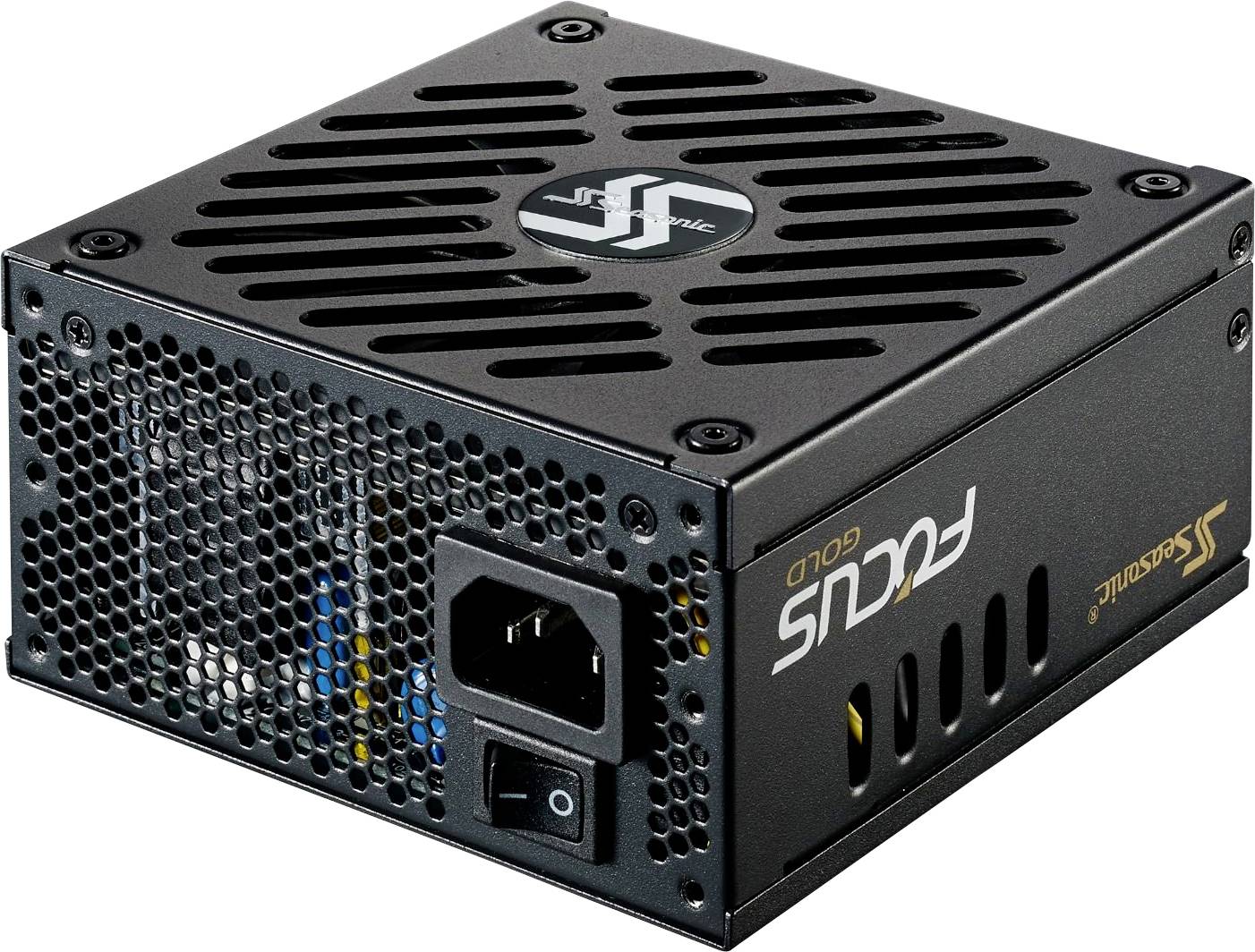

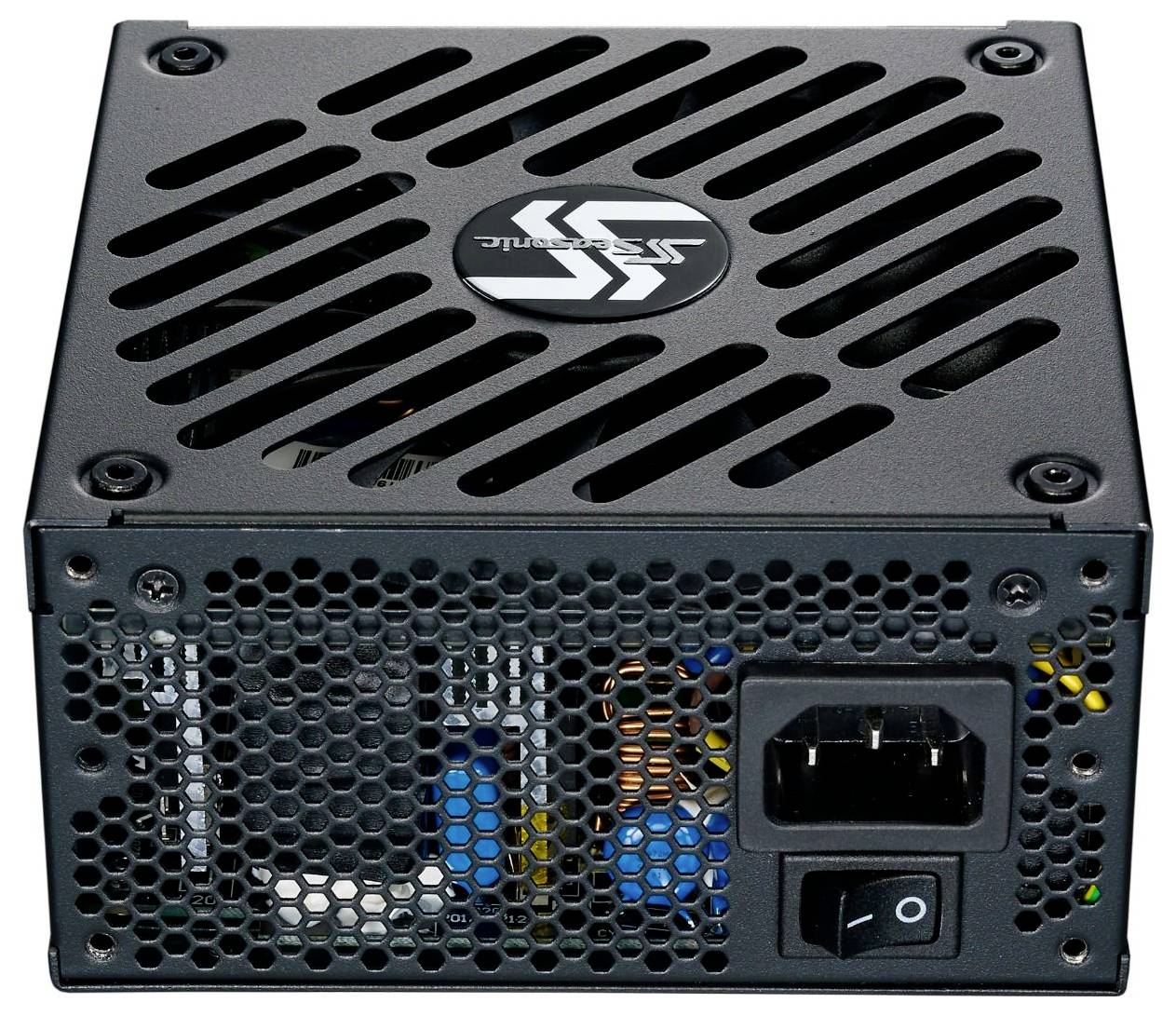

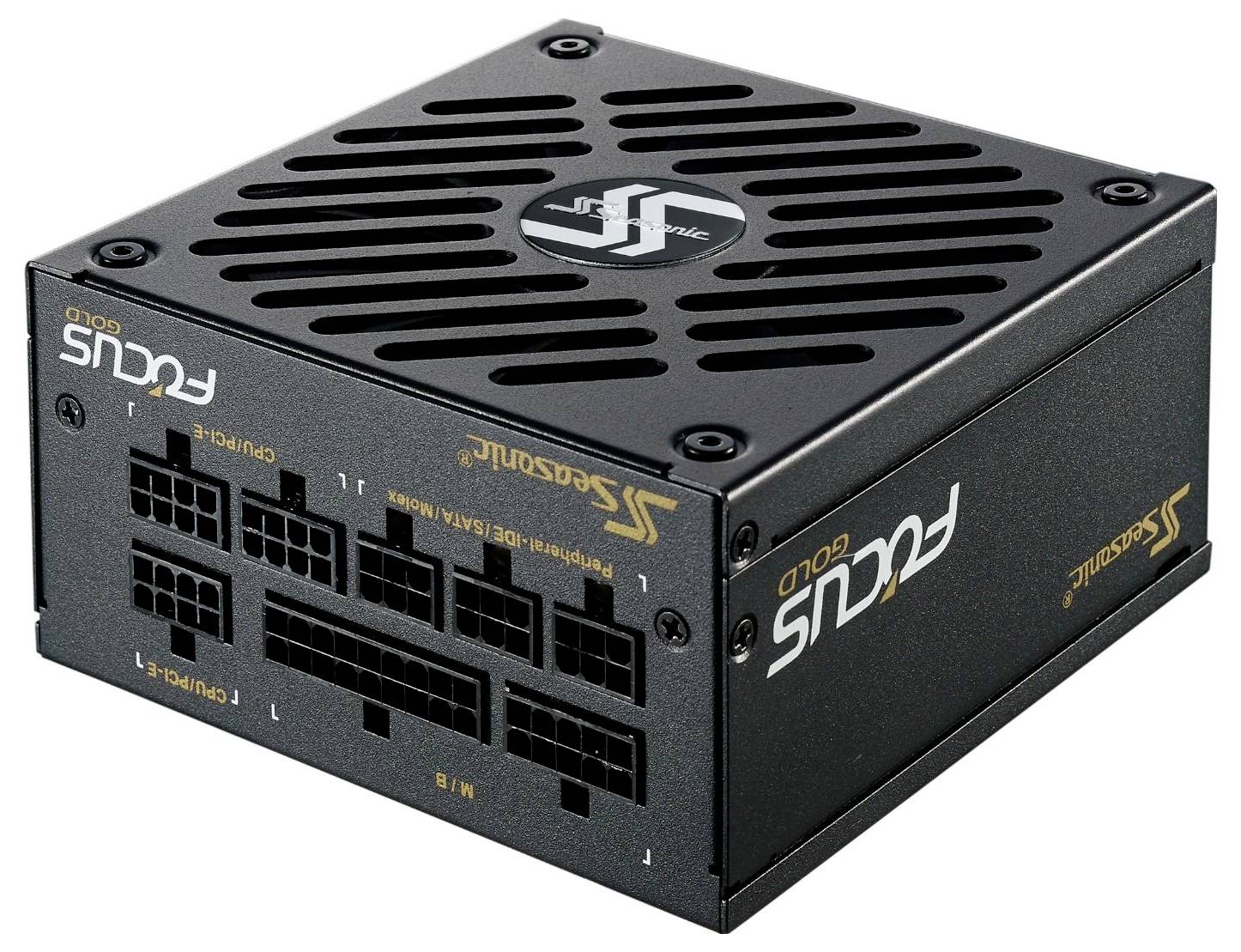

Seasonic Focus-SGX-650 Power supply unit 650 W SFX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
Power supply unit
PSU output power
650 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
SFX
Highlights & Details
Seasonic Focus-SGX-650 Power supply unit
- Power supply unit output 650 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Fan diameter 12 cm
- Number of fans: 1 fans
- Product type
Power supply unit
- PSU output power
650 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
SFX
- Factory colour
Black
- Dim
(W x H x D) 125 x 63.5 x 125 mm
- Depth
125 mm
- Height
63.5 mm
- Width
125 mm
- Weight
2
- -12V / DC
0.3 A
- +12 V/DC (1)
54 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
3
- 6-pin PCIe
4
- 6-pin PCIe
4
- 5-pin SATA
6
- Output rating > 500 W
650 W
- Power rating
501 - 750 W
- Cooling
Active
- Fan size
120 mm
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Illumination
no
- Motherboard power cable length
35 cm
- CPU power cable length
40 cm
- Mean time between failures (MTBF)
100000 h
- CPU power connector (4+4 pin)
yes
- Combined power (+3.3V)
100 W
- Combined power (+12V)
648 W
- Combined power (+5V)
100 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3533454 Seasonic Focus-SGX-650 Power supply unit 650 W SFX 80 PLUS Gold
