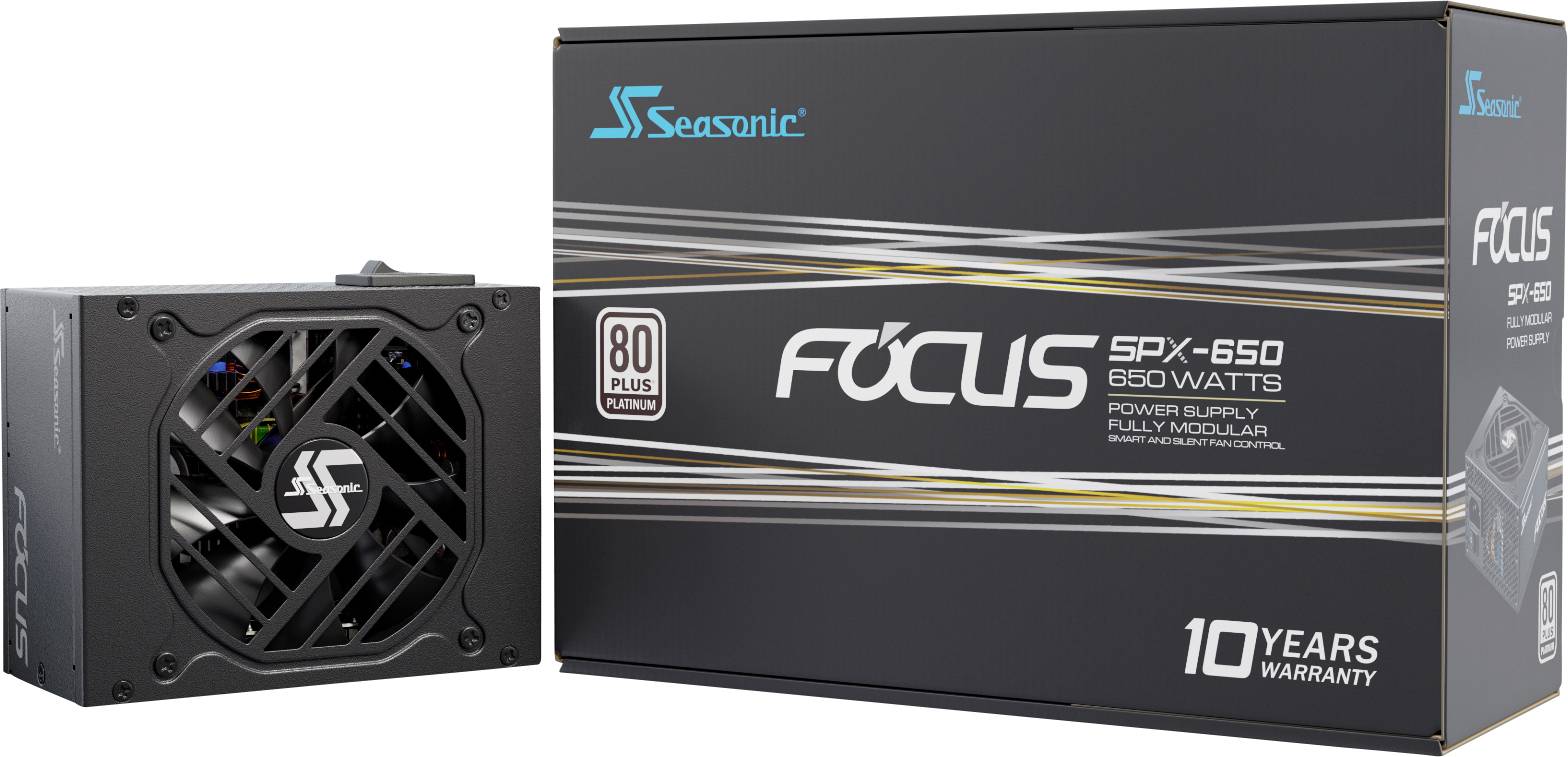

Seasonic FOCUS-SPX-650 PC power supply unit 650 W CFX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
650 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
CFX
Highlights & Details
Seasonic FOCUS-SPX-650 PC power supply unit
- Power supply unit output 650 W
- PCI-Express (6+2-Pin) x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- 80 Plus certification: 80 PLUS Platinum
- Fan diameter 9.2 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
650 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
CFX
- Factory colour
Black
- Dim
(W x H x D) 125 x 63.5 x 100 mm
- Depth
100 mm
- Height
63.5 mm
- Width
125 mm
- Weight
2.06
- -12V / DC
0.3 A
- +12 V/DC (1)
54 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
3
- 5-pin SATA
6
- Power rating
501 - 750 W
- Cooling
Active
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Motherboard power cable length
35 cm
- Cable tie(s) included
yes
- Mean time between failures (MTBF)
100000 h
- On/off switch
yes
- PCI Express power connectors (8-pin)
4
- Combined power (+3.3V)
120 W
- Combined power (+12V)
648 W
- Combined power (+5V)
120 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
