SecoRüt 40415.2 Trailer testing kit
EAN:
Part number:
Item no:
Number
Total (€ 528.57 / piece)
€ 528.57
plus VAT.
14-day return policy included
Highlights & Details
Truck NFZ trailer testing kit 24 volts with built-in power supply ABS/EBS, 7 (N/S), 13 und 15 pin
- Testing all major 24-volt trailer connections
- Support for 7-pin (N/S), 13-pin, 15-pin ABS/EBS
- Simulation of the complete trailer lighting
- Integrated power supply for mains test operation
- Robust and portable system case
- Intuitive operation via rotary switch
- Ideal for workshops, shipping companies, commercial vehicle service and test operations
- Fast fault diagnosis and significant time savings
Technical specifications
- Product type
Trailer testing kit
- Connector (trailer)
7-pin type N socket
7-pin type S socket
15-pin socket
13-pin socket
- Trailer
HGV
- Operating voltage
250 V/50 Hz
- Operating voltage
24 V / DC
- Width
400 mm
- Height
50 mm
- Length
320 mm
- Power supply (LOV)
mains-powered
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3800201 SecoRüt 40415.2 Trailer testing kit
Description
The ControlCase 24V is the ideal solution for workshops, commercial vehicle operations, trailer service and test organizations. This compact test case can be used to test and simulate all the common 24 V trailer connections as well as the complete vehicle lighting – quickly, reliably and without extensive error search.
Whether maintenance, repair or diagnostics: With the ControlCase you save time and get immediately meaningful test results.
Suitable for
- 7-pin trailer connector (N & S)
- 13-pin trailer connector
- 15-pin ABS/EBS connections
- ISO connection
- 24-volt trailer systems

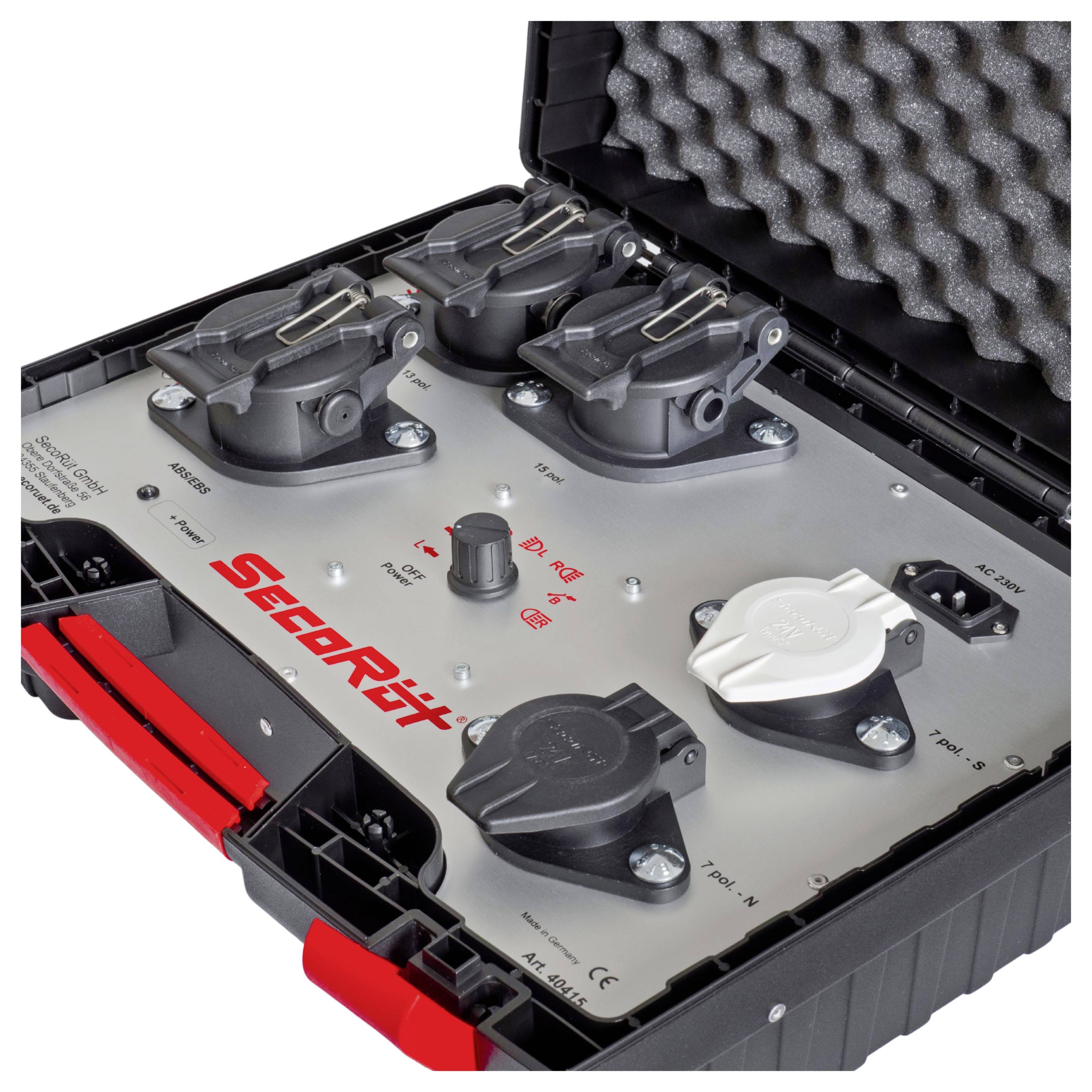

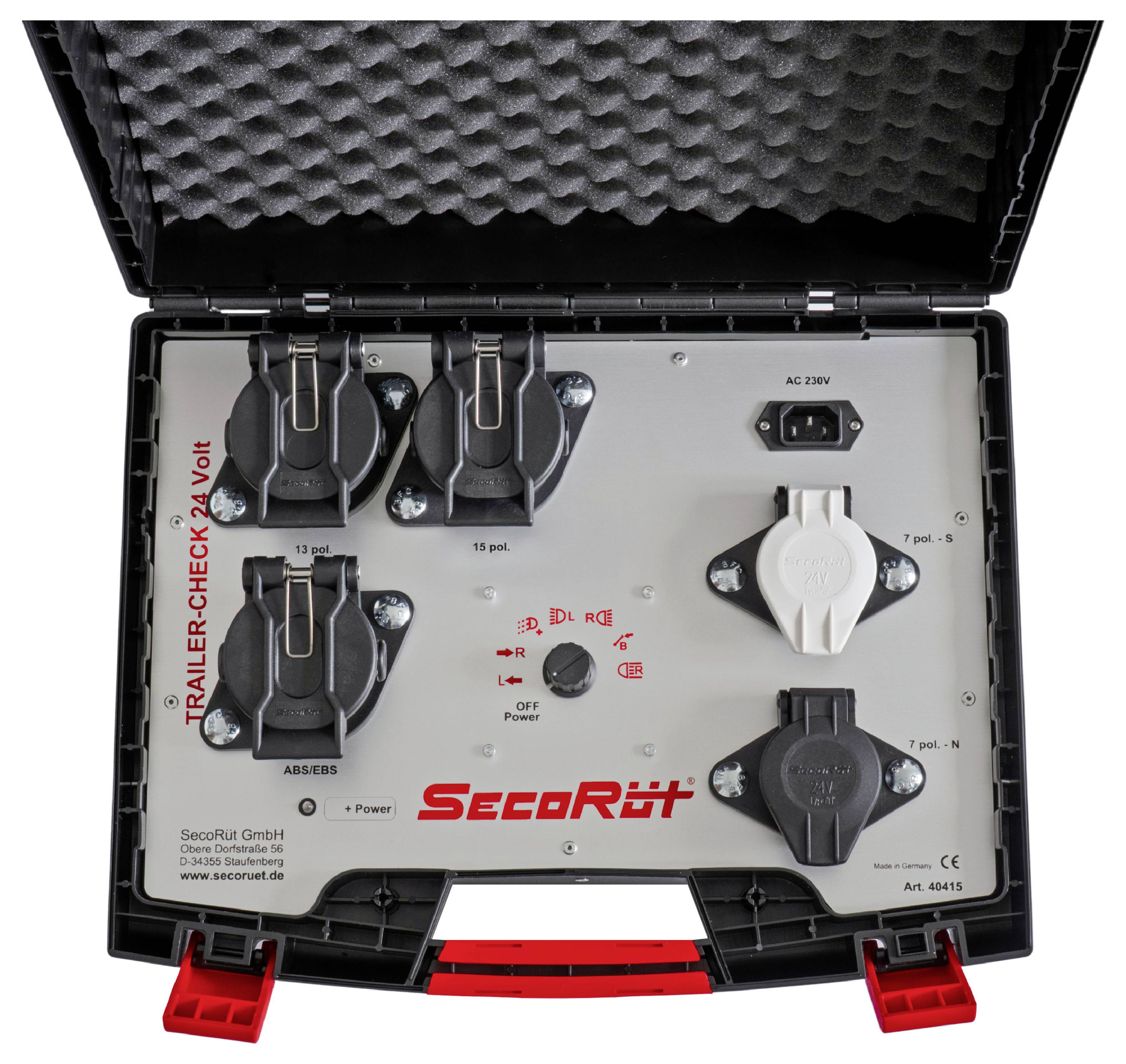

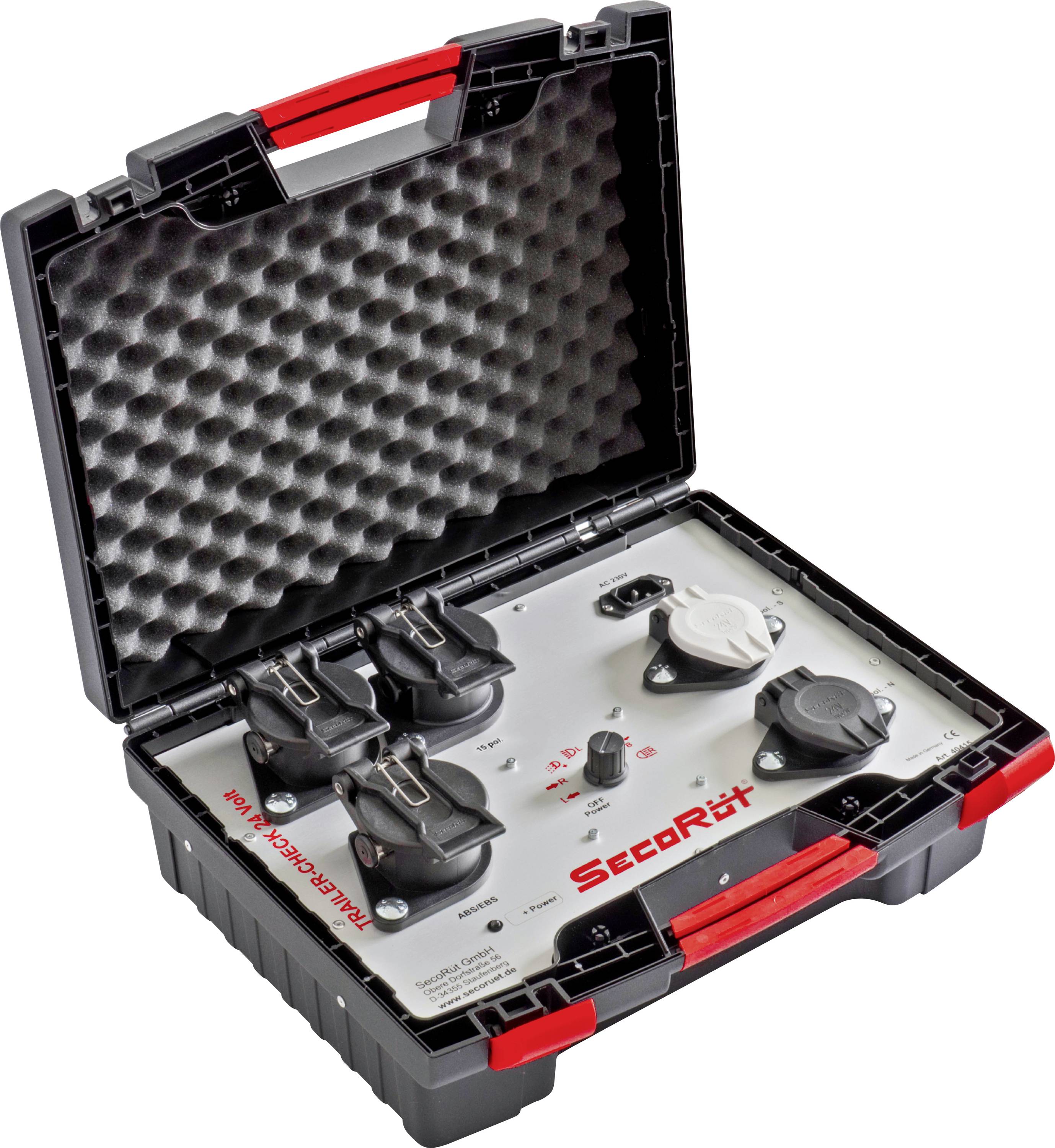

All functions in a compact test case
The integrated power supply supplies the test case reliably with power and enables the realistic simulation of all connections and lighting functions - completely without a towing vehicle. The robust system case protects the technology reliably and is suitable Ideal for the mobile use in the workshop or directly at the customer's.
Easy to Use
The selection of the test functions is carried out comfortably with a clear rotary switch. Thus all the tests can be done quickly, safely and intuitively - perfect for the daily work-shop use.
This text is machine translated.
Whether maintenance, repair or diagnostics: With the ControlCase you save time and get immediately meaningful test results.
Suitable for
- 7-pin trailer connector (N & S)
- 13-pin trailer connector
- 15-pin ABS/EBS connections
- ISO connection
- 24-volt trailer systems
All functions in a compact test case
The integrated power supply supplies the test case reliably with power and enables the realistic simulation of all connections and lighting functions - completely without a towing vehicle. The robust system case protects the technology reliably and is suitable Ideal for the mobile use in the workshop or directly at the customer's.
Easy to Use
The selection of the test functions is carried out comfortably with a clear rotary switch. Thus all the tests can be done quickly, safely and intuitively - perfect for the daily work-shop use.
This text is machine translated.
Scope of delivery

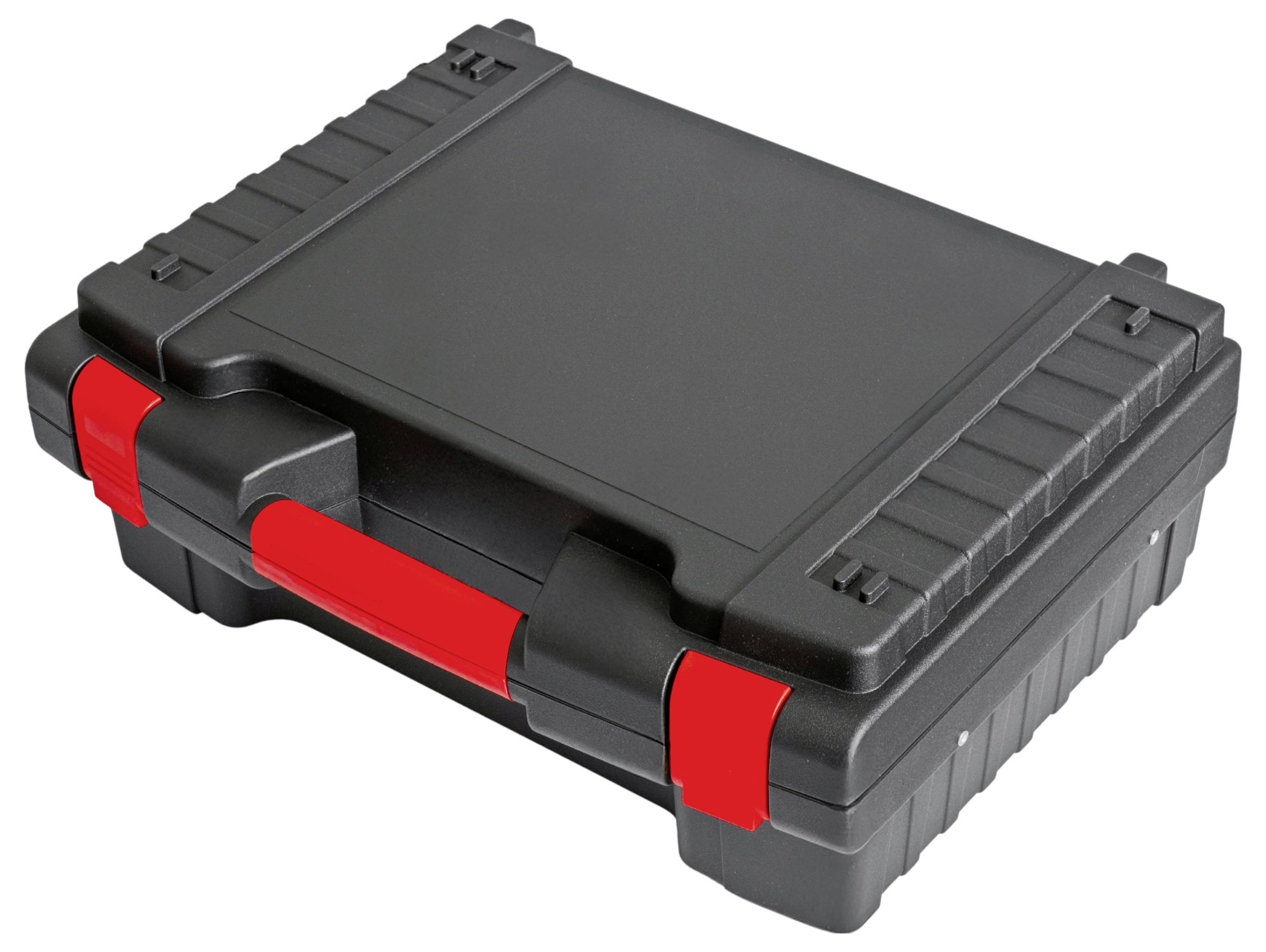

- Test case

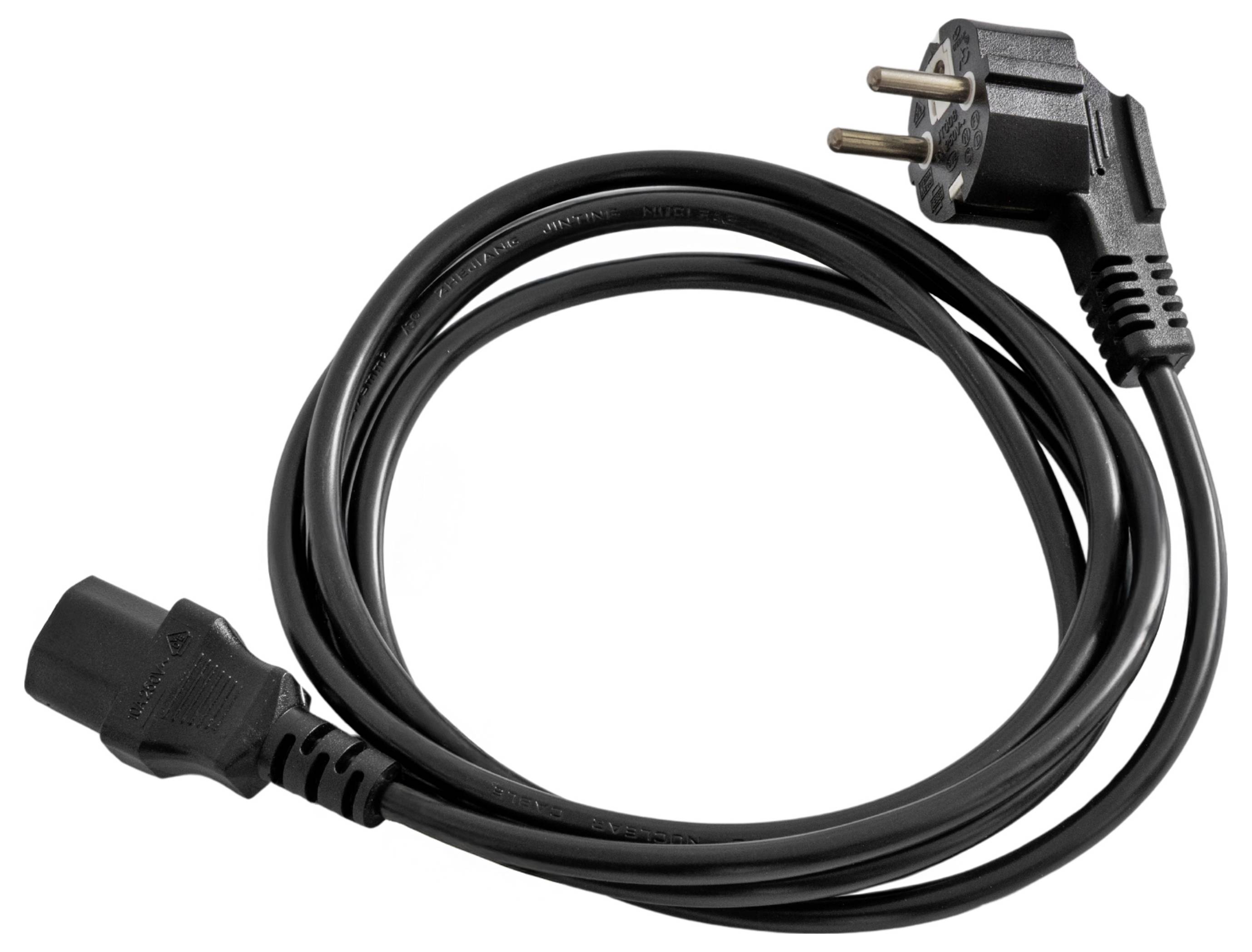

- IEC Mains Power Cables
- User manual.
System requirements
- 7-pin plug (N) in accordance with ISO 1185
7-pin plug (S) according to ISO 3731
15-pin plug in accordance with ISO 12098
ABS-/EBS-Plug according to ISO 7638
24-Volt trailer systems
