SecoRüt Cable length=50 cm Voltage limiter Open cable ends
EAN:
Part number:
Item no:
Highlights & Details
Voltage reducer from 24 to 12 V fixed installation
- Short-circuit and overload protection
- Power reserves for additional lamps
- Aluminum casing.
Technical specifications
- Cable length input 24 V 50 cm; output 12 V 300 cm
- Dim
(W x H x D) 160 x 80 x 40 mm
- Product type
Voltage limiter
- Connection A
Open cable ends
- Connection B
Open cable ends
- Type
Spannungreduzierer for the operation of 12 volts to 24 Volts Zufahrzeugen supporters. Fixed installation
- Design type
Aluminum housing with protection class IP 64
- Wire inlet
24 Volt
- Cable length
50 cm
- Width
160 mm
- Height
80 mm
- Depth
40 mm
- Cable diameter (details)
9.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1492039 SecoRüt Cable length=50 cm Voltage limiter Open cable ends
Description
Voltage reducer for lighting supply of 12 V trailer from a 24 V on-board power supply. Electronics in an aluminum housing according to IP64. The voltage reducer meets the failure safety according to statutory requirements through seven separate circuits. Also suitable for lamps monitoring circuits. With internal short-circuit and overload protection, for each circuit. Power reserves for trailer additional lamps.
This text is machine translated.
This text is machine translated.
Features

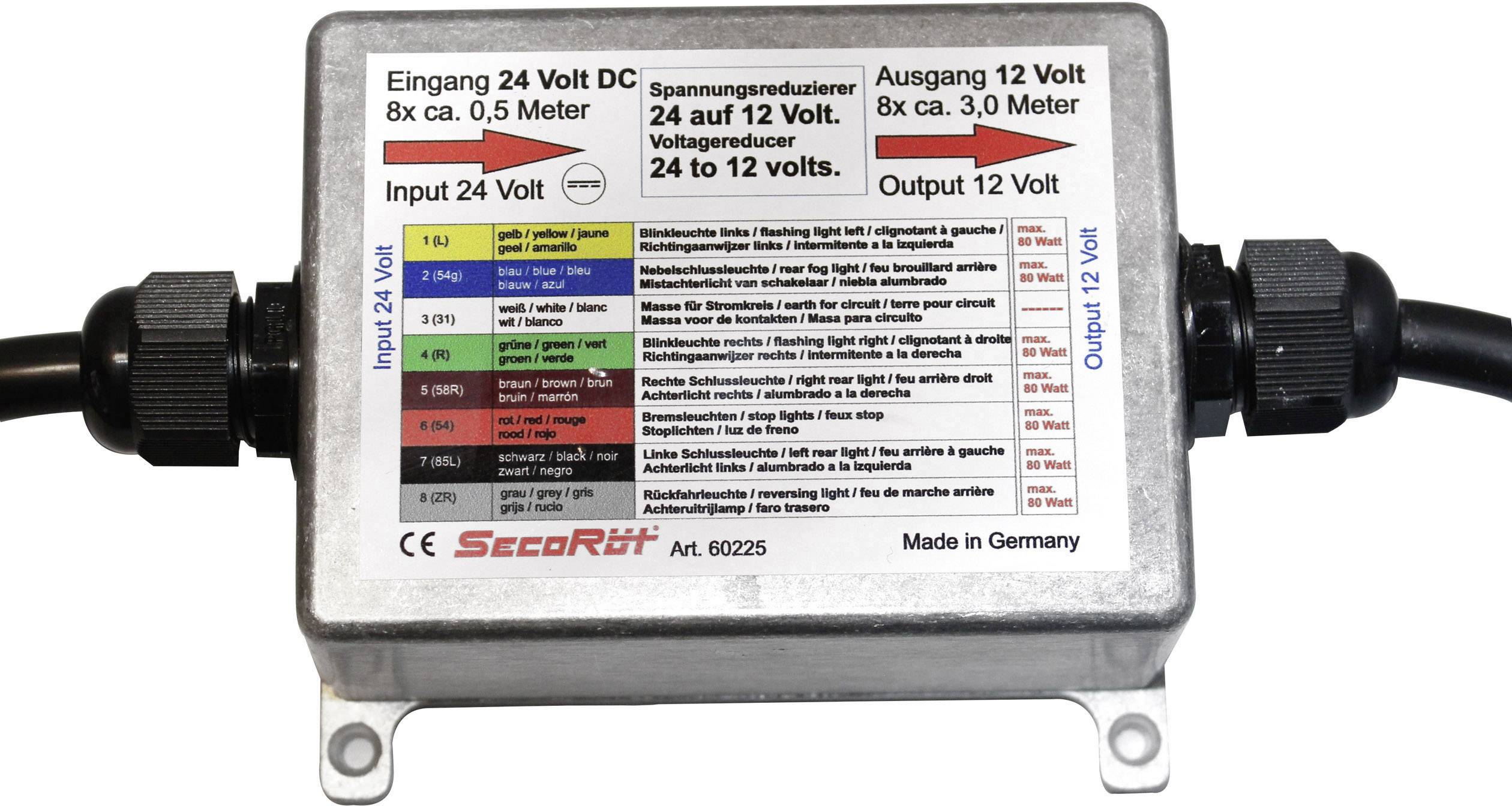

- 8-pin 7 plus lines + 1 minus line
- Short-circuit and overload protection for every circuit
- Power reserves for trailer additional lamps
- E1 approval
System requirements
- 24 Volt DC voltage
