SecoRüt ECO771-136 Cable [Trailer 15-pin socket - Trailer 7-pin type N socket, Trailer 7-pin type S socket]
EAN:
Part number:
Item no:
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Only 7 Piece(s) available
Highlights & Details

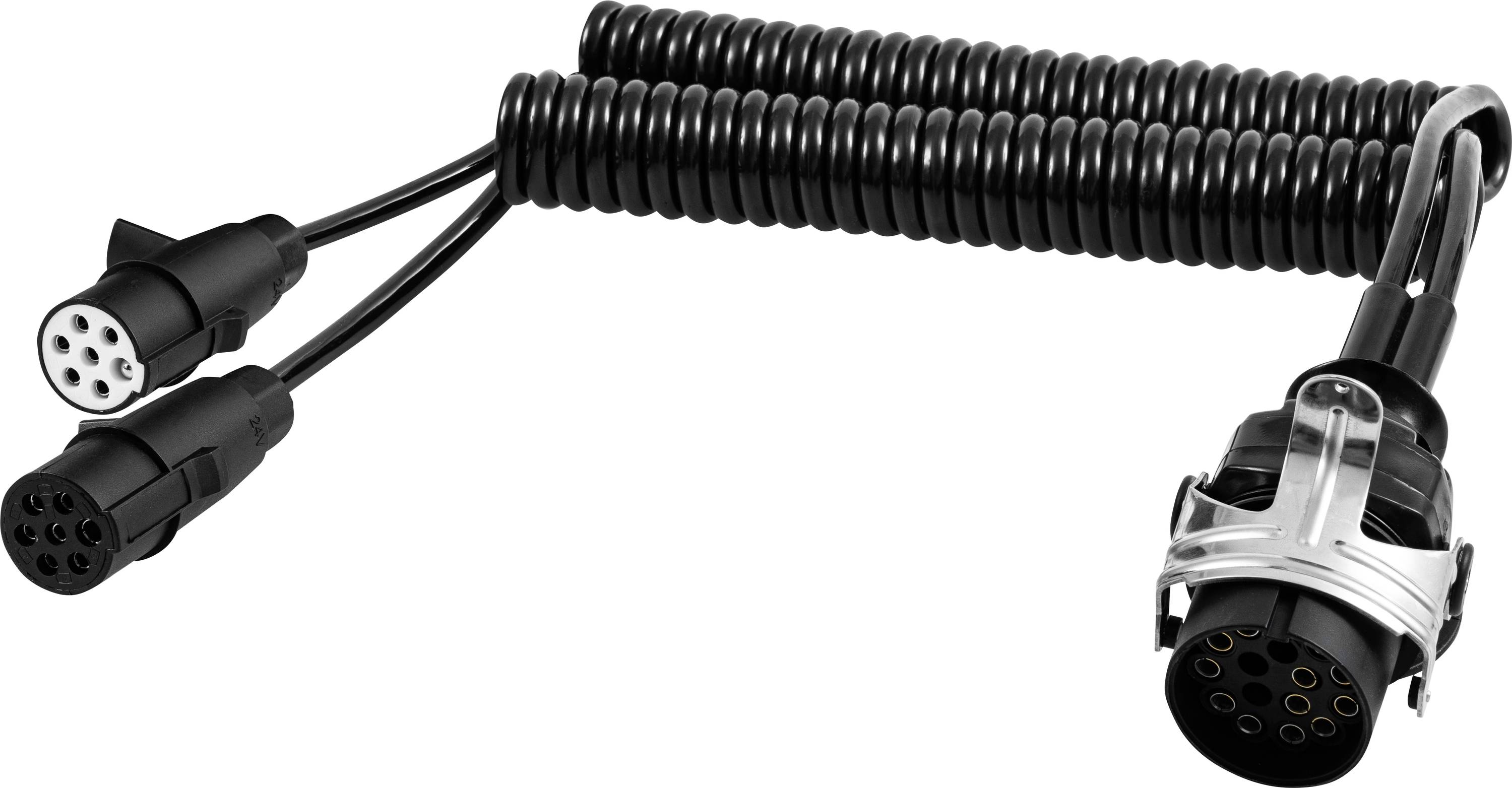

24 volt adapter spiral cable 15-pin to 7-pin N+S
- Connection: 15-pin (vehicle side) to 2x 7-pin (trailer: Type N + type S)
- Voltage 24 volt
- Cable length 3.5 meters
- Cable type: Highly flexible spiral cable with strong restoring force
- Standards: Compatible with ISO 12098 (15-pin) and ISO 1185/3731 (7-pin N/S)
Technical specifications
- Product type
Cable
- Features
Spiral cable
- Connector (trailer)
Trailer 7-pin type N socket
Trailer 7-pin type S socket
- Connector (vehicle)
Trailer 15-pin socket
- Operating voltage
24 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3413265 SecoRüt ECO771-136 Cable [Trailer 15-pin socket - Trailer 7-pin type N socket, Trailer 7-pin type S socket]
Description
24V adapter spiral cable | 15-pin to 2x 7-pin (type N+S) | Length: 3.5 m – For secure connection.
This 3.5-meter spiral adapter cable reliably connects a vehicle with a 15-pin socket to a trailer that has two separate 7-pin sockets (type N and type S). The perfect solution for the combined use of different plug systems in the 24-volt range.
Suitable for trucks, commercial vehicles, agricultural trailers and trailers – wherever a reliable power connection is required between different plug systems.
This text is machine translated.
This 3.5-meter spiral adapter cable reliably connects a vehicle with a 15-pin socket to a trailer that has two separate 7-pin sockets (type N and type S). The perfect solution for the combined use of different plug systems in the 24-volt range.
Suitable for trucks, commercial vehicles, agricultural trailers and trailers – wherever a reliable power connection is required between different plug systems.
This text is machine translated.
Features
- Plug 15-pin - ISO 12098
- Plug N - ISO 1185
- Plug S - ISO 3731
System requirements
- 24 V DC on-board power supply
