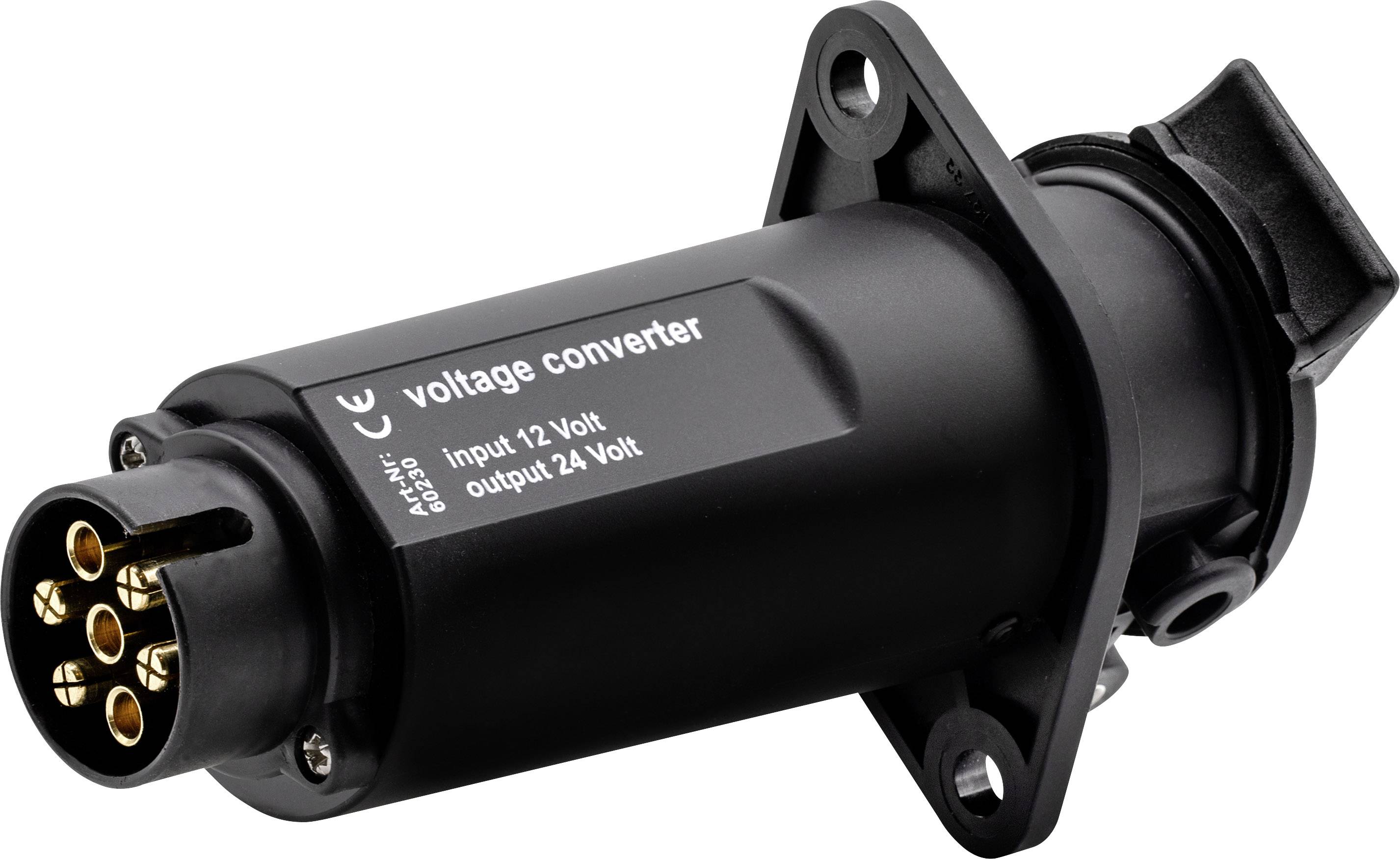

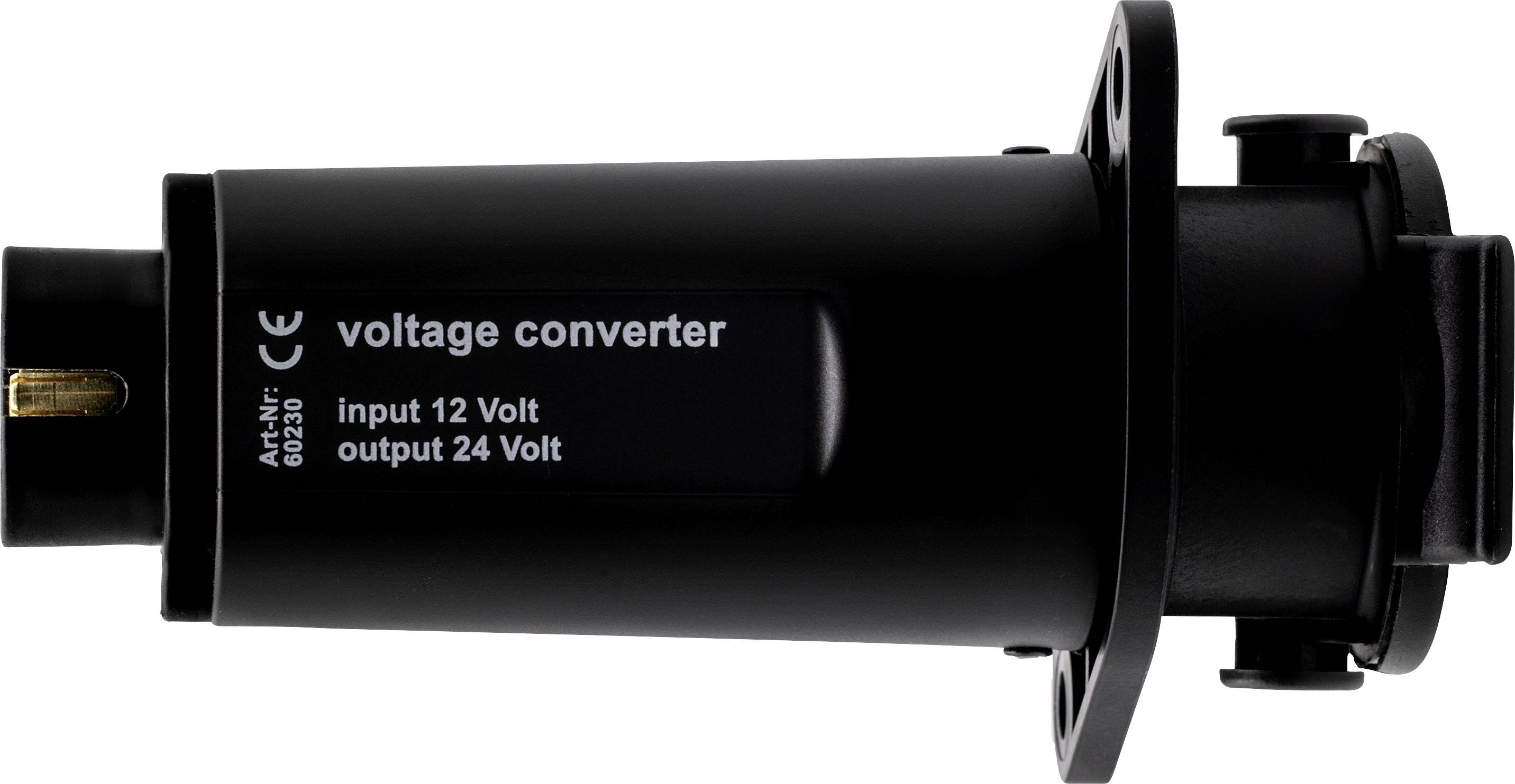

SecoRüt Voltage doubler 7-pin plug No. of cores 7
EAN:
Part number:
Item no:
Highlights & Details
Voltage doubler 7pol 12 to 24 V 15pol
- 7-pin (ISO 1724) to 15-pin (ISO 12098)
- Maximum load: 85W per line
- Short circuit proof: 20A for 5 seconds
Technical specifications
- Dim
(L x W x H) 175 x 55 x 90 mm
- Product type
Voltage doubler
- No. of cores
7
- Connection A
7-pin plug
- Connection B
15-pin socket
- Design type
Adapter
- Width
55 mm
- Height
90 mm
- Length
175 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2251547 SecoRüt Voltage doubler 7-pin plug No. of cores 7
Description
Operate 24 volt trailer to a 12 volt towing vehicle without much effort. The SecoRüt tension doubler gives you the possibility to move a 24V trailer with a 12V towing vehicle. Completely without modification, simply plug the adapter between your vehicle and trailer. The robust ABS casing makes the adapter suitable for agricultural or similar use.
This text is machine translated.
This text is machine translated.
Features

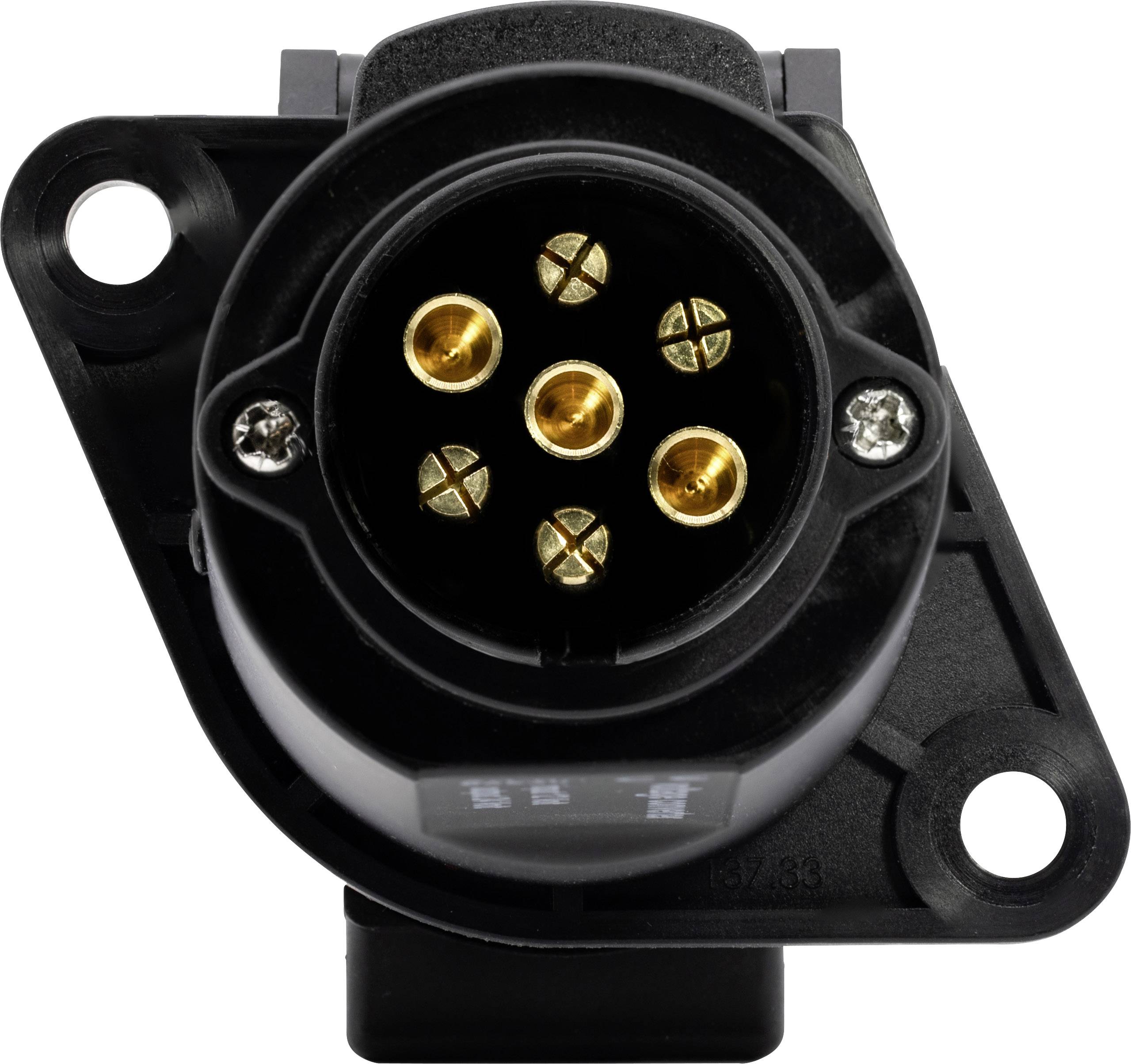

- Input 7-pin 12 V (ISO 1724)

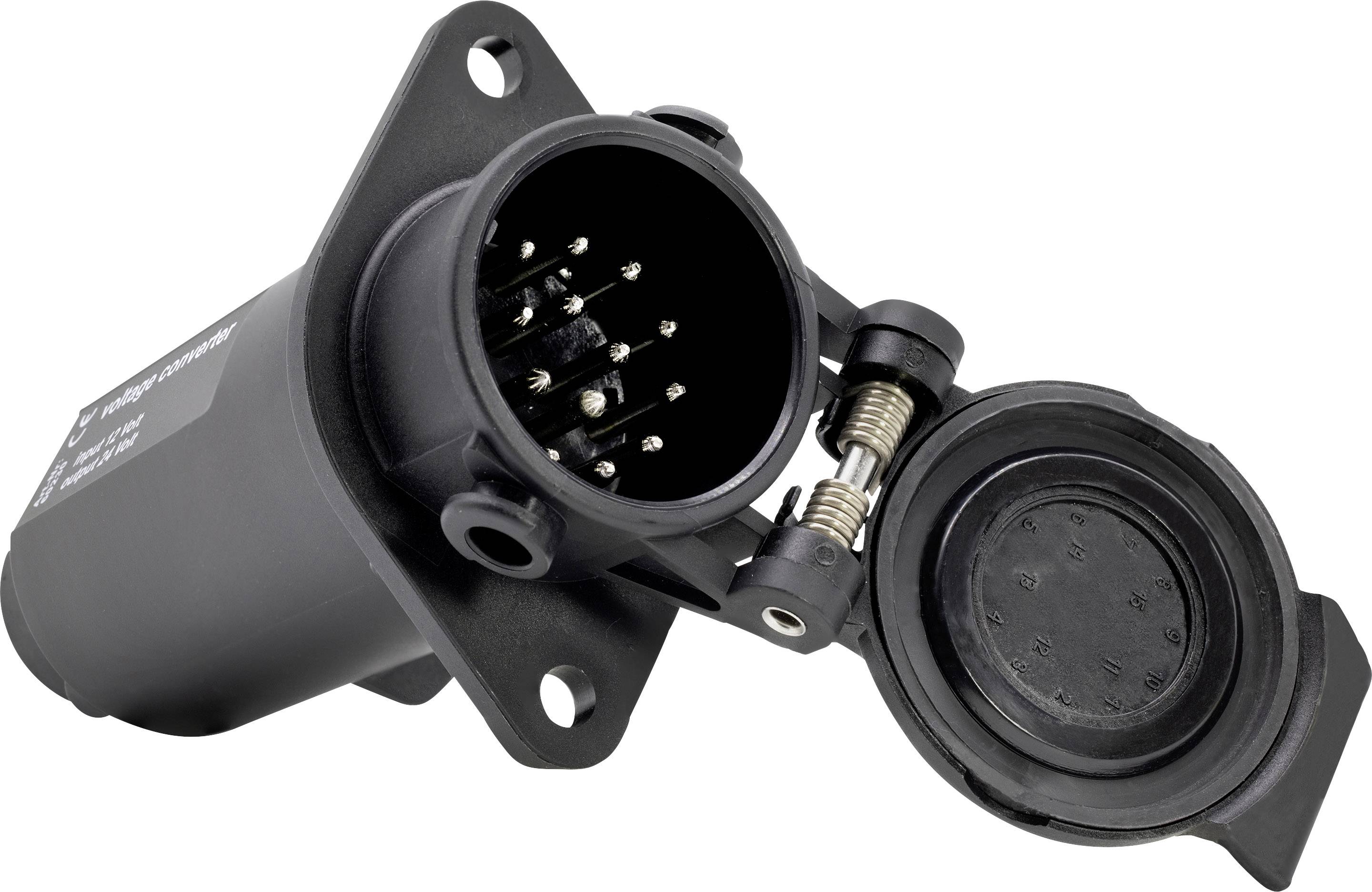

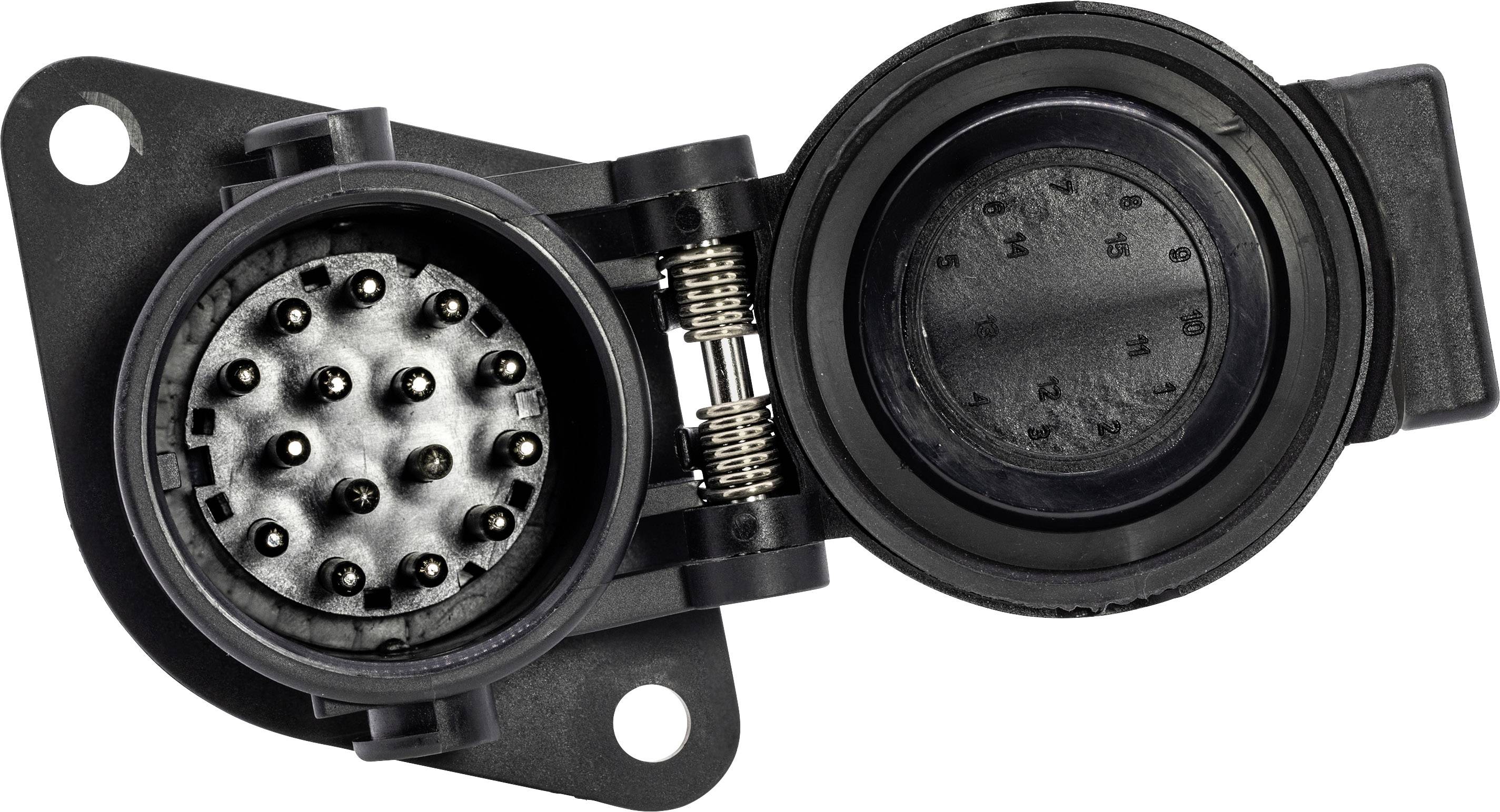

- Output 15-pin 24 V (ISO 12098)
- Maximum load: 85W per line
- Short-circuit proof: 20A for 5 seconds
Hints
The article shall be used as intended. Please pay attention to a corresponding fuse. Before driving, make sure that the trailer axle is free to move!
