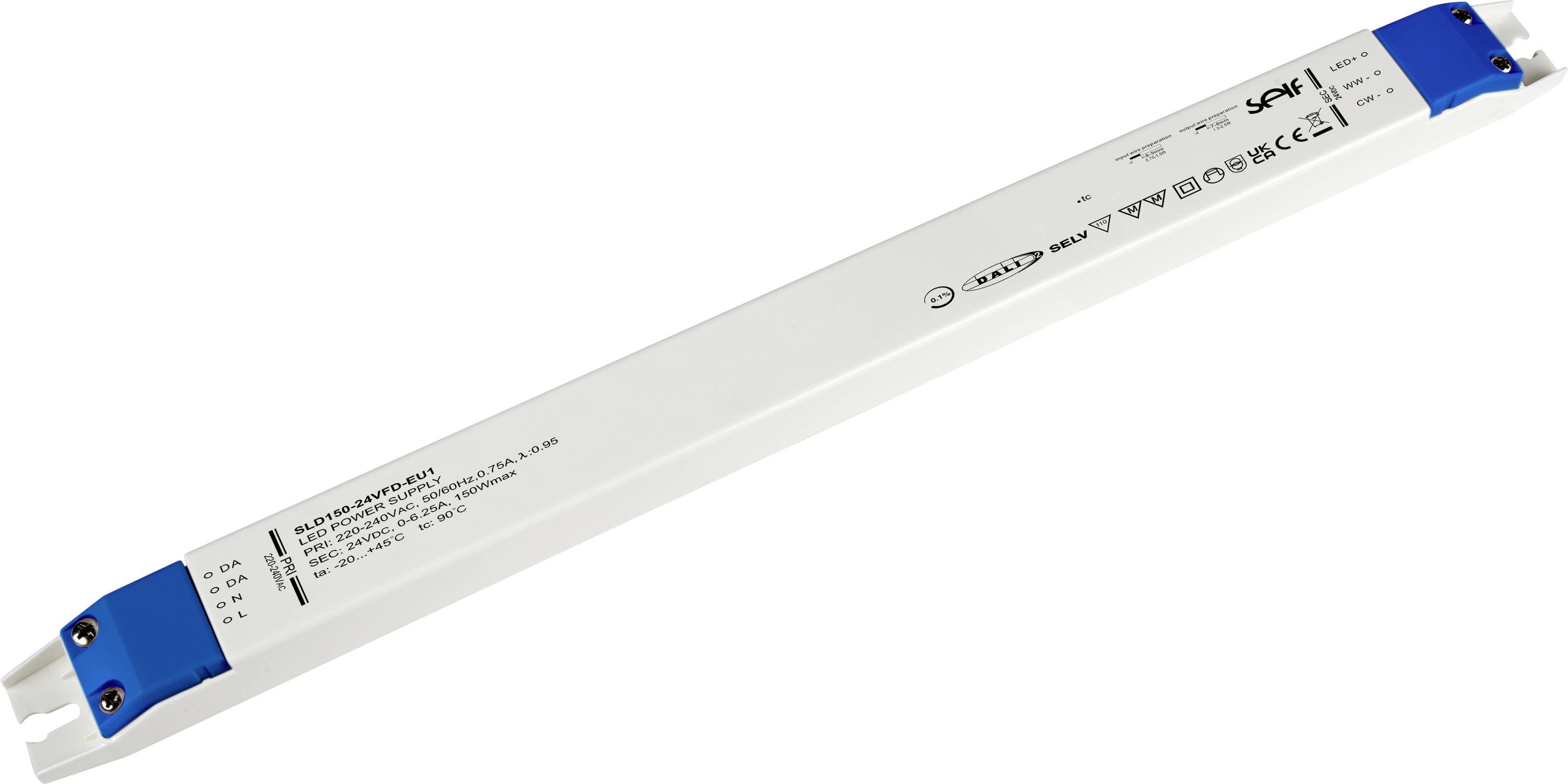

Self Electronics SLD150-24VFD-EU1 LED driver Constant voltage 150 W 24 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SELF SLD150-VFD-EU1 LED-SNT IP20 CLOSED
- Constant voltage
- 24 V
Technical specifications
- Efficiency 92.5 %
- Input current 0.75 A
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 402 x 30 x 22 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Operating voltage
230 V
- LED driver features
dimmable
IP20
- Connection
Screw terminal
- Max. power
150 W
- Input voltage (max.)
264 V
- Min. input voltage
198 V
- Power range
150 W (max)
- Width
30 mm
- Height
22 mm
- Length
402 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3435633 Self Electronics SLD150-24VFD-EU1 LED driver Constant voltage 150 W 24 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435633 Self Electronics SLD150-24VFD-EU1 LED driver Constant voltage 150 W 24 V dimmable 1 pc(s)
Description
This type of power supply is an exclusively developed stabilized power supply for LED lamps. Using constant voltage technology (CV), lamps with a constant voltage (24V/48V) are suitable, which are connected in parallel. It can also be dimmed from 0.1%-100% and color control (DT8) of CCT (CorrelatedColorTemperature) by DALI2.0. The built-in protective circuit switches the power supply off in case of faults such as interruption, short-circuit or overload. After troubleshooting, the power is automatically turned on again.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
