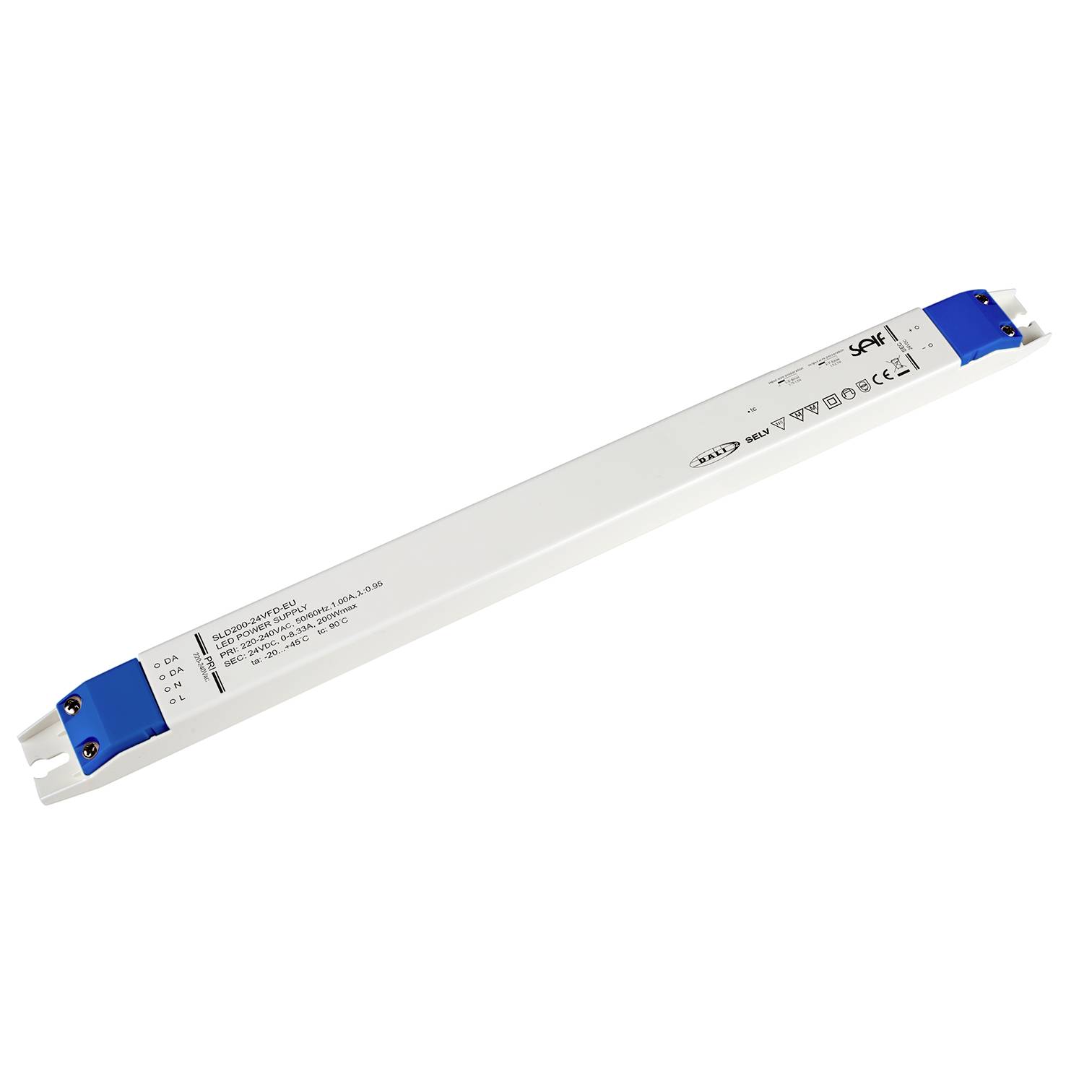

Self Electronics SLD200-24VFD-EU LED transformer Constant voltage 200 W 8.33 A 24 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP20 200W 24V/0.833A CV DALI 2.0
- Constant voltage
- 24 V
- 8.33 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Output voltage (max.)
24 V
- Test mark
EN 61347-1,EN 61347-2-13
- Max. output current
8.33 A
- Output current (max.) - rounded
8.33 A
- Protection class
II
- LED driver features
dimmable
- Connection
Screw terminal
- Max. power
200 W
- No. of outputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power range
200 W (max)
- Max. temperature
45 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2992585 Self Electronics SLD200-24VFD-EU LED transformer Constant voltage 200 W 8.33 A 24 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2992585 Self Electronics SLD200-24VFD-EU LED transformer Constant voltage 200 W 8.33 A 24 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2992585 Self Electronics SLD200-24VFD-EU LED transformer Constant voltage 200 W 8.33 A 24 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
