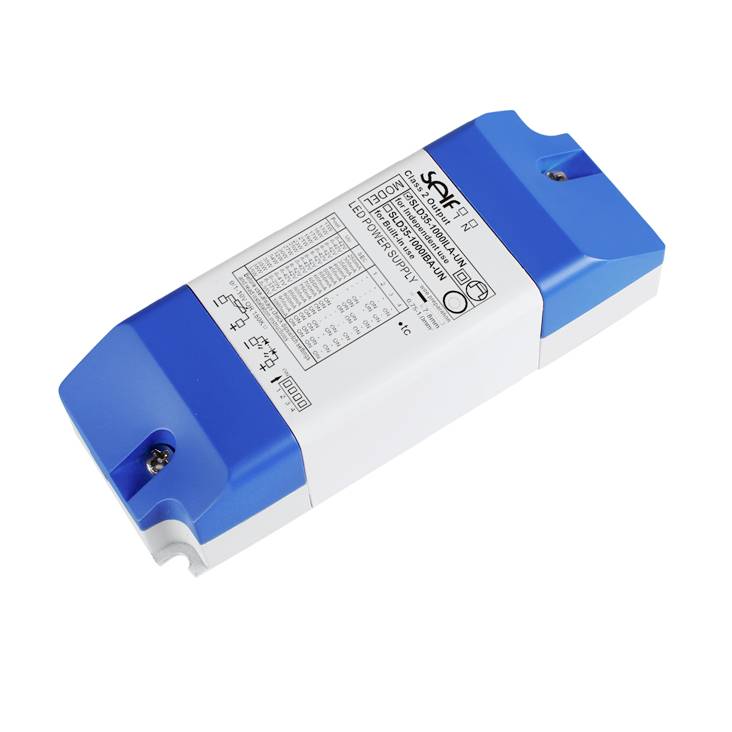

Self Electronics SLD35-1000ILA-UN1 LED transformer 35 W 1 A 8 - 42 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP20 8-42V/0.25-1A CC
- 8 - 42 V
- 1 A
Technical specifications
- Product type
LED transformer
- Output voltage (max.)
42 V
- Output voltage (min.)
8 V
- Test mark
EN 61347-1,EN 61347-2-13
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Protection class
II
- LED driver features
dimmable
- Connection
Plug & Clip
- Max. power
35 W
- No. of outputs
1 x
- Input voltage (max.)
277 V
- Min. input voltage
110 V
- Power range
35 W (max)
- Max. temperature
50 °C
- Min. temperature
-25 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2992592 Self Electronics SLD35-1000ILA-UN1 LED transformer 35 W 1 A 8 - 42 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2992592 Self Electronics SLD35-1000ILA-UN1 LED transformer 35 W 1 A 8 - 42 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2992592 Self Electronics SLD35-1000ILA-UN1 LED transformer 35 W 1 A 8 - 42 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
