Buy Self Electronics SLD40-900IL-ES LED driver Constant current 39.6 W 900 mA 22 - 44 V DC dimmable, Suitable for flammable

A rectangular LED power supply with blue ends and white labels, displaying technical specifications and connection details.

LED driver with blue end caps and technical specifications printed. Suitable for dimmable LED lighting systems.

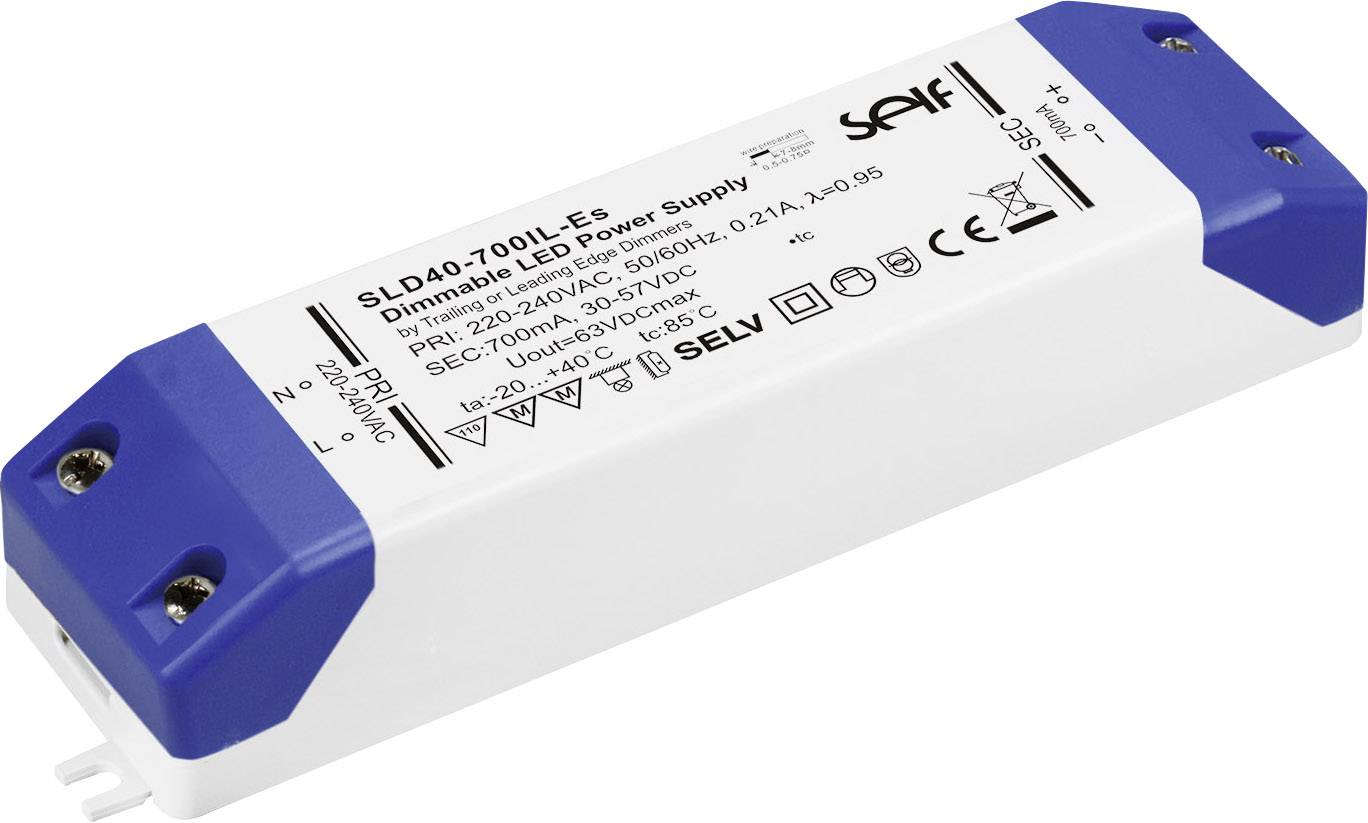

Rectangular white LED power supply with blue end caps. Model SLD40-700IL-E5 for dimmable LED lamps, Input 220-240V AC, Output 30-56V DC.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

SLD40-900IL-ES

Constant current
22 - 44 V DC
900 mA

Technical specifications

Product type: LED driver

Type: Constant current

Operating current: 210 mA

Dim: (L x W x H) 165 x 40 x 30 mm

Factory colour: Grey
Blue

Output voltage (max.): 44 V DC

Output voltage (min.): 22 V DC

Test mark: Getaktet

Max. output current: 900 mA

Output current (max.) - rounded: 900 mA

Operating voltage: 230 V AC

Protection class: II

LED driver features: dimmable
Suitable for flammable surfaces
Surge protection
Overvoltage

: IP20

Connection: Screw terminal

Max. power: 39.6 W

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 264 V AC

Min. input voltage: 198 V AC

Weight: 220 g

Power (min.): 19.8 W

Power range: 19.8 up to 39.6 W

Width: 40 mm

Height: 30 mm

Length: 165 mm

Max. temperature: 40 °C

Min. temperature: -20 °C

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Max. power

Output current (max.) - rounded

Output voltage (max.)

Output voltage (min.)

Self Electronics SLD40-900IL-ES LED driver Constant current 39.6 W 900 mA 22 - 44 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842715

This article

39.6 W

900 mA

44 V DC

22 V DC

Self Electronics SLD30-500IL-ES LED driver Constant current 30 W 500 mA 30 - 60 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842699

30 W

500 mA

60 V DC

30 V DC

Self Electronics SLD30-700IL-ES LED driver Constant current 30.8 W 700 mA 22 - 44 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842700

30.8 W

700 mA

44 V DC

22 V DC

Self Electronics SLD30-600IL-ES LED driver Constant current 30 W 600 mA 25 - 50 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842702

30 W

600 mA

50 V DC

25 V DC

Self Electronics SLD20-500IL-ES LED driver Constant current 20 W 500 mA 20 - 40 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842708

20 W

500 mA

40 V DC

20 V DC

Self Electronics SLD20-350IL-ES LED driver Constant current 18.9 W 350 mA 30 - 54 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842712

18.9 W

350 mA

54 V DC

30 V DC

Self Electronics SLD40-1050IL-ES LED driver Constant current 39.9 W 1050 mA 22 - 38 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842713

39.9 W

1.05 A

38 V DC

22 V DC

Self Electronics SLD40-700IL-ES LED driver Constant current 38.5 W 700 mA 30 - 55 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842714

38.5 W

700 mA

55 V DC

30 V DC

Self Electronics SLD20-700IL-ES LED driver Constant current 20.3 W 700 mA 15 - 29 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842719

20.3 W

700 mA

29 V DC

15 V DC

Self Electronics SLD40-800IL-ES LED driver Constant current 40 W 800 mA 25 - 50 V DC dimmable, Suitable for flammable surfaces, Surge protection, Overvoltage 1 pc(s)

Item no:1842720

40 W

800 mA

50 V DC

25 V DC

Documents & Downloads

Datasheet

Datasheet 1842715 Self Electronics SLD40-900IL-ES LED driver Constant current 39.6 W 900 mA 22 - 44 V DC dimmable, Suitable for flammable

User & Safety Instructions

User & Safety Instructions 1842715 Self Electronics SLD40-900IL-ES LED driver Constant current 39.6 W 900 mA 22 - 44 V DC dimmable, Suitable for flammable

Warranty Terms

Warranty Terms 1842715 Self Electronics SLD40-900IL-ES LED driver Constant current 39.6 W 900 mA 22 - 44 V DC dimmable, Suitable for flammable

Description

Features

IP20
Protected against overload, short-circuit, over-voltage and temperature protection
EN 61347-1, EN 61347-2-13, EN55015, EN61000-3-2, etc.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
