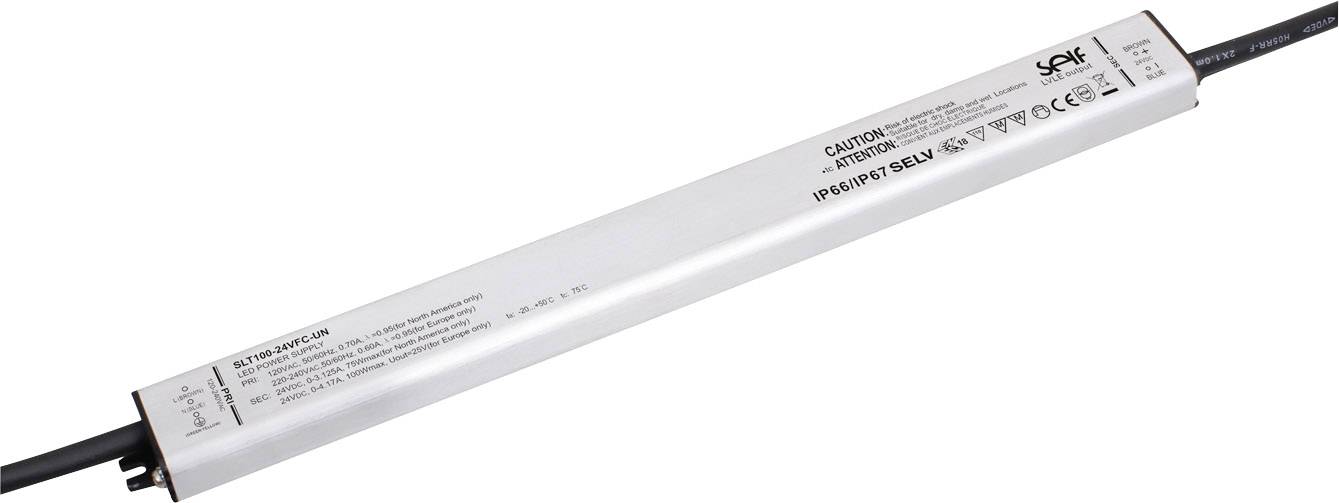

Self Electronics SLT100-24VFC-UN LED driver Constant voltage 100 W 4.17 A 24 V DC Suitable for flammable surfaces, Appro
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Only 6 Piece(s) available
Highlights & Details
SELF ELECTRONICS LED SWITCHED-MODE POWER SUPPLY SLT100-24VFC-UN
- Constant voltage
- 24 V DC
- 4.17 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 340 x 30 x 16.5 mm
- Factory colour
Silver
- Output voltage (max.)
24 V DC
- Max. output current
4.17 A
- Output current (max.) - rounded
4.17 A
- Operating voltage
240 V AC
120 V AC
- Protection class
I
- LED driver features
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
Surge protection
Overvoltage
not dimmable
IP67
- Connection
Open end cable
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
108 V AC
- Weight
230 g
- Power range
100 W (max)
- Type
Pulsed
- Width
30 mm
- Height
16.5 mm
- Length
340 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1947720 Self Electronics SLT100-24VFC-UN LED driver Constant voltage 100 W 4.17 A 24 V DC Suitable for flammable surfaces, Appro
User & Safety Instructions
User & Safety Instructions 1947720 Self Electronics SLT100-24VFC-UN LED driver Constant voltage 100 W 4.17 A 24 V DC Suitable for flammable surfaces, Appro
Warranty Terms
Warranty Terms 1947720 Self Electronics SLT100-24VFC-UN LED driver Constant voltage 100 W 4.17 A 24 V DC Suitable for flammable surfaces, Appro
Description
Features
- Independant operating device
- Protection class I, SELV output
- Constant voltage
- IP67
- Protected against overload, short circuit, overvoltage and temperature protection
- EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
