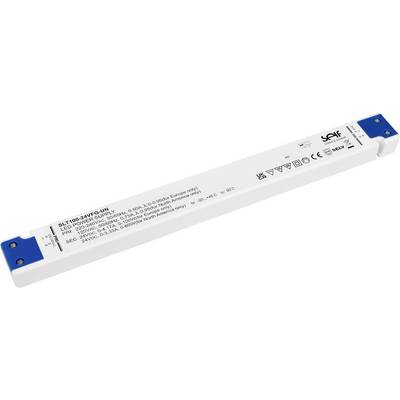

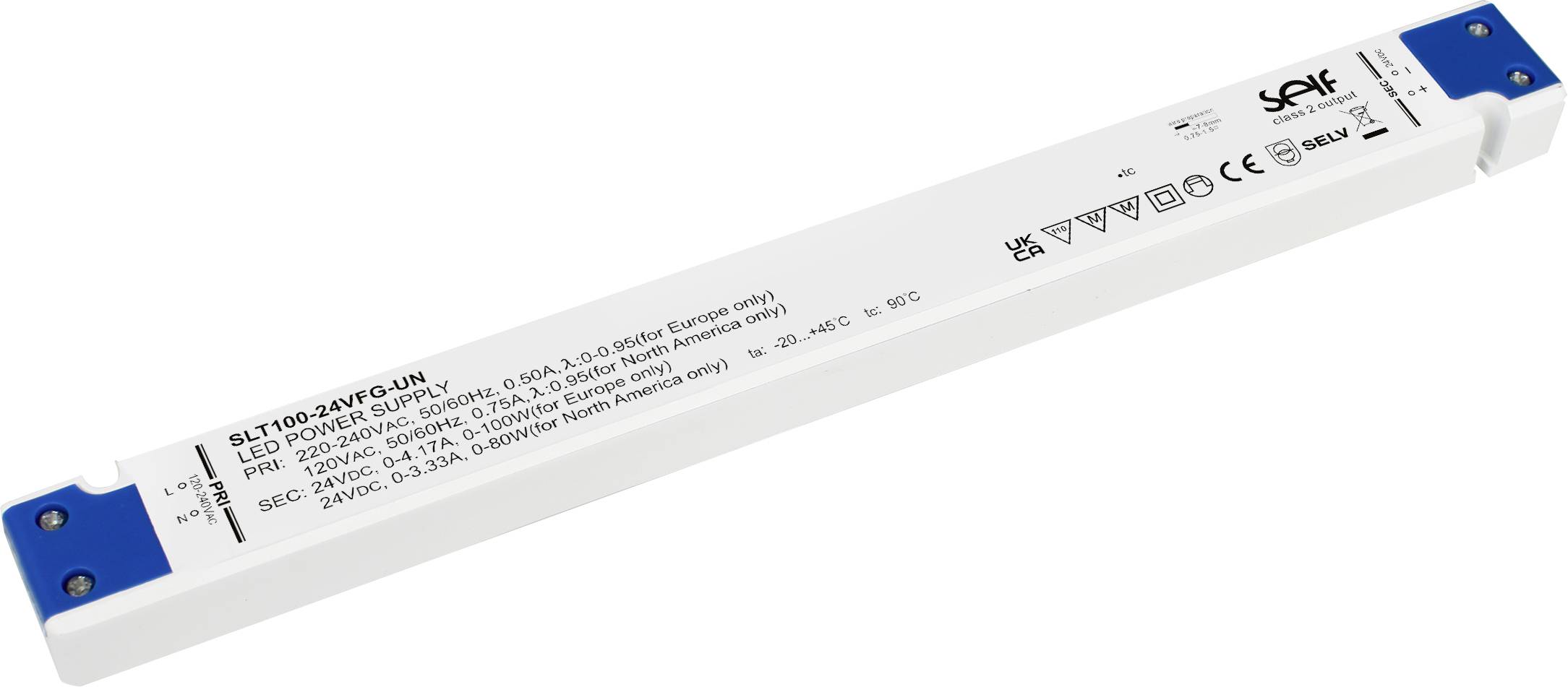

Self Electronics SLT100-24VFG-UN3 LED transformer Constant voltage 100.0 W 24 V DC Surge protection, Overvoltage, PFC ci
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLT100-24VFG-UN3
- Constant voltage
- 24 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 298.0 x 30.0 x 16.5 mm
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
CE.ENEC.UL
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
Surge protection
Overvoltage
PFC circuit
IP20
- Connection
Screw terminal
- Max. power
100.0 W
- No. of outputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
120 V
- Weight
215.0 g
- Power range
100.0 W (max)
- Width
30.0 mm
- Height
16.5 mm
- Length
298.0 mm
No
- Operating temperature (max.)
45 °C
- Operating temperature (min.)
-20 °C
- Output voltage (nominal)
24 V
- Output current
4.17 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3666274 Self Electronics SLT100-24VFG-UN3 LED transformer Constant voltage 100.0 W 24 V DC Surge protection, Overvoltage, PFC ci
User & Safety Instructions
User & Safety Instructions 3666274 Self Electronics SLT100-24VFG-UN3 LED transformer Constant voltage 100.0 W 24 V DC Surge protection, Overvoltage, PFC ci
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
