Self Electronics SLT160-700IL-EU LED driver Constant current 160 W 350 - 700 mA 120 - 228 V DC Suitable for flammable su
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Highlights & Details

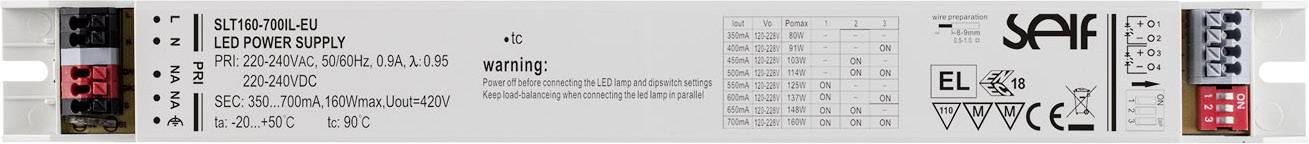

SELF ELECTRONICS LED SWITCHED-MODE POWER SUPPLY SLT160-700IL-EU
- Constant current
- 120 - 228 V DC
- 350 - 700 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 280 x 30 x 22 mm
- Factory colour
Grey
- Output voltage (max.)
228 V DC
- Output voltage (min.)
120 V DC
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
Suitable for flammable surfaces
Approved for use on furniture
not dimmable
adjustable
Surge protection
Overvoltage
IP20
- Connection
Push-in connector
- Max. power
160 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
350 mA
- Input voltage (max.)
264 V AC
- Min. input voltage
198 V AC
- Weight
237 g
- Power (min.)
80 W
- Power range
80 up to 160 W
- Type
Pulsed
- Width
30 mm
- Height
22 mm
- Length
280 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1947712 Self Electronics SLT160-700IL-EU LED driver Constant current 160 W 350 - 700 mA 120 - 228 V DC Suitable for flammable su
User & Safety Instructions
User & Safety Instructions 1947712 Self Electronics SLT160-700IL-EU LED driver Constant current 160 W 350 - 700 mA 120 - 228 V DC Suitable for flammable su
Warranty Terms
Warranty Terms 1947712 Self Electronics SLT160-700IL-EU LED driver Constant current 160 W 350 - 700 mA 120 - 228 V DC Suitable for flammable su
Description
Features
- Independant operating device
- Non-insulated design
- Flicker-free design
- Constant current
- IP20
- Protected against overload, short circuit, overvoltage and temperature protection
- EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
