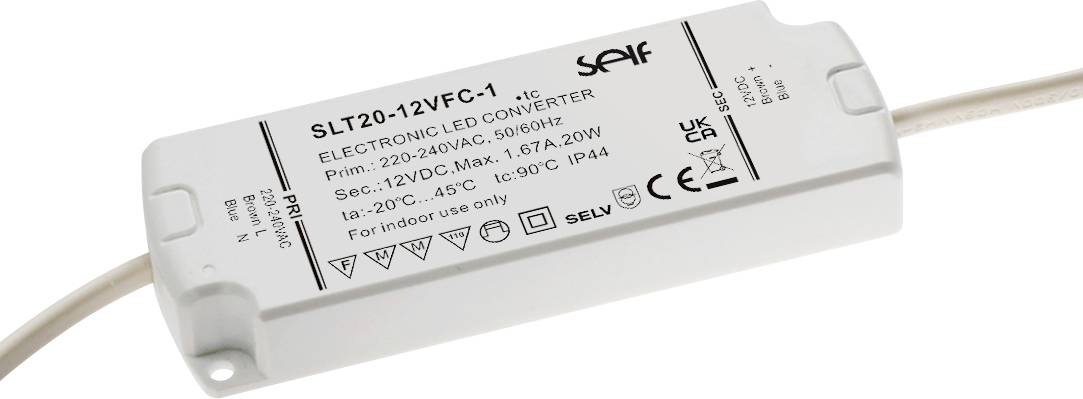

Self Electronics SLT20-12VFC-1 LED driver 20 W 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLT20-12VFC-1
- 12 V
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 121 x 45 x 16 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
IP44
- Connection
Braid
- Max. power
20 W
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power range
20 W (max)
- Width
45 mm
- Height
16 mm
- Length
121 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3435637 Self Electronics SLT20-12VFC-1 LED driver 20 W 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435637 Self Electronics SLT20-12VFC-1 LED driver 20 W 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
