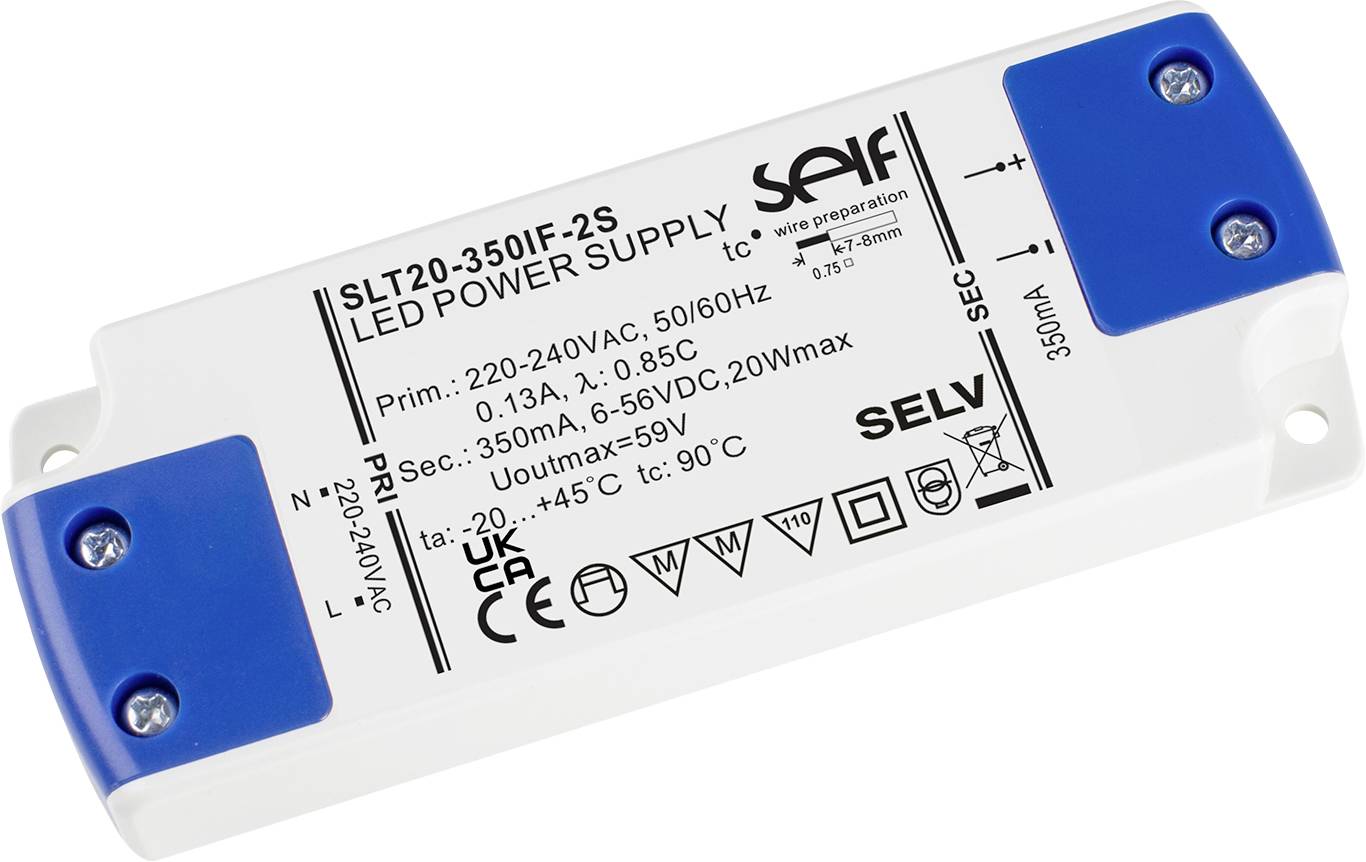

Self Electronics SLT20-350IF-2S LED transformer 20 W 0.35 A 6 - 56 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLT20-350IF-2S
- 6 - 56 V
- 0.35 A
Technical specifications
- Product type
LED transformer
- Output voltage (max.)
56 V
- Output voltage (min.)
6 V
- Test mark
EN 61347-1,EN 61347-2-13
- Max. output current
0.35 A
- Output current (max.) - rounded
350 mA
- Protection class
II
- LED driver features
not dimmable
- Connection
Screw terminal
- Max. power
20 W
- No. of outputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power range
20 W (max)
- Max. temperature
45 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2992721 Self Electronics SLT20-350IF-2S LED transformer 20 W 0.35 A 6 - 56 V not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2992721 Self Electronics SLT20-350IF-2S LED transformer 20 W 0.35 A 6 - 56 V not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2992721 Self Electronics SLT20-350IF-2S LED transformer 20 W 0.35 A 6 - 56 V not dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
