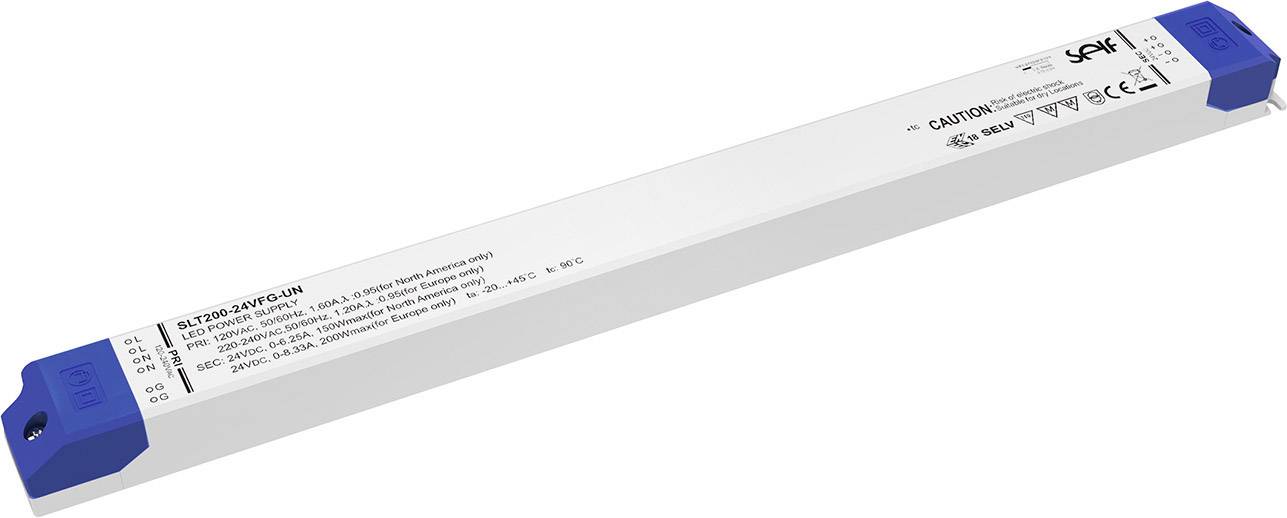

Self Electronics SLT200-24VFG-UN LED driver Constant voltage 200 W 0 A - 8330 mA 24 V DC not dimmable, Suitable for flam
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SELF ELECTRONICS LED SWITCHED-MODE POWER SUPPLIES SLT200-24VFG-UN
- Constant voltage
- 24 V DC
- 0 A - 8330 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 369 x 30 x 22 mm
- Factory colour
Grey
Blue
- Output voltage (max.)
24 V DC
- Test mark
MM · SELV · ENEC
- Max. output current
8330 mA
- Output current (max.) - rounded
8.33 A
- Operating voltage
115 V AC
230 V AC
- Protection class
II
- LED driver features
not dimmable
Suitable for flammable surfaces
Approved for use on furniture
Surge protection
Overvoltage
IP20
- Connection
Screw terminal
- Max. power
200 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 A
- Input voltage (max.)
264 V AC
132 V AC
280 V DC
- Min. input voltage
198 V AC
108 V AC
176 V DC
- Weight
400 g
- Power range
200 W (max)
- Type
Pulsed
- Width
30 mm
- Height
22 mm
- Length
369 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2176621 Self Electronics SLT200-24VFG-UN LED driver Constant voltage 200 W 0 A - 8330 mA 24 V DC not dimmable, Suitable for flam
User & Safety Instructions
User & Safety Instructions 2176621 Self Electronics SLT200-24VFG-UN LED driver Constant voltage 200 W 0 A - 8330 mA 24 V DC not dimmable, Suitable for flam
Warranty Terms
Warranty Terms 2176621 Self Electronics SLT200-24VFG-UN LED driver Constant voltage 200 W 0 A - 8330 mA 24 V DC not dimmable, Suitable for flam
Description
Features
- Independant operating device
- Protection class II, SELV output
- Constant voltage
- IP20
- Protected against overload, short circuit, overvoltage and temperature protection
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
