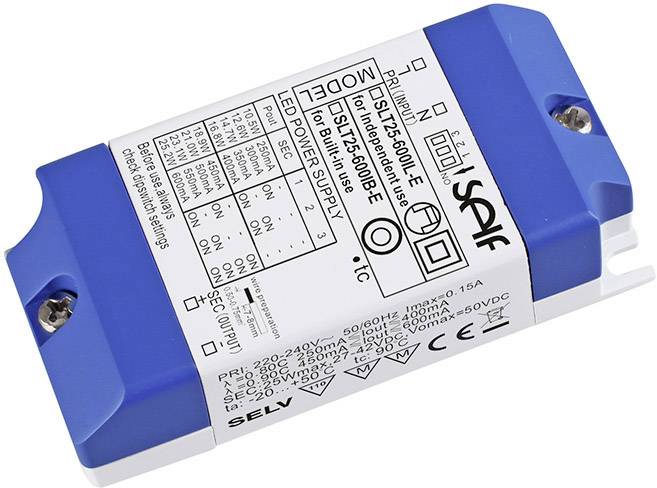

Self Electronics SLT25-600IL-E LED driver Constant current 25 W 250 - 600 mA 27 - 42 V DC not dimmable, Suitable for fla
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SELF ELECTRONICS LED SWITCHED-MODE POWER SUPPLIES SLT25-600IL-E.
- Constant current
- 27 - 42 V DC
- 250 - 600 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 85.3 x 41 x 22 mm
- Factory colour
Grey
Blue
- Output voltage (max.)
42 V DC
- Output voltage (min.)
27 V DC
- Test mark
MM · SELV · ENEC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
not dimmable
Suitable for flammable surfaces
Approved for use on furniture
Surge protection
Overvoltage
IP20
- Connection
Screw terminal
- Max. power
25 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
250 mA
- Input voltage (max.)
264 V AC
- Min. input voltage
198 V AC
- Weight
80 g
- Power range
25 W (max)
- Type
Pulsed
- Width
41 mm
- Height
22 mm
- Length
85.3 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2176635 Self Electronics SLT25-600IL-E LED driver Constant current 25 W 250 - 600 mA 27 - 42 V DC not dimmable, Suitable for fla
User & Safety Instructions
User & Safety Instructions 2176635 Self Electronics SLT25-600IL-E LED driver Constant current 25 W 250 - 600 mA 27 - 42 V DC not dimmable, Suitable for fla
Warranty Terms
Warranty Terms 2176635 Self Electronics SLT25-600IL-E LED driver Constant current 25 W 250 - 600 mA 27 - 42 V DC not dimmable, Suitable for fla
Description
Features
- Independant operating device
- Protection class II, SELV output
- Constant current selectable via DIP switch
- IP20
- protected against overload, short circuit, overvoltage and temperature protection
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
