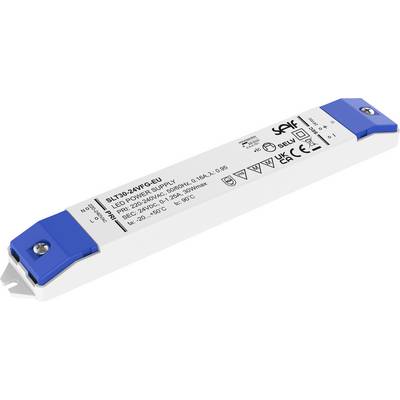

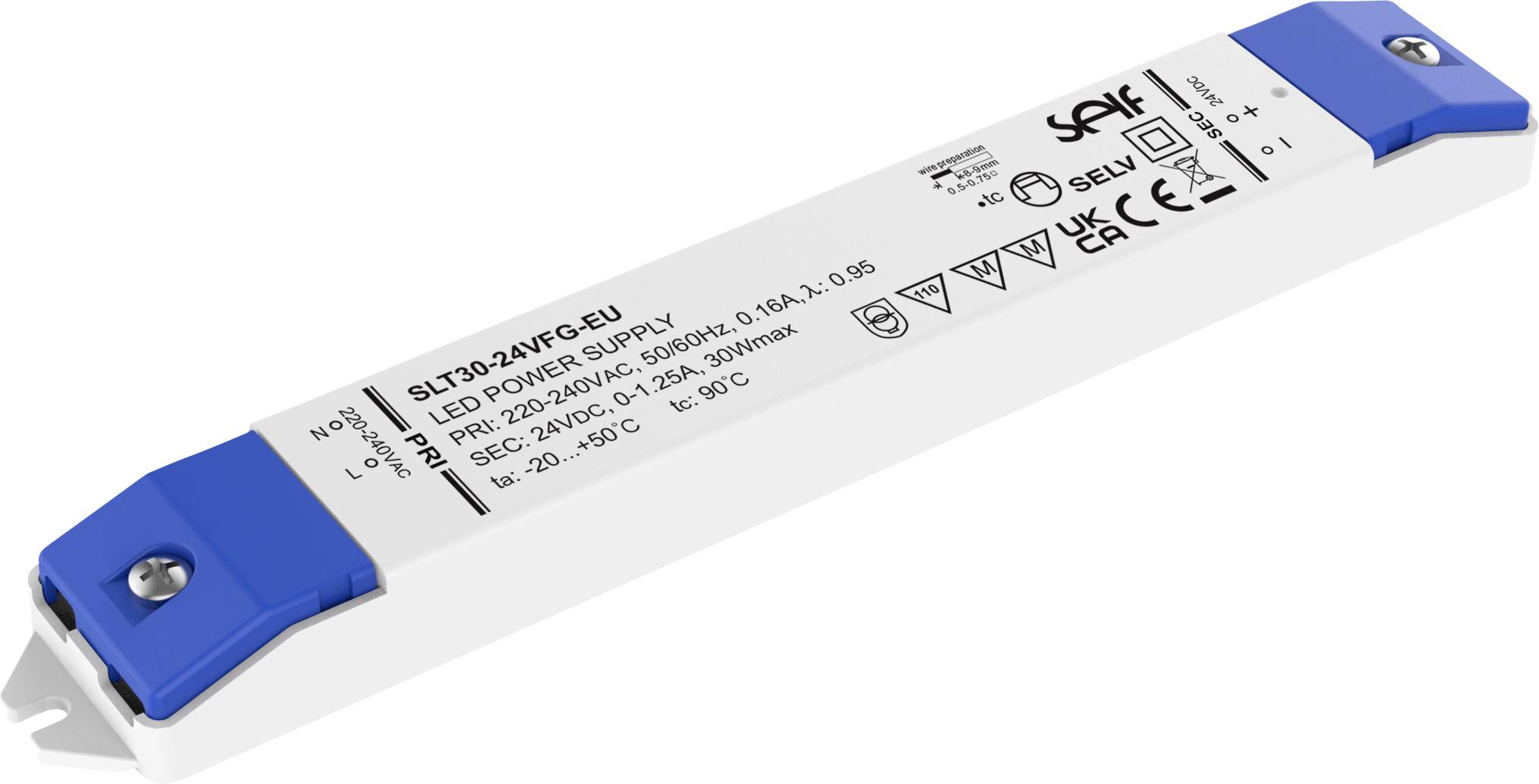

Self Electronics SLT30-24VFG-EU LED transformer Constant voltage 30.0 W 24 V DC Overvoltage, Surge protection, PFC circu
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLT30-24VFG-EU
- Constant voltage
- 24 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 171.0 x 32.0 x 16.5 mm
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
CE.UKCA
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
Overvoltage
Surge protection
PFC circuit
IP20
- Connection
Screw terminal
- Max. power
30.0 W
- No. of outputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
120.0 g
- Power range
30.0 W (max)
- Width
32.0 mm
- Height
16.5 mm
- Length
171.0 mm
No
- Operating temperature (max.)
50 °C
- Operating temperature (min.)
-20 °C
- Output voltage (nominal)
24 V
- Output current
1.25 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3666276 Self Electronics SLT30-24VFG-EU LED transformer Constant voltage 30.0 W 24 V DC Overvoltage, Surge protection, PFC circu
User & Safety Instructions
User & Safety Instructions 3666276 Self Electronics SLT30-24VFG-EU LED transformer Constant voltage 30.0 W 24 V DC Overvoltage, Surge protection, PFC circu
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
