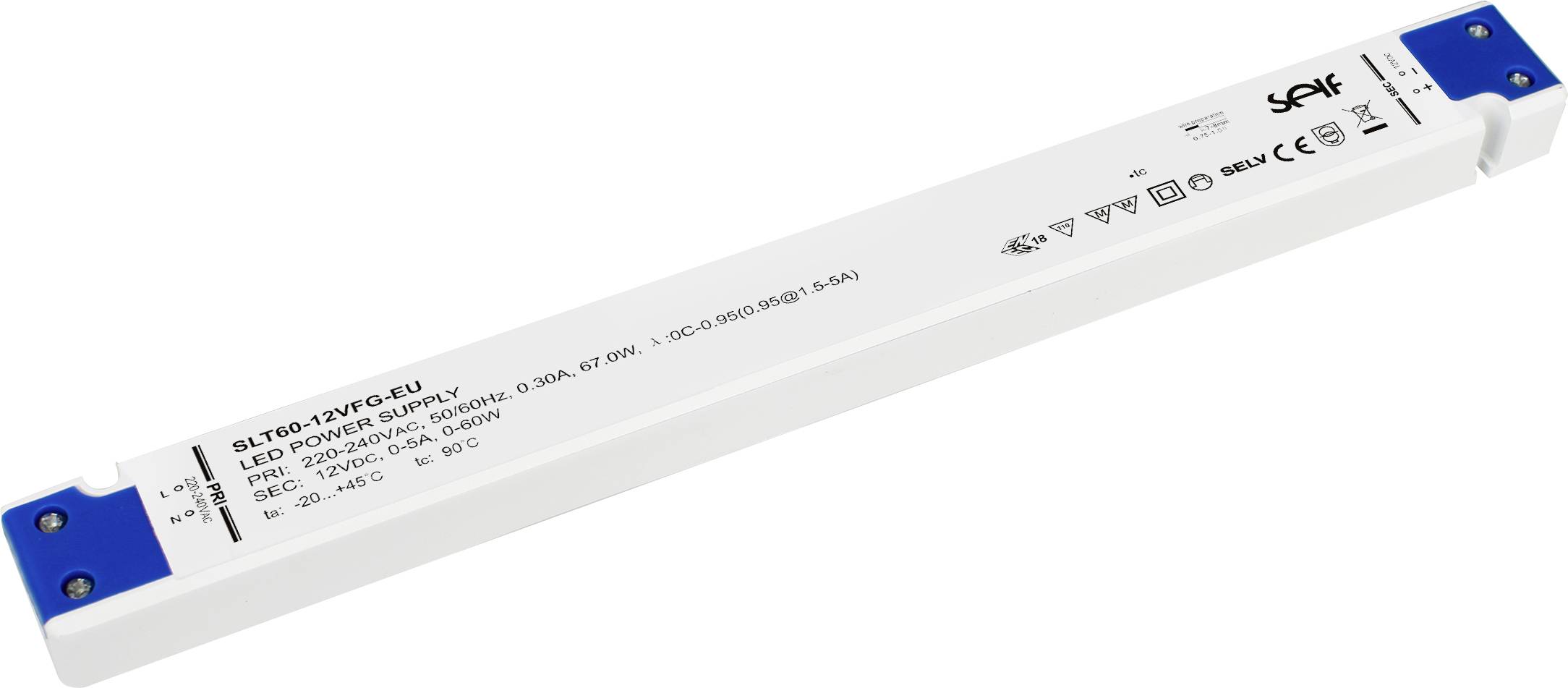

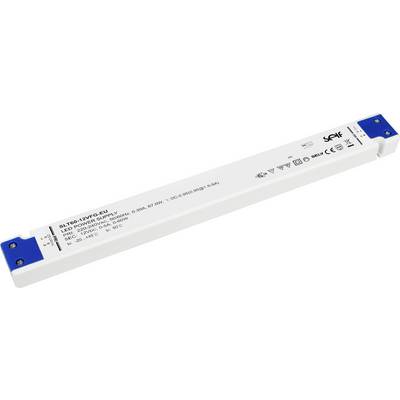

Self Electronics SLT60-12VFG-EU LED transformer Constant voltage 60.0 W 12 V DC PFC circuit 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLT60-12VFG-EU
- Constant voltage
- 12 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 298.0 x 30.0 x 16.0 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Test mark
CE
- Operating voltage
230 V
- LED driver features
PFC circuit
IP20
- Connection
Screw terminal
- Max. power
60.0 W
- No. of outputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
162.0 g
- Power range
60.0 W (max)
- Width
30.0 mm
- Height
16.0 mm
- Length
298.0 mm
No
- Operating temperature (max.)
45 °C
- Operating temperature (min.)
-20 °C
- Output voltage (nominal)
12 V
- Output current
5 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3666277 Self Electronics SLT60-12VFG-EU LED transformer Constant voltage 60.0 W 12 V DC PFC circuit 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3666277 Self Electronics SLT60-12VFG-EU LED transformer Constant voltage 60.0 W 12 V DC PFC circuit 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
