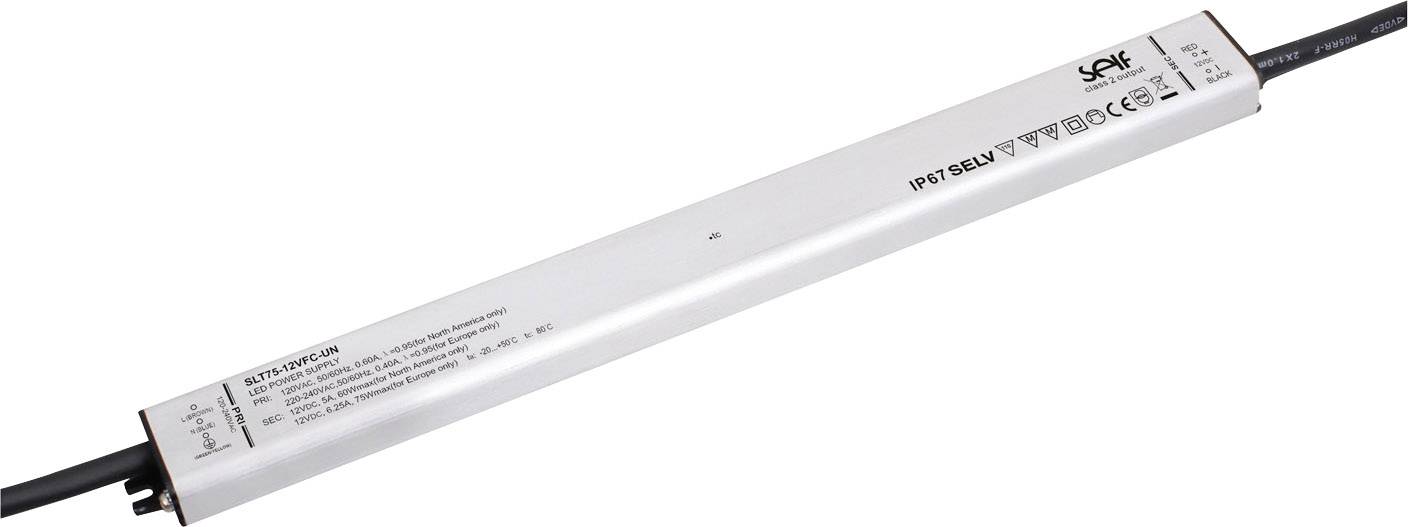

Self Electronics SLT75-12VFC-UN LED transformer, LED driver Constant voltage 75 W 6.25 A 12 V DC Suitable for flammable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLT75-12VFC-UN
- Constant voltage
- 12 V DC
- 6.25 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 333 x 30 x 16.5 mm
- Factory colour
Aluminium
- Output voltage (max.)
12 V DC
- Max. output current
6.25 A
- Output current (max.) - rounded
6.25 A
- Operating voltage
230 V AC
- Protection class
I
- LED driver features
Suitable for flammable surfaces
not dimmable
Surge protection
Overvoltage
IP67
- Connection
Open end cable
- Max. power
75 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
108 V AC
- Weight
230 g
- Power range
75 W (max)
- Width
30 mm
- Height
16.5 mm
- Length
333 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1842717 Self Electronics SLT75-12VFC-UN LED transformer, LED driver Constant voltage 75 W 6.25 A 12 V DC Suitable for flammable
User & Safety Instructions
User & Safety Instructions 1842717 Self Electronics SLT75-12VFC-UN LED transformer, LED driver Constant voltage 75 W 6.25 A 12 V DC Suitable for flammable
Warranty Terms
Warranty Terms 1842717 Self Electronics SLT75-12VFC-UN LED transformer, LED driver Constant voltage 75 W 6.25 A 12 V DC Suitable for flammable
Description
With the recording of the SLT-series of super-slim LED power supply of self-electronics we offer a solution for applications that require a compact design LED. The particularly flat profile from 14 to 16 mm height enables easy installation, for example in confined spaces as well as in and behind cabinets. The power supplies are suitable for mounting on materials with unknown ignition properties (MM) and can be used as an independent operating devices can also be used outside of lights. The output is SELV-compliant and the power supply unit is against interruption, short circuit, overload and overheating protection. After clearing a fault cause is an automatic restart. The power supplies meet the relevant EMC and safety standards and have an operating expectancy of up to 50,000 hours at a housing temperature of 85 °C.
Currently, The SLT-series from 6 to 100 watt than 12V and 24V constant voltage version as well as from 6 to 20 watts as a constant current version is available.
This text is machine translated.
Currently, The SLT-series from 6 to 100 watt than 12V and 24V constant voltage version as well as from 6 to 20 watts as a constant current version is available.
This text is machine translated.
Features
- Independent operating device
- Protection class I, SELV output
- Constant voltage
- IP67
- Protected against overload, short-circuit, over-voltage and temperature protection
- EN 61347-1, EN 61347-2-13, EN55015, EN61000-3-2, etc.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
