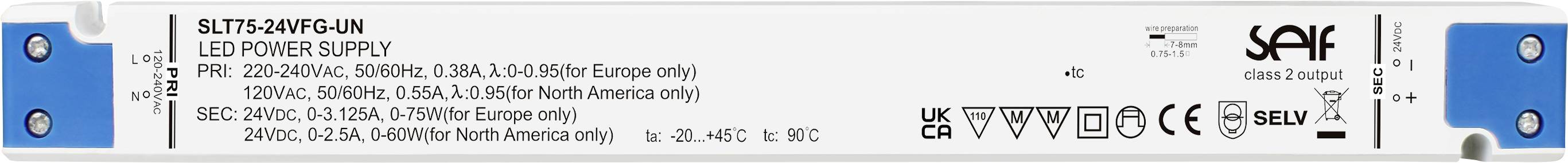

Self Electronics SLT75-24VFG-UN LED transformer Constant voltage 75.0 W 24 V DC Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLT75-24VFG-UN
- Constant voltage
- 24 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 298.0 x 30.0 x 16.5 mm
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
EN.CE.ENEC.UL. MM-Zeichen. SELV
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Screw terminal
- Max. power
75.0 W
- No. of outputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
120 V
- Weight
155.0 g
- Power range
75.0 W (max)
- Width
30.0 mm
- Height
16.5 mm
- Length
298.0 mm
No
- MTBF
50.000 h
- Operating temperature (max.)
45 °C
- Operating temperature (min.)
-20 °C
- Output voltage (nominal)
24 V
- Output current
3.13 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3666280 Self Electronics SLT75-24VFG-UN LED transformer Constant voltage 75.0 W 24 V DC Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3666280 Self Electronics SLT75-24VFG-UN LED transformer Constant voltage 75.0 W 24 V DC Surge protection 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
