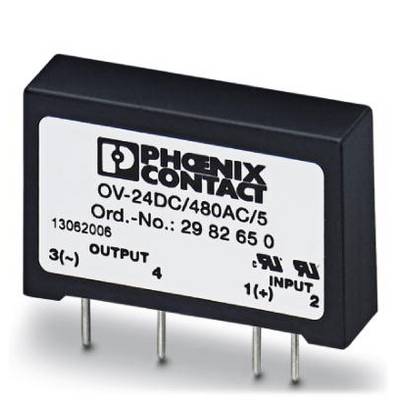

Semi-conductor relay OV-24DC/480AC/5 2982650 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Package
Product type
SSR
Control voltage (min.)
24 V DC
Control voltage (max.)
24 V DC
Switching voltage (max.)
530 V AC
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 25.63 / piece)
€ 256.30
plus VAT.
14-day return policy included
Highlights & Details
Semi-conductor relay OV-24DC/480AC/5
- Industrial packaging, pack of 10
Technical specifications
- Switch-on current: (10 ms) 520 A
- Packaging type
Package
- Product type
SSR
- Type
OV-24DC/480AC/5
- Connection
Print
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Surge current (max.)
520 A
- Switching voltage (min.)
12 V AC
- Switching voltage (max.)
530 V AC
- Current load (max.)
5 A
- Output voltage (min.)
12 V AC
- Output voltage (max.)
530 V AC
- Max. output current
5 A
- Min. temperature
-20 °C
- Max. temperature
+70 °C
- Width
10.5 mm
- Height
43 mm
- Depth
25.4 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 708295 Semi-conductor relay OV-24DC/480AC/5 2982650 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 708295 Semi-conductor relay OV-24DC/480AC/5 2982650 Phoenix Contact
Description
Solid-state relay, for signal amplification and isolation of the control and load circuits, can be plugged in the solderable plug-in bases SIM-AMS or with PCB connection for mounting directly onto the PCB, input: 4-32 V DC, output: 12-530 V AC/ 5 A
