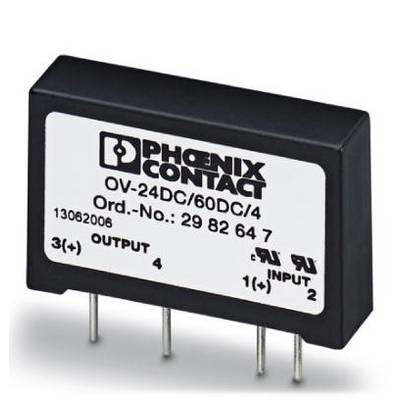

Semi-conductor relay OV-24DC/ 60DC/4 2982647 Phoenix Contact
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
4.25 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
60 V DC
Current load (max.)
4 A
Datasheet (PDF)
56 Set(s)
Sales and shipping:
Number (Package size 10 pc(s))
Total (€ 22.27 / piece)
€ 315.13
-29 %
€
Highlights & Details
Semi-conductor relay OV-24DC/ 60DC/4
- Industrial packaging, pack of 10
Technical specifications
- Product type
SSR
- Type
OV-24DC/ 60DC/4
- Control voltage (min.)
4.25 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
4.25 - 32 V DC
- Switching voltage (min.)
1 V DC
- Switching voltage (max.)
60 V DC
- Current load (max.)
4 A
- Min. temperature
-20 °C
- Max. temperature
+80 °C
- Width
10.5 mm
- Height
43 mm
- Depth
25.4 mm
- Industrial packaging
Yes
- Content
10 pc(s)
Documents & Downloads
Datasheet
Datasheet 708662 Semi-conductor relay OV-24DC/ 60DC/4 2982647 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 708662 Semi-conductor relay OV-24DC/ 60DC/4 2982647 Phoenix Contact
Description
Solid-state relay, for signal amplification and isolation of the control and load circuits, can be plugged in the solderable plug-in bases SIM-AMS or with PCB connection for mounting directly onto the PCB, input: 4.25-32 V DC, output: 1-60 V DC/4 A
