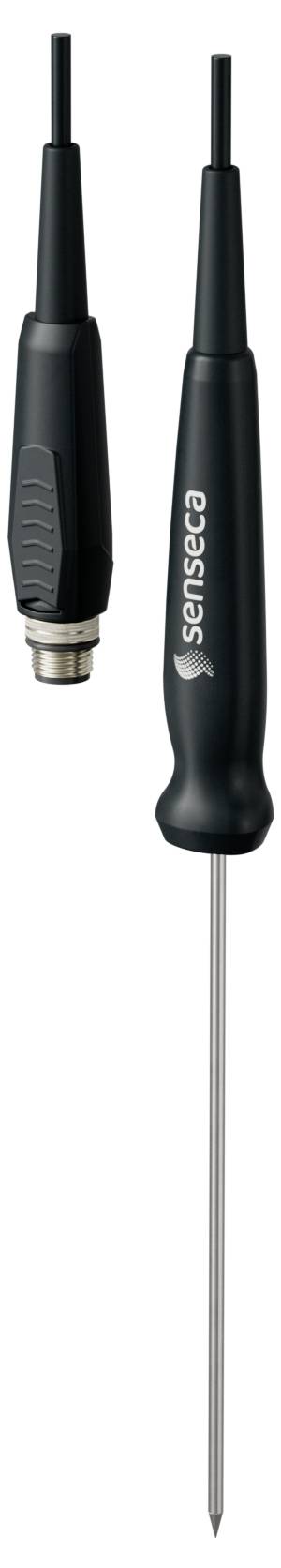

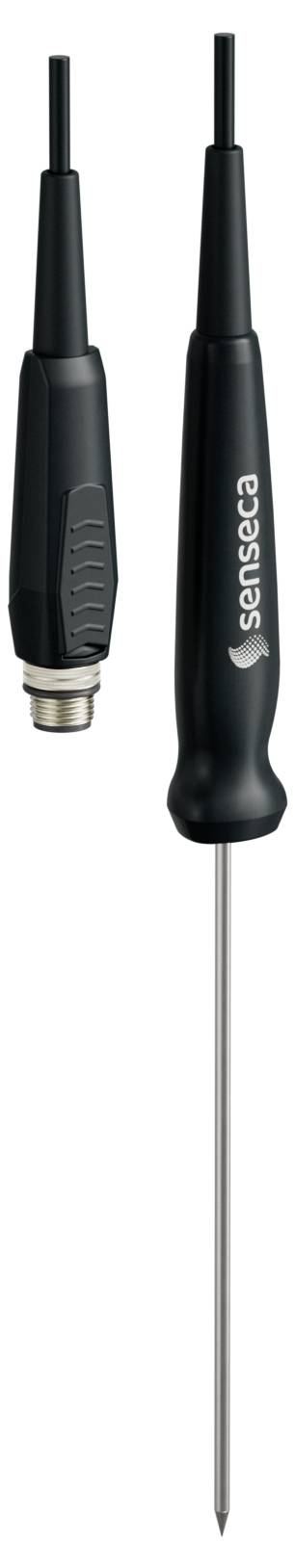

Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Highlights & Details
Senseca DX 115 i3 150 L02 Digital Pt100 probe, large handle, high precision (e.g. for PRO D5x)
- • 2-point factory calibration
- • Changeable
- • Fast and precise
- • Ergonomic handle with high operating temperature up to 120 °C.
- • Robust for many years of professional use
- • Easy to clean
- • Water resistant according to IP 67
- • Optional DAkkS/ACCREDIA certification available
Technical specifications
- Accuracy - ±0.05 °C (t = 0 °C), ±0.1 °C (0 °C ≤ t ≤ 100 °C), ±0.2 °C (-50 °C ≤ t less than 0 °C, 100 less than t ±250 °C), ≤ 0.3 °C (t = remaining range)
- OUTPUT - UART (TTL 3.3V)
Manufacturer's standards (no certificate)
- Reading category
Ohne Messkategorie
- Sensor type
Pt100
- Type
DX 115-I3-150-L02
- Basic accuracy
0.1 %
- Accuracy ± °C
0.05 °C
- Resolution (temperature)
0.01 °C
- Response time
3 s
- Probe length
150 mm
- Max. temperature
+250 °C
- Min. temperature
-50 °C
- Weight
273 g
- Product type
Needle probe
Documents & Downloads
Datasheet
Datasheet 3410756 Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100
User & Safety Instructions
User & Safety Instructions 3410756 Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100
Description
DX 115 is a highly precise, digital, wire wound Pt100 temperature sensor for the PRO D01 / PRO D05 hand-held measuring devices.
The sensor is factory calibrated and is immediately ready for use. Optionally, it can be supplied with a DAkkS/ACCREDIA calibration certificate.
The calibration data is stored in the sensor so that it can be exchanged without recalibration.
The digitization electronics integrated in the plug housing minimizes the effects of temperature,
Including 4-wire technology and thermal voltage compensation.
The user can adjust the sensor in two points (offset and slope) or by setting R0 (sensor resistance at 0°C) and the Callendar Van Dusen parameters. Supplied with 1, 2 or 5 m cable with 4-pin M12 connector.
This text is machine translated.
The sensor is factory calibrated and is immediately ready for use. Optionally, it can be supplied with a DAkkS/ACCREDIA calibration certificate.
The calibration data is stored in the sensor so that it can be exchanged without recalibration.
The digitization electronics integrated in the plug housing minimizes the effects of temperature,
Including 4-wire technology and thermal voltage compensation.
The user can adjust the sensor in two points (offset and slope) or by setting R0 (sensor resistance at 0°C) and the Callendar Van Dusen parameters. Supplied with 1, 2 or 5 m cable with 4-pin M12 connector.
This text is machine translated.
Scope of delivery
- Penetration probe Ø3 mm
- 150 mm
- 2 m PVC cable, -20 ... +105 °C
