Senseca DX 310-00 Temperature sensor Calibrated to (DAkkS standards) -50 up to +125 °C 0 up to 100 RH Sensor type Pt100
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DAkkS DX 310 digital humidity/temperature sensor (e.g. for PRO D5x)
- Sensor type Pt100
- -50 up to +125 °C
Technical specifications
- Product type
Temperature sensor
- Sensor type
Pt100
- Temperature reading range (min.)
-50 °C
- Temperature reading range (max.)
+125 °C
- Dim
(Ø) 14 mm
- Probe length
142 mm
DAkkS standards
- Weight
76 g
- Calibration service
20 g
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range
-50 up to +125 °C
- Humidity reading accuracy
1.2 %
- Temperature accuracy
0.1 °C
- Reading category
Ohne Messkategorie
- (Ø)
14 mm
Documents & Downloads
Datasheet
Datasheet 3220250 Senseca DX 310-00 Temperature sensor Calibrated to (DAkkS standards) -50 up to +125 °C 0 up to 100 RH Sensor type Pt100
User & Safety Instructions
User & Safety Instructions 3220250 Senseca DX 310-00 Temperature sensor Calibrated to (DAkkS standards) -50 up to +125 °C 0 up to 100 RH Sensor type Pt100
Description

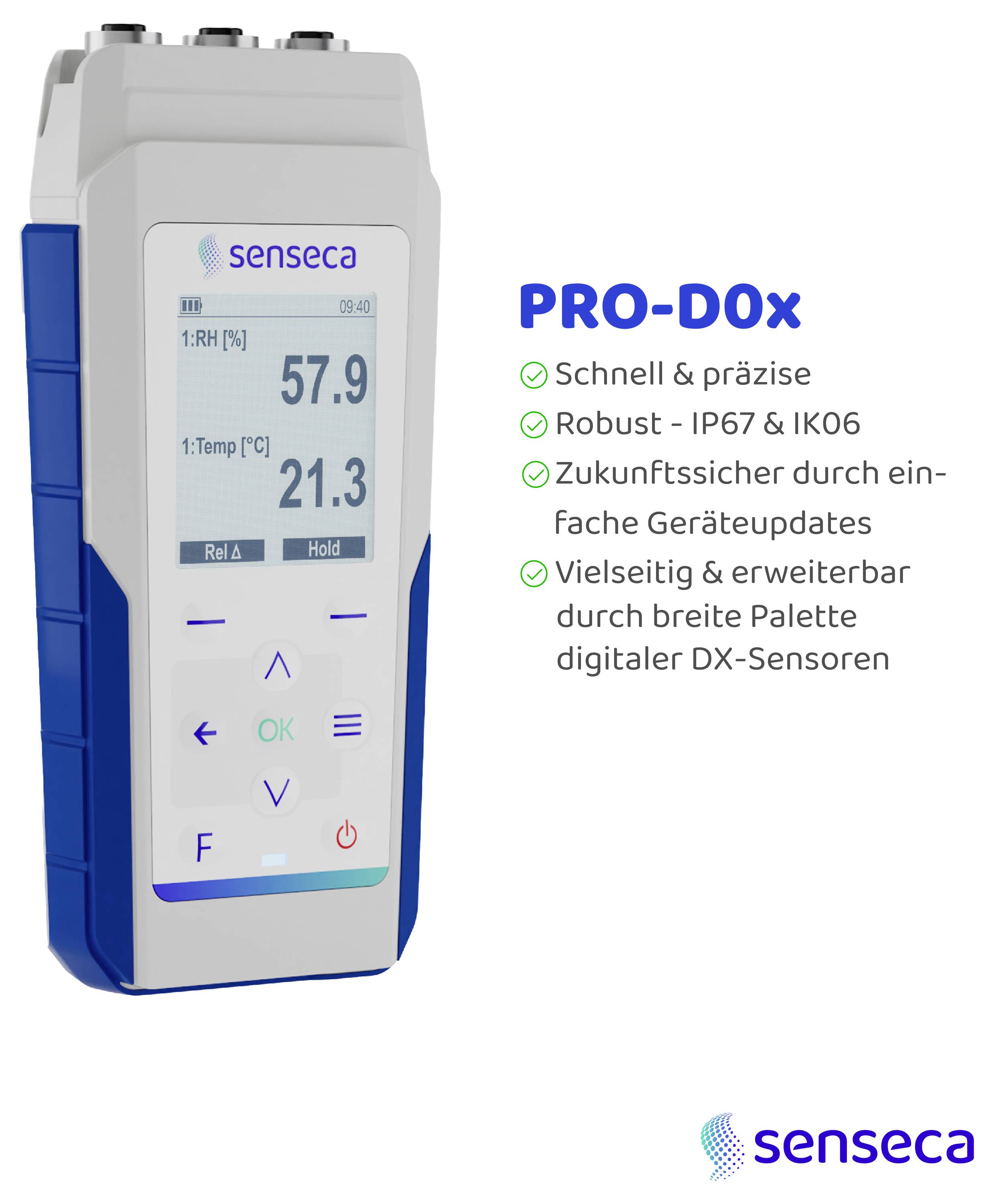

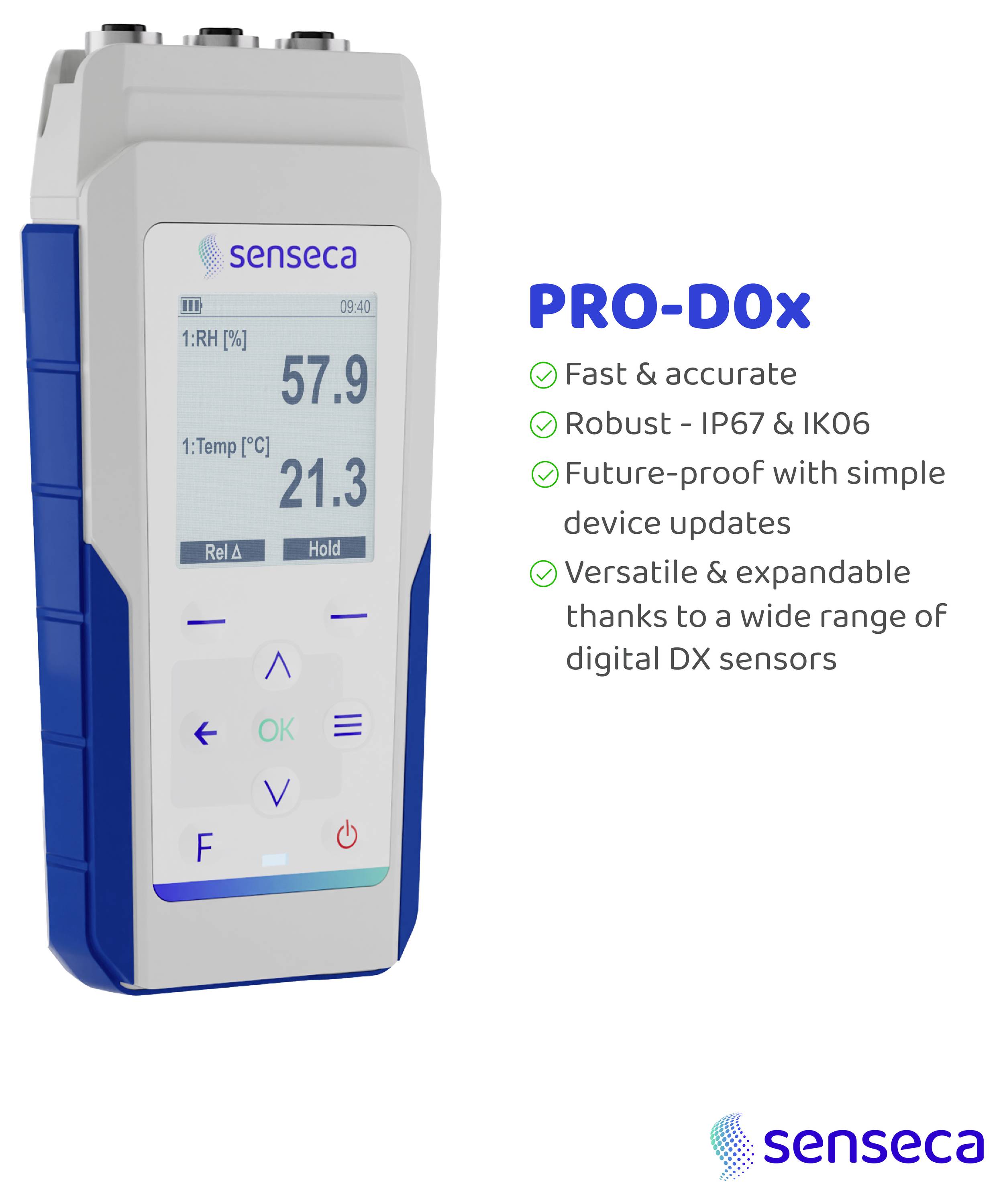

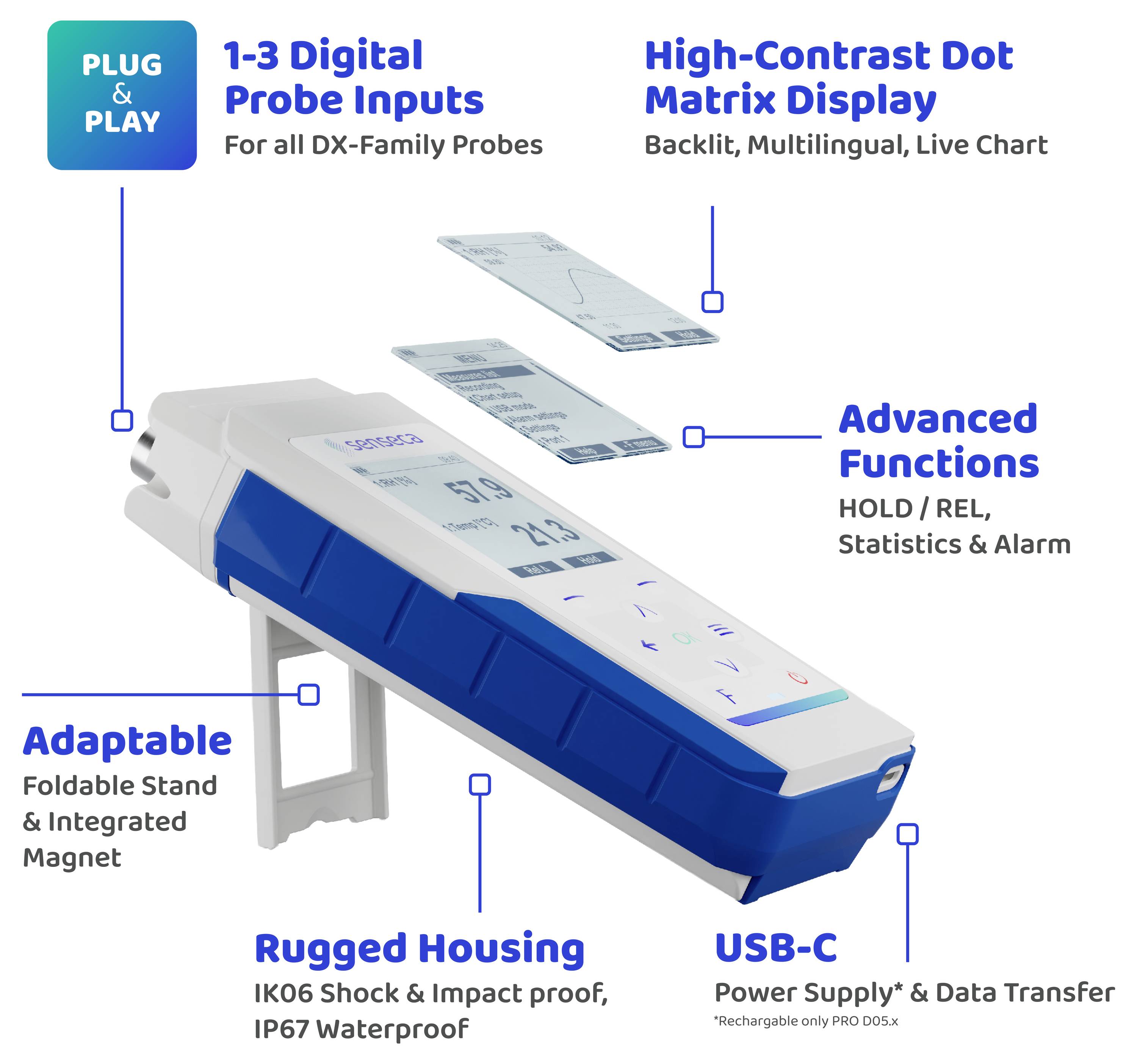

DX 310 is a digital humidity/temperature sensor for the PROD01 / PRO D05hand-held measuring devices.
The sensor supplies the following measured variables:
- Dew point
- Wet bulb temperature
- Absolute and specific humidity
- Mixing ratio
- Specific enthalpy
- Partial vapor pressure
- Freezing point temperature
- Saturation vapor pressure over water and over ice
The sensor is factory calibrated and is immediately ready for use. The calibration data is stored in the sensor so that it can be exchanged without recalibration.
Equipped with 4-pin M12 plug
This text is machine translated.
The sensor supplies the following measured variables:
- Dew point
- Wet bulb temperature
- Absolute and specific humidity
- Mixing ratio
- Specific enthalpy
- Partial vapor pressure
- Freezing point temperature
- Saturation vapor pressure over water and over ice
The sensor is factory calibrated and is immediately ready for use. The calibration data is stored in the sensor so that it can be exchanged without recalibration.
Equipped with 4-pin M12 plug
This text is machine translated.
Features
- Multi-point calibration of the relative air humidity
- Changeable
- Low energy consumption
- Hundredths resolution of temperature and humidity
- Can be attached directly to the device (without cable)
- quick and precise
