Senseca DX330-L01 RH/temperature sensor -20 up to 80 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 357.14 / piece)
€ 357.14
plus VAT.
Only 2 Piece(s) available
Highlights & Details

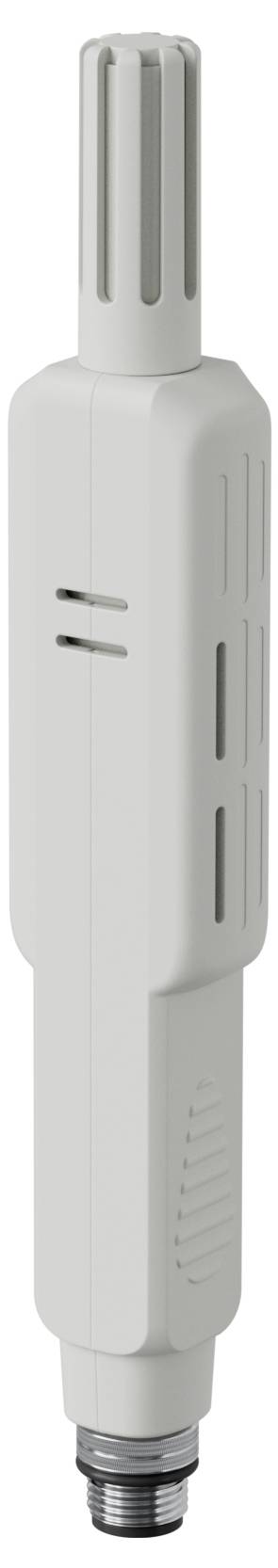

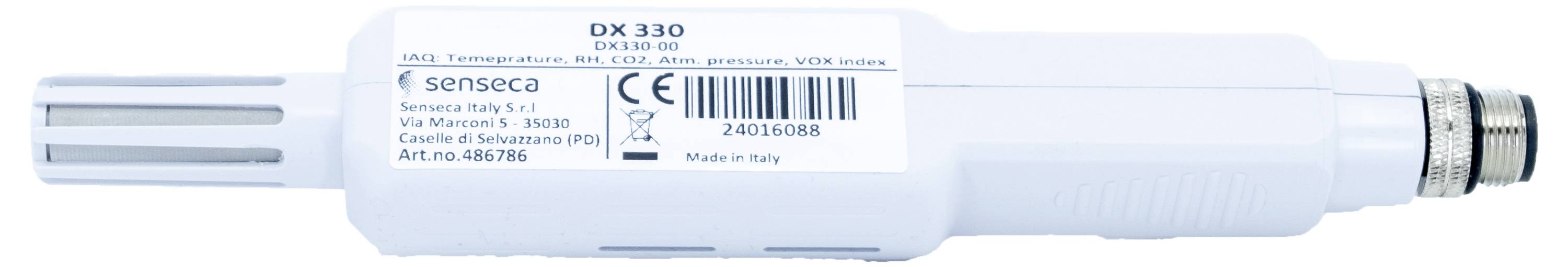

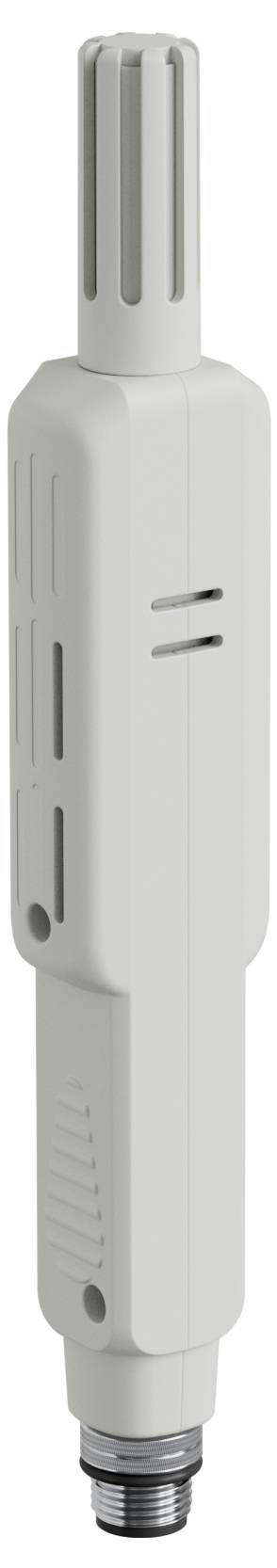

Senseca DX330-L01 - IAQ digital air quality sensor (e.g. for PRO D5x) with 1 meter PVC connection cable, M12 plug
- -20 up to 80 °C
Technical specifications
- Comprehensive measurement technology in one device: Temperature, relative humidity, air pressure, CO2 concentration, VOC index
- Relative humidity: 0 ... 100 % r.F.
- Air pressure: 300 ... 1250 hPa (piezo resistive sensor)
- CO2 concentration: 0 ... 5000 ppm (non-dispersive two-steel infrared sensor)
- VOC index: 1 ... 500 digit (metal oxide film)
- Product type
RH/temperature sensor
- Temperature reading range (min.)
-20 °C
- Temperature reading range (max.)
80 °C
- Dim
(L x W x H) 177 x 30 x 19 mm
- Weight
45 g
- Cable length
1 m
- Temperature reading range
-20 up to 80 °C
- Width
30 mm
- Height
19 mm
- Length
177 mm
Documents & Downloads
Datasheet
Datasheet 3771550 Senseca DX330-L01 RH/temperature sensor -20 up to 80 °C
User & Safety Instructions
User & Safety Instructions 3771550 Senseca DX330-L01 RH/temperature sensor -20 up to 80 °C
Description
The Senseca DX330 is a highly precise, digital room-air quality sensor (IAQ), which has been specially developed for the handheld measuring devices PRO D01 and PRO D05. This all-in-one probe simultaneously captures all relevant parameters for a healthy indoor climate and efficient ventilation strategies: Temperature, relative humidity, air pressure, CO2 concentration and the VOC index.
Thanks to the digital interface, all calibration data is stored directly in the sensor. This enables exchange without loss of accuracy and without time-consuming re-calibration of the measuring device. The connection is made flexibly via a 4-pin M12 plug - either directly on the device or via the 1 meter long PVC-connection cable included in the delivery.
This text is machine translated.
Thanks to the digital interface, all calibration data is stored directly in the sensor. This enables exchange without loss of accuracy and without time-consuming re-calibration of the measuring device. The connection is made flexibly via a 4-pin M12 plug - either directly on the device or via the 1 meter long PVC-connection cable included in the delivery.
This text is machine translated.
Scope of delivery
- Digital air quality sensor (IAQ) DX330-00
- 1 m PVC-connection CABLE CABLE-M12-L01
- Quickstart instructions
System requirements
- Compatible measuring device (e.g. PER D5x)
