Senseca ECO 420-20-AQ-B Carbon dioxide detector 0 - 10000 ppm USB interface
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 452.94 / piece)
€ 452.94
plus VAT.
Only 3 Piece(s) available
Highlights & Details

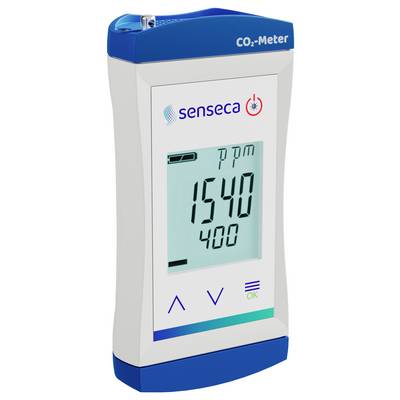

Senseca ECO 420 AQ Compact CO2 Monitor with Alarm (formerly Greisinger G 1910)
- • Modern and functional housing
- • Wide measurement range: Up to 19999 ppm / 2% CO2 (variant -20)
- • Rechargeable via micro-USB socket
- • 24 hours battery life
- • Backlight
- • First alarm level by pressing the button "5 minutes idle" for
- Ventilation process
- • Ideal for air quality and air hygiene monitoring
- • HOLD function for "freezing" measuring values
- • Min/max function for minimum and maximum measured values

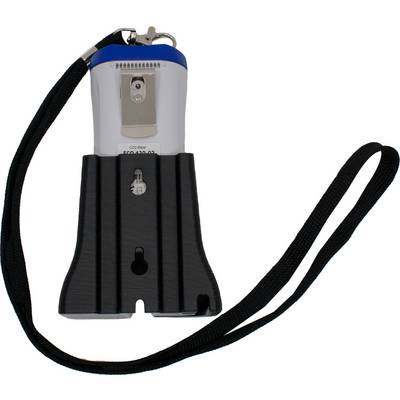

- • With metal belt clip and shoulder strap
- • With calibration connection
- • Made in Germany
Technical specifications
- Reading range
0 ... 2000 (max 10000) ppm CO2 / 0.000 ... 0.200 (max 1.000) % CO2
- Product type
Carbon dioxide detector
- Unit of measurement
CO2
- Reading range
0 - 10000 ppm
- Accuracy
±70 ppm CO2 ±3% of the measured value
- Dim
(L x W x H) 108 x 54 x 28 mm
- Features
USB interface
- Weight
160 g
- Weight, information
incl. battery
- Reading range (max.)
10000 ppm
- Reading range (min.)
0 ppm
- Width
54 mm
- Height
28 mm
- Length
108 mm
IP30
Documents & Downloads
Datasheet
Datasheet 3410748 Senseca ECO 420-20-AQ-B Carbon dioxide detector 0 - 10000 ppm USB interface
User & Safety Instructions
User & Safety Instructions 3410748 Senseca ECO 420-20-AQ-B Carbon dioxide detector 0 - 10000 ppm USB interface
Description
Compact CO2 monitor with alarm for many applications in the air quality monitoring, greenhouses, energy management and for research and teaching.
The measurement is done with a high-quality optical NDIR-measurement method at the air openings on the top of the device.
Simultaneous display of the time-weighted average value over 8 hours (TWA) or 15 minutes (STEL).
CO2 – hazardous at concentrations greater than 3%
The ECO420 is the ideal measuring and warning device for moderate but non-hazardous concentrations, but does not replace personal protective equipment for use in potentially hazardous atmospheres.
This text is machine translated.
The measurement is done with a high-quality optical NDIR-measurement method at the air openings on the top of the device.
Simultaneous display of the time-weighted average value over 8 hours (TWA) or 15 minutes (STEL).
CO2 – hazardous at concentrations greater than 3%
The ECO420 is the ideal measuring and warning device for moderate but non-hazardous concentrations, but does not replace personal protective equipment for use in potentially hazardous atmospheres.
This text is machine translated.
Scope of delivery
- • Handheld meter with fixed sensor (see order codes)
- • Metal clip for belt
- • G1000_Base stands
- • 2x AA NiMH rechargeable batteries
- • USB charging cable without mains adapter
- • Operating instructions
