Senseca ECO 531 Oxygen detector 0 - 20 mg/l
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
Only 7 Piece(s) available
Highlights & Details

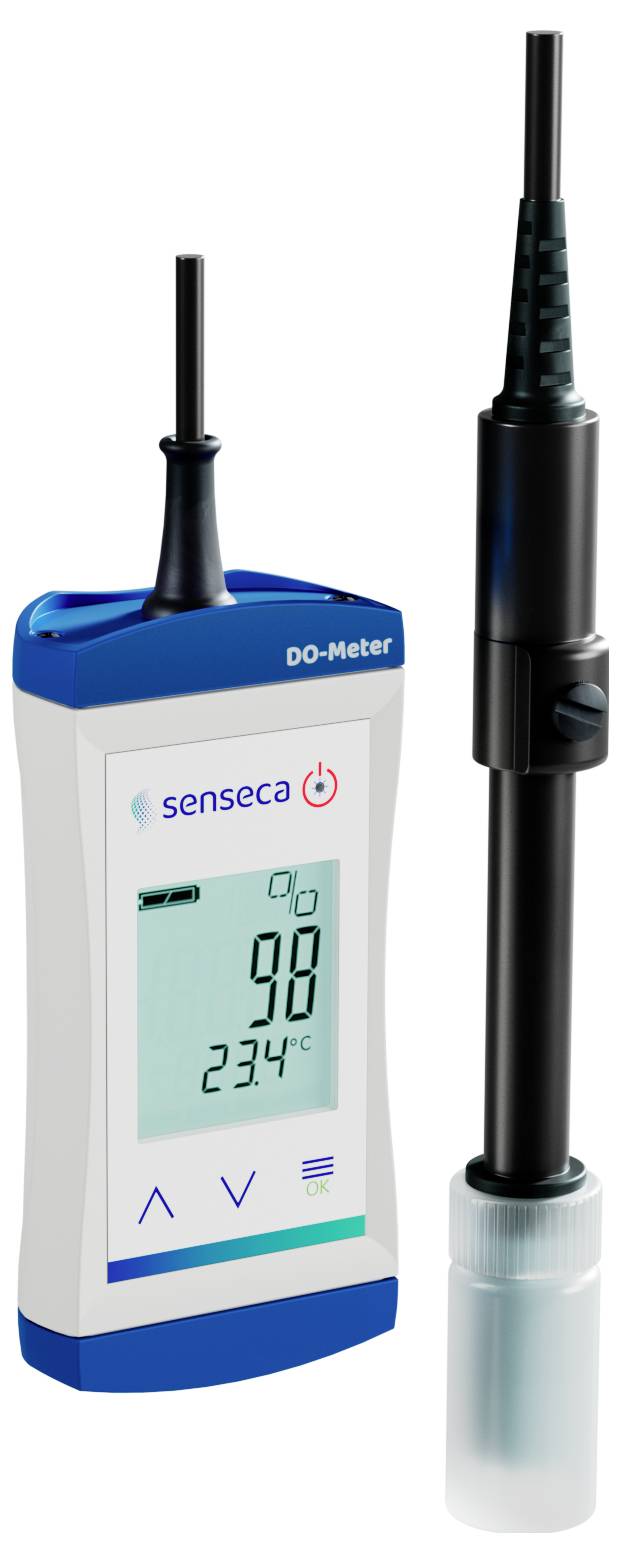

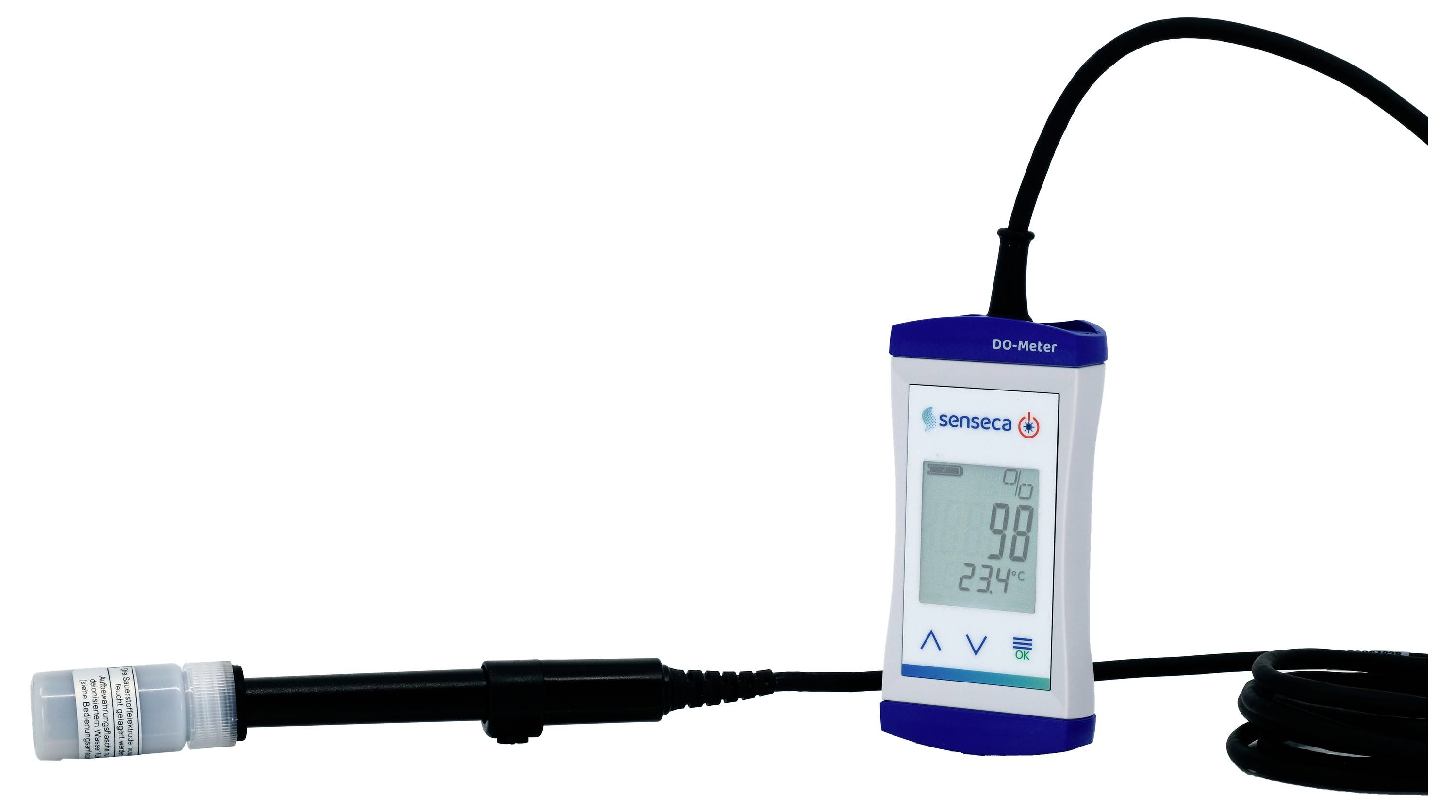

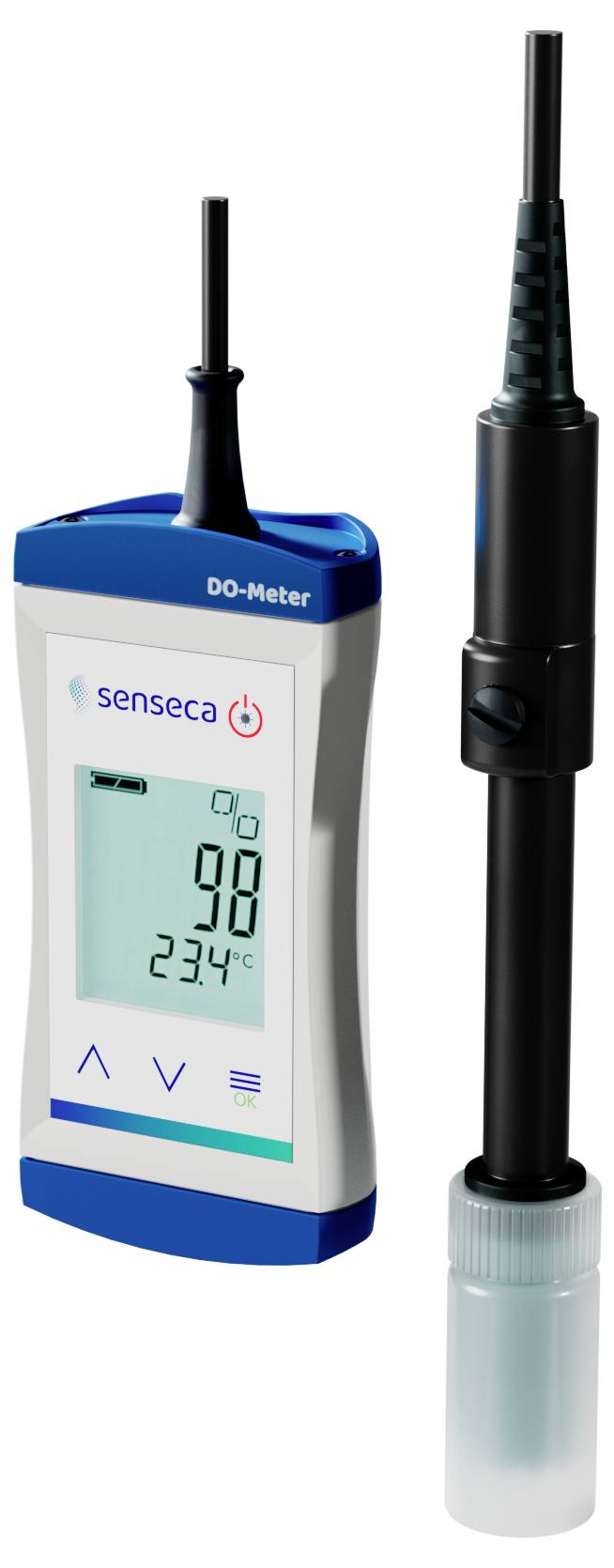

ECO 531 Water-proof solved oxygen meter (DO) with sensor (formerly G 1610)
Technical specifications
- Reading range
0.0 to 20 mg / l (or ppm) O2 concentration
0 to 200% O2 Sattigun g
- Product type
Oxygen detector
- Unit of measurement
Oxygen
- Reading range
0 - 20 mg/l
- Dim
(L x W x H) 54 x 28 x 108 mm
- Accuracy
1.5 %
- Weight
240 g
- Reading range (max.)
20 mg/l
- Reading range (min.)
0 mg/l
- Width
28 mm
- Height
108 mm
- Length
54 mm
IP65/67
- Power supply (details)
2x AA alkaline battery
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3046629 Senseca ECO 531 Oxygen detector 0 - 20 mg/l
User & Safety Instructions
User & Safety Instructions 3046629 Senseca ECO 531 Oxygen detector 0 - 20 mg/l
Description
The dissolved oxygen meter, with the maintenance-friendly galvanic sensor, is a day-to-day starting device, concentration in mg/l (ppm) as well as saturation in percentages can be read directly without the use of tables.
The adjustment is made by simply pressing a button at the ambient air. For field use in water bodies, it is recommended to use a GSKA protective cap to protect the membrane. Display
The three-line LCD display provides an ergonomic wide-angle view by day and night thanks to the backlight. The HOLD function makes it possible to freeze the displayed values.
Power Supply
2 powerful AA-batteries, the power-saving design and the configurable automatic switch-off provide for a long operation. Configurable LCD-background lighting for other power saving possibilities
This text is machine translated.
The adjustment is made by simply pressing a button at the ambient air. For field use in water bodies, it is recommended to use a GSKA protective cap to protect the membrane. Display
The three-line LCD display provides an ergonomic wide-angle view by day and night thanks to the backlight. The HOLD function makes it possible to freeze the displayed values.
Power Supply
2 powerful AA-batteries, the power-saving design and the configurable automatic switch-off provide for a long operation. Configurable LCD-background lighting for other power saving possibilities
This text is machine translated.
Features
- Modern and functional housing
- Water tight (IP65 / IP67)
- Comfortable adjustment at the touch of a button
- Long-lasting and maintenance-free sensor
- 3-line display / overhead display by pressing a button
- Backlight
- Robust, long battery life
- Hold-function for freezing the measured values
- Min/max function for minimum and maximum measured values
- Made in Germany
Scope of delivery
- Handheld meter with permanently attached sensor
- Replacement membrane cap GWOK02
- Replacement electrolyte KOH100
- 2x AA battery
- Operating instructions
