Buy Senseca Pressure sensor 1 pc(s) DX 240-200kPa 0 kPa up to 200 kPa (Ø x L) 21.7 mm x 62 mm

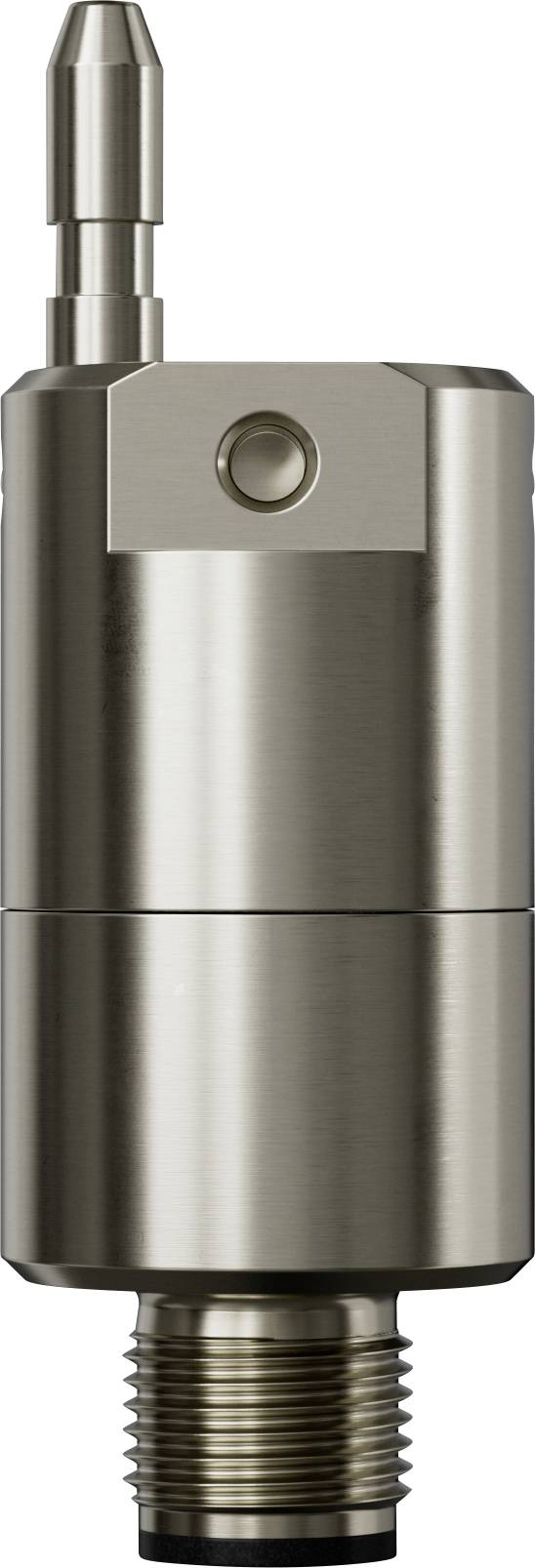

A metallic industrial sensor, cylindrical in shape, with a smooth finish, featuring a connector at the bottom and a button near the top.

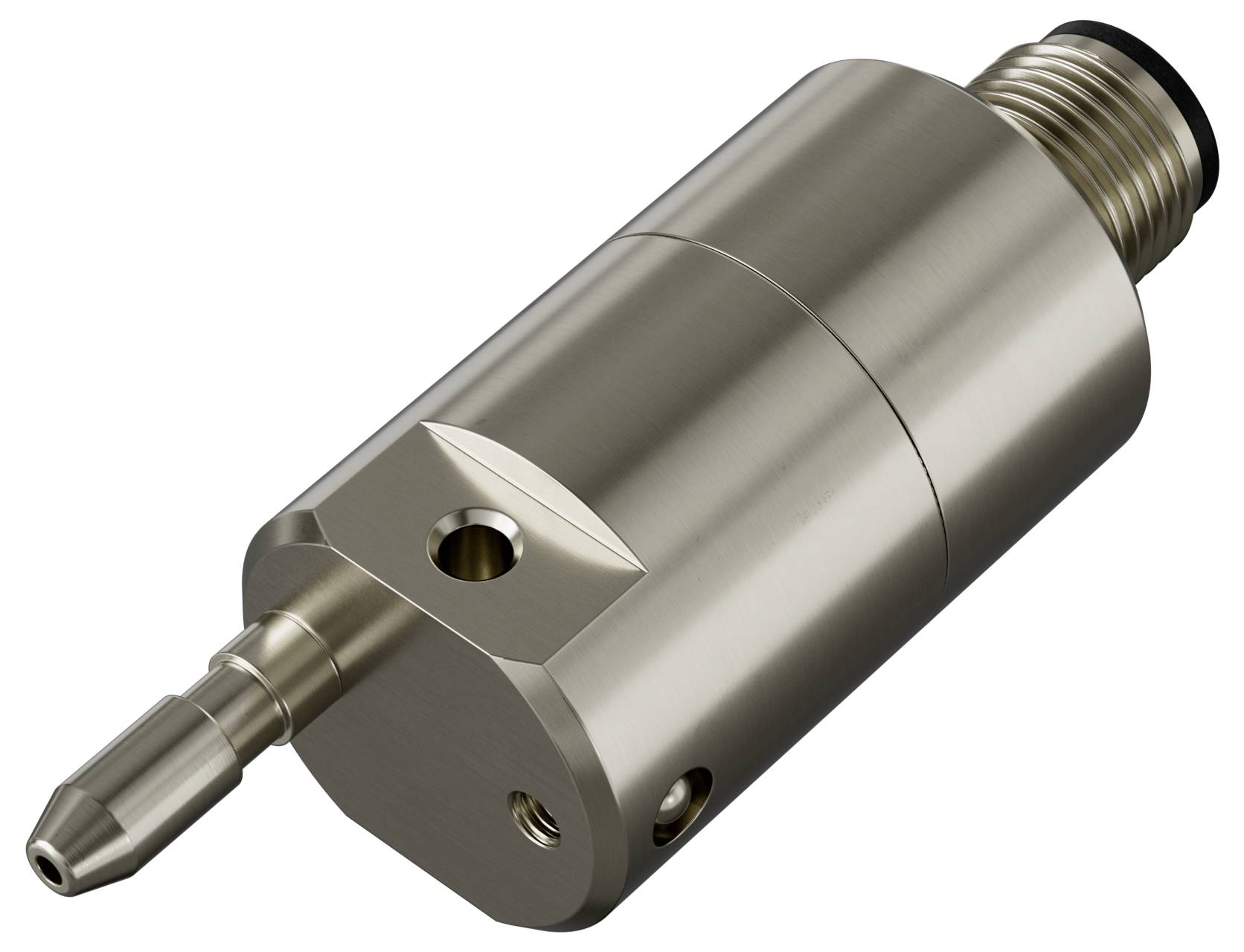

'Stainless steel pneumatic cylinder with a nozzle and threaded connection, used in industrial equipment for precise air control.'

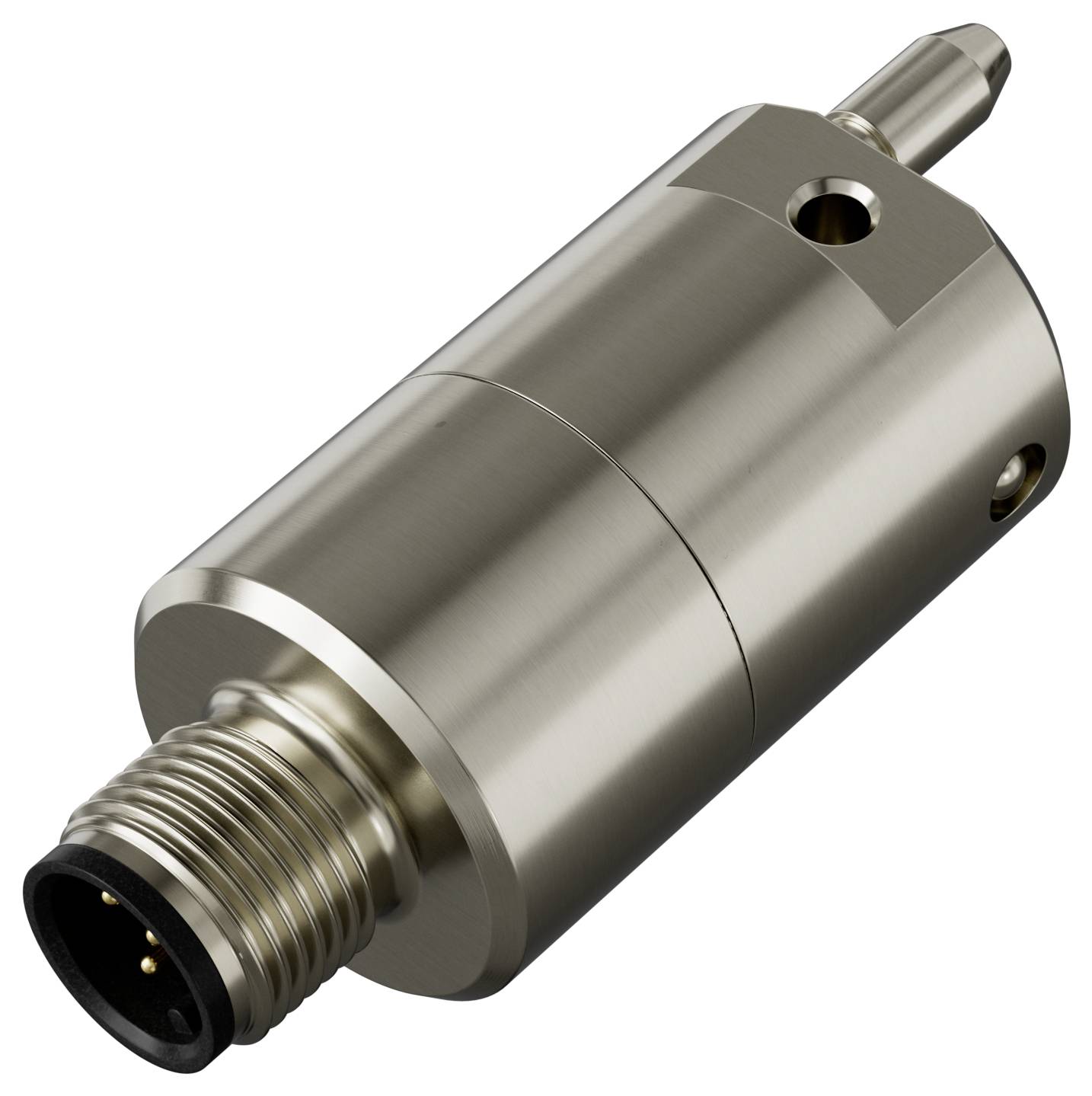

A metallic cylindrical connector with a threaded end and two small openings, possibly for electrical or fluid connectivity, shown on a white background.

1/3

Product type

Pressure sensor

Pressure reading range (max.)

200 kPa

Type

DX 240-200kPa

Pressure reading range (min.)

0 kPa

Pressure reading range

0 kPa up to 200 kPa

Datasheet (PDF)

Dispatches on Tue, 20 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 210.08 / piece)

€ 210.08

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DX 240-2BA digital absolute pressure sensor with hose connection for gases (e.g. for

Technical specifications

Product type: Pressure sensor

Type: DX 240-200kPa

Pressure reading range (min.): 0 kPa

Pressure reading range (max.): 200 kPa

Pressure reading range: 0 kPa up to 200 kPa

: IP65

Min. temperature: -25 °C

Max. temperature: 85 °C

Length: 62 mm

(Ø): 21.7 mm

Dim: (Ø x L) 21.7 mm x 62 mm

Weight: 74 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3046671 Senseca Pressure sensor 1 pc(s) DX 240-200kPa 0 kPa up to 200 kPa (Ø x L) 21.7 mm x 62 mm

User & Safety Instructions

User & Safety Instructions 3046671 Senseca Pressure sensor 1 pc(s) DX 240-200kPa 0 kPa up to 200 kPa (Ø x L) 21.7 mm x 62 mm

Description

DX 210 and DX 240 are a series of miniature absolute and differential pressure digital sensors for the PRO D01 / PRO D05 hand-held measuring devices.

The measurement is temperature compensated to ensure higher accuracy. The sensor is factory calibrated and is immediately ready for use. The calibration data is stored in the sensor so that it can be exchanged without recalibration. Equipped with 4-pin M12 connector "DX sensor standard", connectable to PRO-DEX multi-function measuring devices.

This text is machine translated.
