Senseca Pressure transducer 1 pc(s) Precont PU4SK 0 bar up to 10 bar M12 plug (4-pin, A coded) (Ø x L) 27 mm x 95 mm
Part number:
Item no:
Product type
Pressure transducer
Connector
M12 plug (4-pin, A coded)
Pressure reading range (max.)
10 bar
Max. operating voltage
35 V DC
Type
Precont PU4SK
Datasheet (PDF)
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Universal pressure transmitter for precise pressure measurement in industrial applications
- Precise measurement of absolute and relative pressure up to 10 bar
- Robust ceramic measuring cell for maximum long-term stability
- Flexible communication with FSK, IO-Link or Modbus® RTU
Technical specifications
- Ceramic measuring cell (ALSTIGE Oversicherung 96%)
- Process connection material: Stainless steel 1.4404/316L
- Seal: FPM (Viton)
- Protection class III
- Print: Relative pressure
- Product type
Pressure transducer
- Type
Precont PU4SK
- Connector
M12 plug (4-pin, A coded)
- Response time
2 ms
- Outputs
Analogue
- Output signal (min.)
3.8 mA
- Output signal (max.)
20.5 mA
- Accuracy
0.5 %
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
10 bar
- Pressure reading range
0 bar up to 10 bar
- Min. operating voltage
9 V DC
- Max. operating voltage
35 V DC
- Operating voltage
9 - 35 V DC
- Operating current
22 mA
- Burst load
25 bar
- Active area (diameter)
18 mm
IP67/IP69K
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Length
95 mm
- (Ø)
27 mm
- Dim
(Ø x L) 27 mm x 95 mm
- Weight
180 g
- Content
1 pc(s)
- Nominal voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 3804412 Senseca Pressure transducer 1 pc(s) Precont PU4SK 0 bar up to 10 bar M12 plug (4-pin, A coded) (Ø x L) 27 mm x 95 mm
User & Safety Instructions
User & Safety Instructions 3804412 Senseca Pressure transducer 1 pc(s) Precont PU4SK 0 bar up to 10 bar M12 plug (4-pin, A coded) (Ø x L) 27 mm x 95 mm
Conformity certificate
Conformity certificate 3804412 Senseca Pressure transducer 1 pc(s) Precont PU4SK 0 bar up to 10 bar M12 plug (4-pin, A coded) (Ø x L) 27 mm x 95 mm
Description

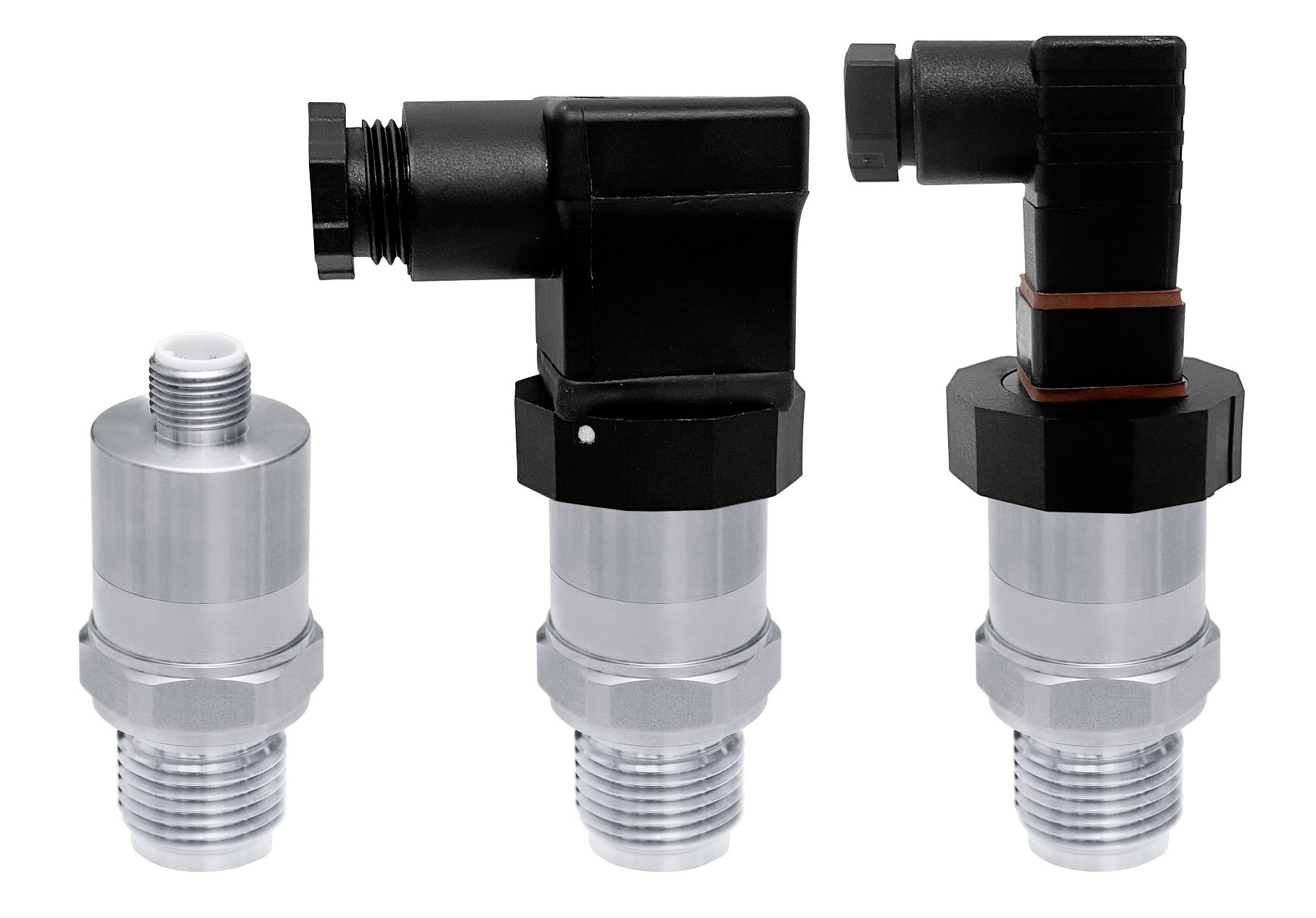

The PRECONT® PU4SK is a powerful pressure transmitter for continuous monitoring, control and measurement of absolute and relative pressure in gases, vapors, liquids and dusts. The robust ceramic measuring cell provides precise and long-term stable measurement results – even under demanding process conditions. Thanks to numerous process connections, front-flush membrane as well as FSK, IO-Link and Modbus®-RTU, the sensor can be flexibly integrated in a wide range of applications.
This text is machine translated.
This text is machine translated.
Features
- Ceramic measuring cell for measuring ranges up to 10 bar with an accuracy of up to ±0.5 % FSO
- Versions with FSK, IO-Link or RS485 Modbus® RTU as well as numerous process connections
- Robust stainless steel housing and protection class IP69K/IP67
Scope of delivery
- Device
- User manual
