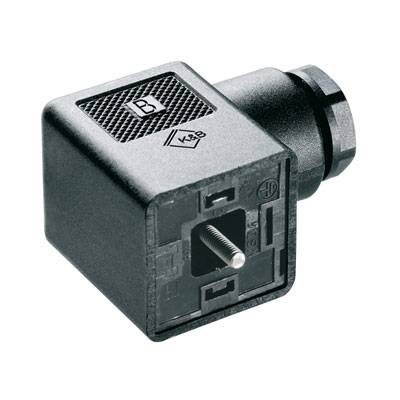

Sensor/Actuator plug connector socket SAIB-VSA-3P/230/9-H/OB 1873130000 Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Square connector
Type
A standard
Connection
Screws
IP rating
IP65
Number of pins
3
Datasheet (PDF)
Highlights & Details
Sensor/Actuator plug connector socket
- SAIB-VSA-3P/230/9-H/WHETHER
Technical specifications
- Contact surface: NI
- Nominal current 10 A
- Housing base material: PA 6 GF
- Mating cycles: ≤ 50
- Pollution level 3
- Insulation resistance: 10 8 Ω
- Cable diameter, min. 6 mm
- Product type
Square connector
- Type
A standard
- Connection
Screws
IP65
- Number of pins
3
- Nominal voltage
230 V
- Total no. of pins
3
- Weight
27 g
- Manufacturer part #
1873130000
- Content
1 pc(s)
- Cable Ø
8 mm
- Width
30 mm
- Length
20 mm
- max. cross section
1.5 mm²
- Min. cross section
0.34 mm²
- RoHS-compliant
Yes
- Connector type
Plug, right angle
- Max. temperature
+85 °C
- Min. temperature
-25 °C
- Type
SAIB-VSA-3P/230/9-H/OB
- Screw connection
PG 9
- Height
60 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204396 Sensor/Actuator plug connector socket SAIB-VSA-3P/230/9-H/OB 1873130000 Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204396 Sensor/Actuator plug connector socket SAIB-VSA-3P/230/9-H/OB 1873130000 Weidmüller Content: 1 pc(s)
Description
Sensor/Actuator plug connector socket. Socket, angled, A. Often in today's world, individual cable lengths are required. In order to meet this requirement, Weidmüller offers a broad portfolio of connectors for free assembly. In the special machine construction are very often field configurable valve plug. The connectors are used for the connection of solenoid valves. The valve plugs are available in all current sizes. The program includes the types A, B and C, C industry Industry, B according to DIN according to DIN standard. The valve plugs are without wiring, three and four-pole available. A corresponding flat seal is in the locked position IP65 guaranteed.
