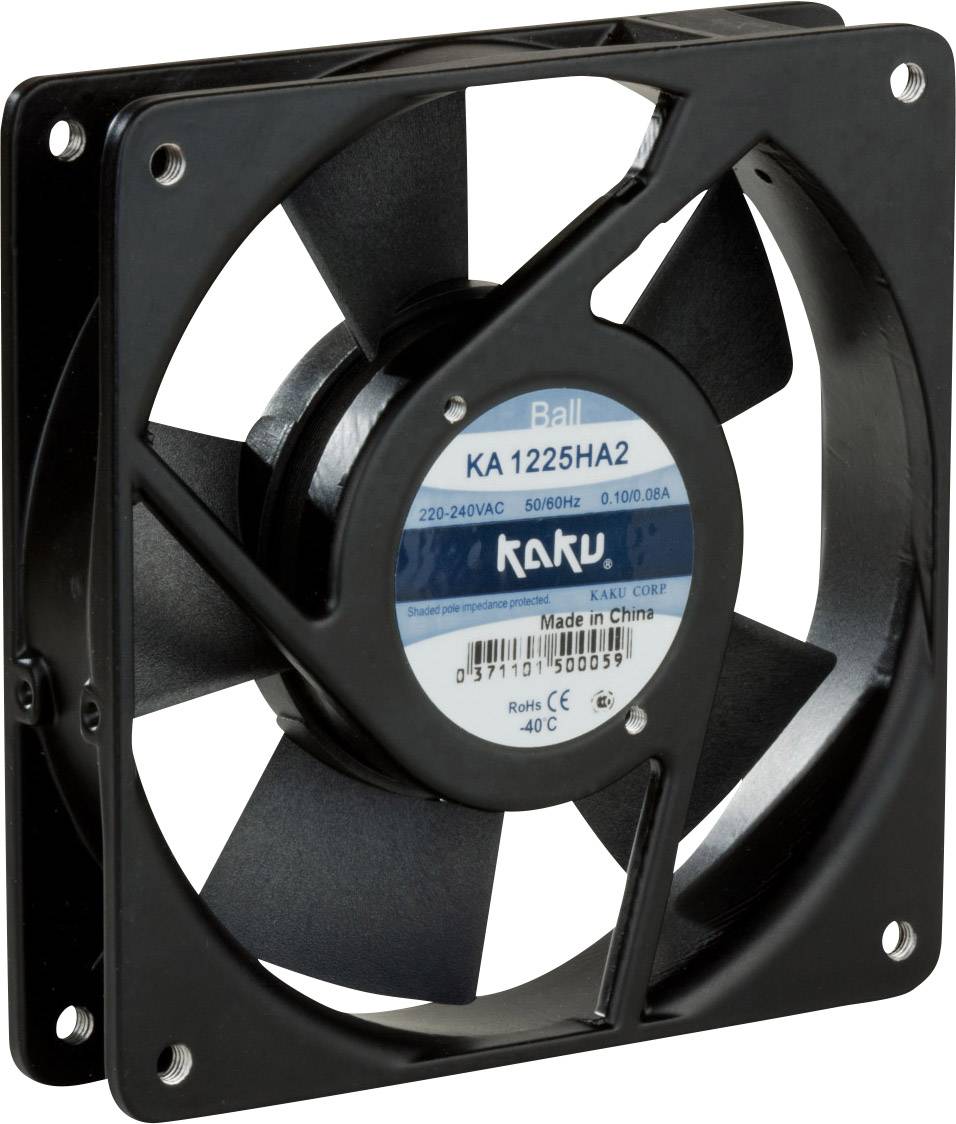

SEPA KA1225HA2BMT Axial fan 230 V AC 112.2 m³/h (L x W x H) 120 x 120 x 25 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
20 W
Type of bearing
Double ball bearing
Air flow rate
112.2 m³/h
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Technical specifications
- MTTF: 120000 h
- Product type
Axial fan
- Type
KA1225HA2BMT
- Nominal voltage
230 V AC
20 W
- Type of bearing
Double ball bearing
- Noise emission (max.)
40 dB
- Air flow rate
112.2 m³/h
- Factory colour
Black
- Material
Plastic
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Length
120 mm
- Width
120 mm
- Height
25 mm
- Dim
(L x W x H) 120 x 120 x 25 mm
Documents & Downloads
Datasheet
Datasheet 1381773 SEPA KA1225HA2BMT Axial fan 230 V AC 112.2 m³/h (L x W x H) 120 x 120 x 25 mm
User & Safety Instructions
User & Safety Instructions 1381773 SEPA KA1225HA2BMT Axial fan 230 V AC 112.2 m³/h (L x W x H) 120 x 120 x 25 mm
Conformity certificate
Conformity certificate 1381773 SEPA KA1225HA2BMT Axial fan 230 V AC 112.2 m³/h (L x W x H) 120 x 120 x 25 mm
Description
The AC exhaust is used for industrial purposes and has a remarkable flow rate. Due to the almost linear air flow feature, the fan is suitable for various applications. It has permanent electronic protection against blocking and thermal overloading. It has a high shock and vibration resistance due to low rotor weight and precise balancing. Other features of this fan are, extremely rugged and dimensionally stable aluminum casing, PBT-GV30 rotor (UL 94 V-0), as well as the ball bearings made of special steel.
