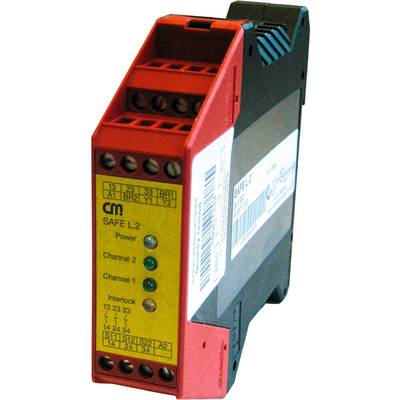

Serial device SAFE L.2 CM Manufactory Operating voltage: 24 V DC 3 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Serial device
Operating voltage
24 V DC
Type
SAFE L.2
Contact type
3 makers
Switching voltage (max.)
24 V DC
Sales and shipping:
Number
Total (€ 201.67 / piece)
€ 205.88
€
Highlights & Details
Post-switching relay for safety light barriers/grids
- Optical switching status display
- Power control by LED
- Monitoring OF THE START button can be selected by an external bridge
Technical specifications
- Safety category: 4
- Performance level: PL e
- Type (general): Safety relay
- Certification: TUV/CE/UL/cUL
- Product type
Serial device
- Type
SAFE L.2
- Operating voltage
24 V DC
- Contact type
3 makers
- Switching voltage (max.)
24 V DC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
+55 °C
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2226790 Serial device SAFE L.2 CM Manufactory Operating voltage: 24 V DC 3 makers 1 pc(s)
Conformity certificate
Conformity certificate 2226790 Serial device SAFE L.2 CM Manufactory Operating voltage: 24 V DC 3 makers 1 pc(s)
Description
This safety relay is used in, among other things, non-contact protective devices (light barriers, light grids and light curtains) of category 4, as well as category 2, provided that they carry out a self-test.
