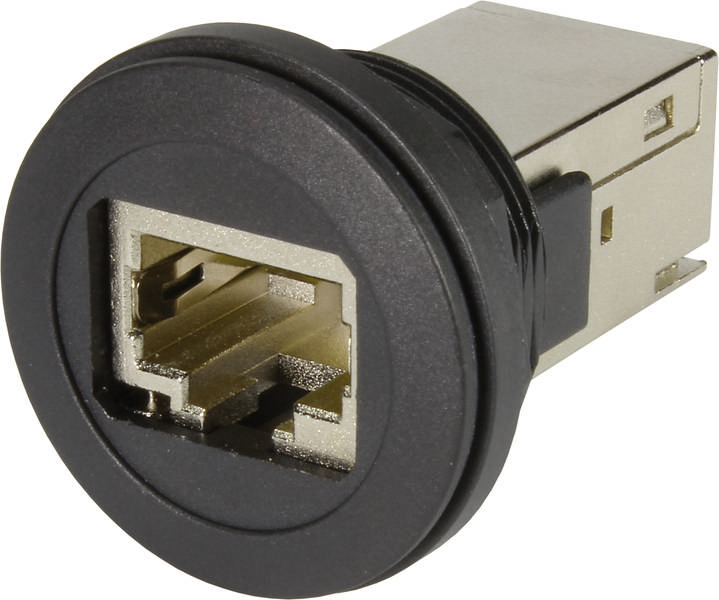

Service interfaces 09454521561 HARTING Content: 1 pc(s) Push-fit connector
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Push-fit connector
Type
09 45 452 1561
Manufacturer part #
09454521561
Connection
Socket
Datasheet (PDF)
Technical specifications
- Range: Har-port
- Component: Service interfaces
- Type of connection: Socket to socket
- Mating cycles ≥ 750
- Standards EN 45545-2
- Net weight: 20 g
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 10 Gbit/s.
- Description: RJ45
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Cat. 6A class EA to 500 MHz
- Protection class according to IEC 60529:IP20
- PROFINET: Yes
- Approvals DNV GL
- Material housing: Polyamide (PA)
- Colour of housing: Black
- Mounting: Screwable in housing wall
- Ambient temperature: -25 ... +70 °C
- Packaging type
Piece
- Type
09 45 452 1561
- Product type
Push-fit connector
- Manufacturer part #
09454521561
- Connection
Socket
- Content
1 pc(s)
- Material
Polyamide
- Max. temperature
70 °C
Other
IP20
Plastic
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3001194 Service interfaces 09454521561 HARTING Content: 1 pc(s) Push-fit connector
User & Safety Instructions
User & Safety Instructions 3001194 Service interfaces 09454521561 HARTING Content: 1 pc(s) Push-fit connector
Description
Service interfaces, RJ45, fully shielded, 360° shield contact, CAT 6A Class EA to 500 MHz, type of connection: Socket to socket
