Shaft ACP Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shaft
Content
1 pc(s)
RoHS-compliant
Yes
Type
6023 NE
Factory colour
Black
Datasheet (PDF)
Highlights & Details
ACP CA6 axle 13mm black
Our service for you
Technical specifications
- Application: For carbon film trimmers from the CA6V and CA6H series
- ESD Packaging: No ESD
- MSL: 1 - unlimited
- Series CA6
- Suitable for: Trimmer CA6
- Delivery form: Loose

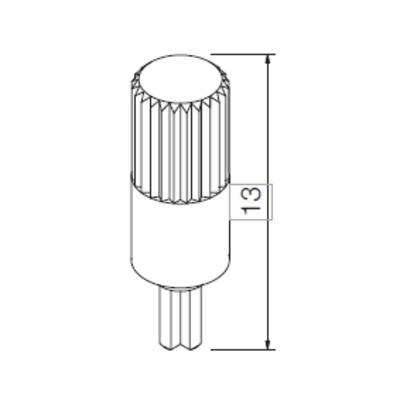

- Total height 13 mm

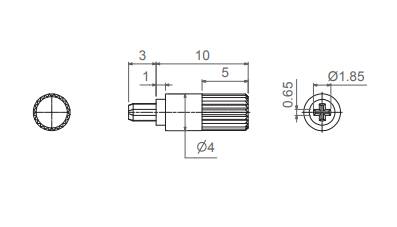

- Length, shaft 10 mm
- Diameter, Shaft 4 mm
- Axis, diameter: 3 mm
- Axis, length 3 mm
- Handle, length 5 mm
- Product type
Shaft
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
6023 NE
- Factory colour
Black
- Resistance
0 Ω
Documents & Downloads
Datasheet
Datasheet 3464451 Shaft ACP Content 1 pc(s)
Datasheet 3464451 Shaft ACP Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464451 Shaft ACP Content 1 pc(s)
Description
Knurled and jack axle for trimmer CA6
This text is machine translated.
This text is machine translated.
Features
- Variants with self-extinguishing properties as per UL94 V-0, available on request
