A cylindrical, ridged control knob with a directional arrow on top, likely used for adjusting settings on a device or appliance.

A cylindrical, ridged control knob with a directional arrow on top, likely used for adjusting settings on a device or appliance.

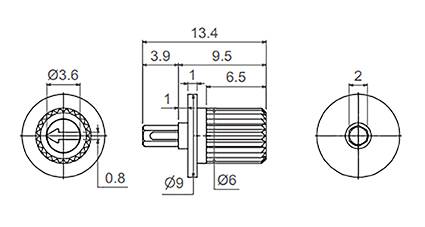

'Technical diagram of a gear component, showing front and side views with measurements: 13.4, 9.5, 6.5, 9, 6, 3.9, 3.6, 2, 0.8.'

1/2

Product type

Shaft

Content

1 pc(s)

RoHS-compliant

Yes

Type

9054 NE

Factory colour

Black

Datasheet (PDF)

English

ACP

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

ACP CA9M axle 13.4mm black

Our service for you

Technical specifications

Application: For carbon film trimmers CA9MV and CA9MH series
ESD Packaging: No ESD
MSL: 1 - unlimited
Series CA9
Suitable for: Trimmer CA9
Delivery form: Loose
Total height 13.4 mm
Length, shaft 9.5 mm
Diameter, Shaft 6 mm
Axis, diameter: 2 mm
Axis, length 3.9 mm
Handle, length 6.5 mm

Product type: Shaft

Content: 1 pc(s)

RoHS-compliant: Yes

Type: 9054 NE

Factory colour: Black

Resistance: 0 Ω

Documents & Downloads

Datasheet

English

Datasheet 3464453 Shaft ACP Content 1 pc(s)

Datasheet 3464453 Shaft ACP Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3464453 Shaft ACP Content 1 pc(s)

Description

Knurled and jack axles for trimmer CA9M
