Sharkoon QB One PC casing Black

Compact, elegant and high quality

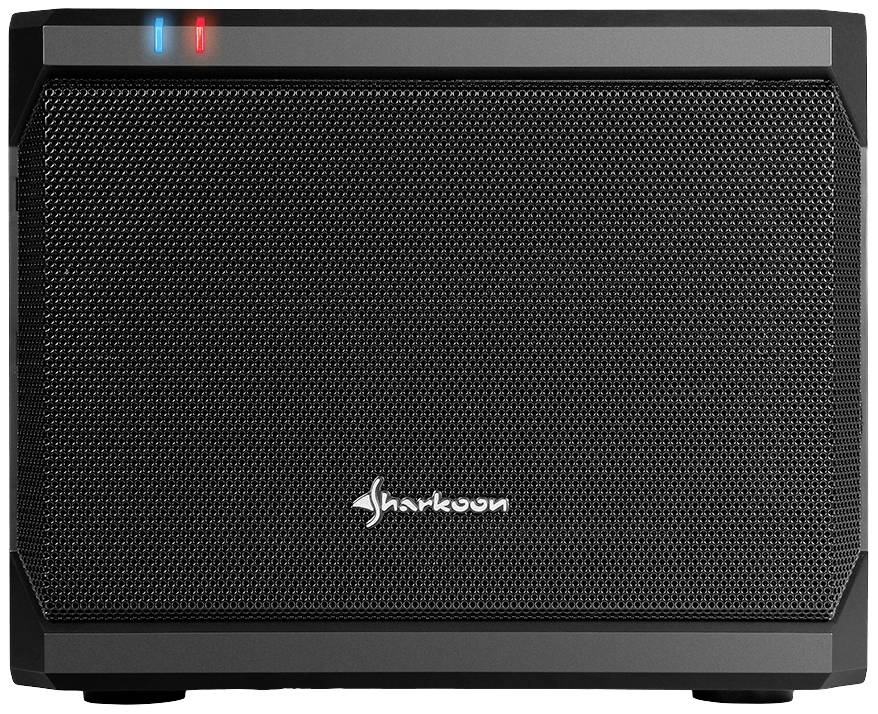

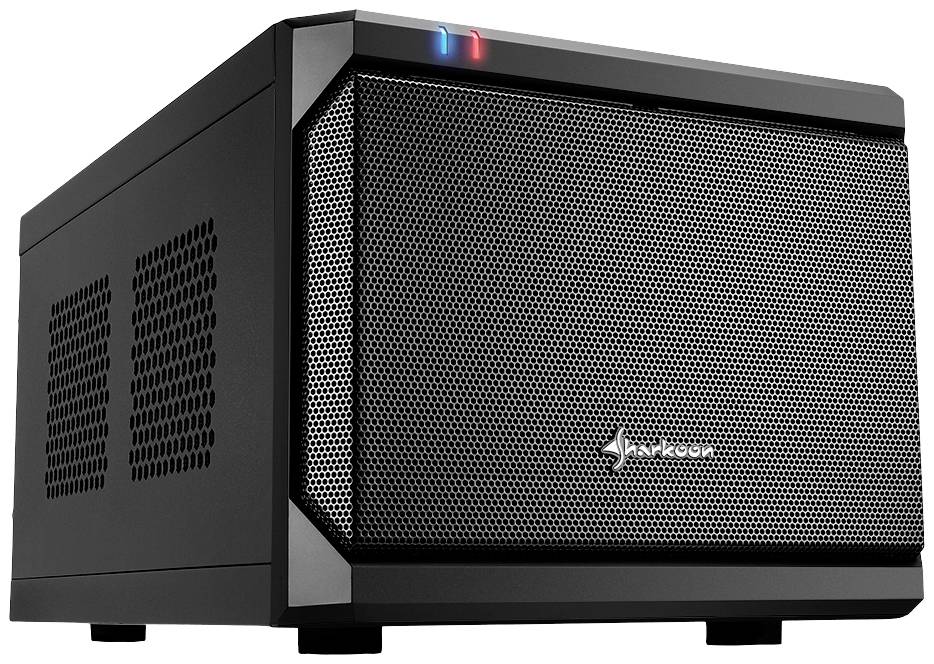

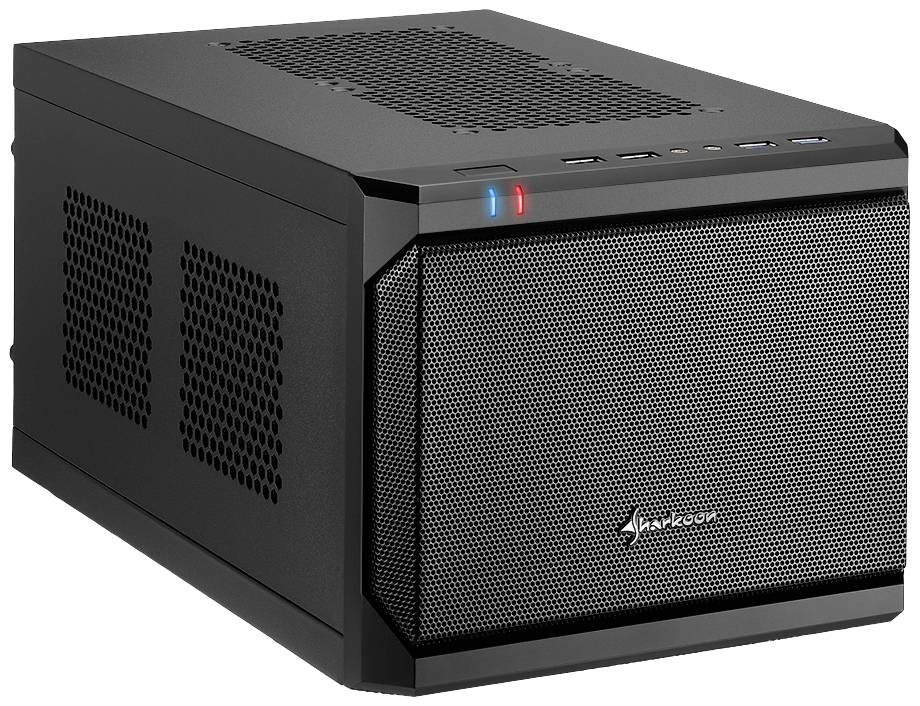

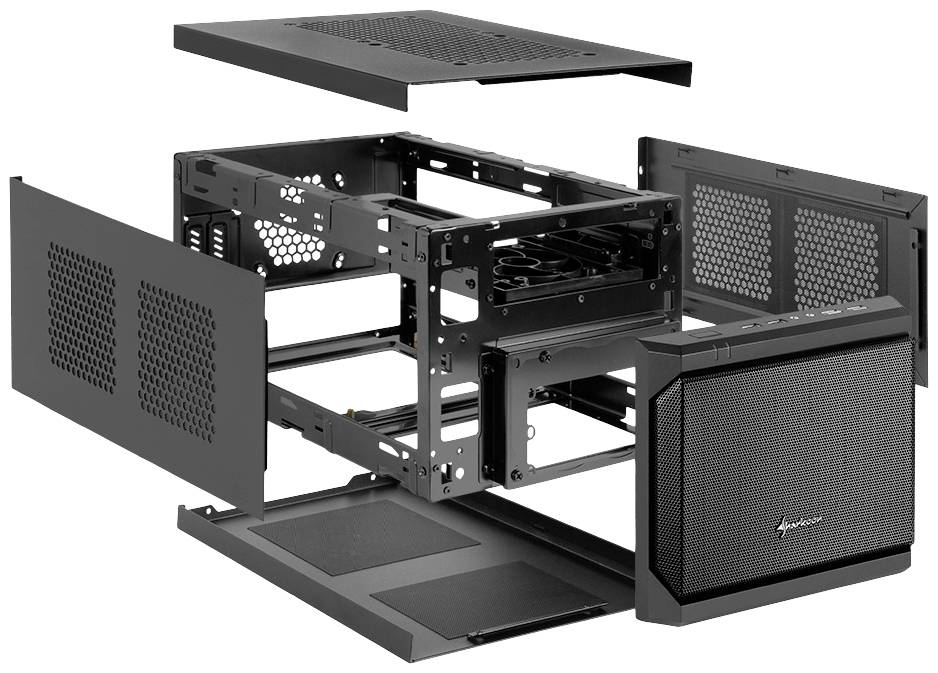

The QB ONE Mini-ITX PC Case, completely in black, offers highest flexibility in the smallest of spaces. Thanks to the well thought-out floor plan, the high-quality housing offers more than adequate space for all the required components. With its compact dimensions of only 36.8 x 22.5 x 18.0 centimeters (L x W x H), it is ideal for mobile and space-saving use. The elegant design is also recommended for use in the living room, for example for a powerful multimedia PC. Thanks to the clever arrangement of the control elements and the interfaces, the housing can be used not only horizontally, but also vertically. Moreover conventional ATX power supplies can be mounted, whereby the use of SFX power supplies offers still more space.

Exemplary ventilation

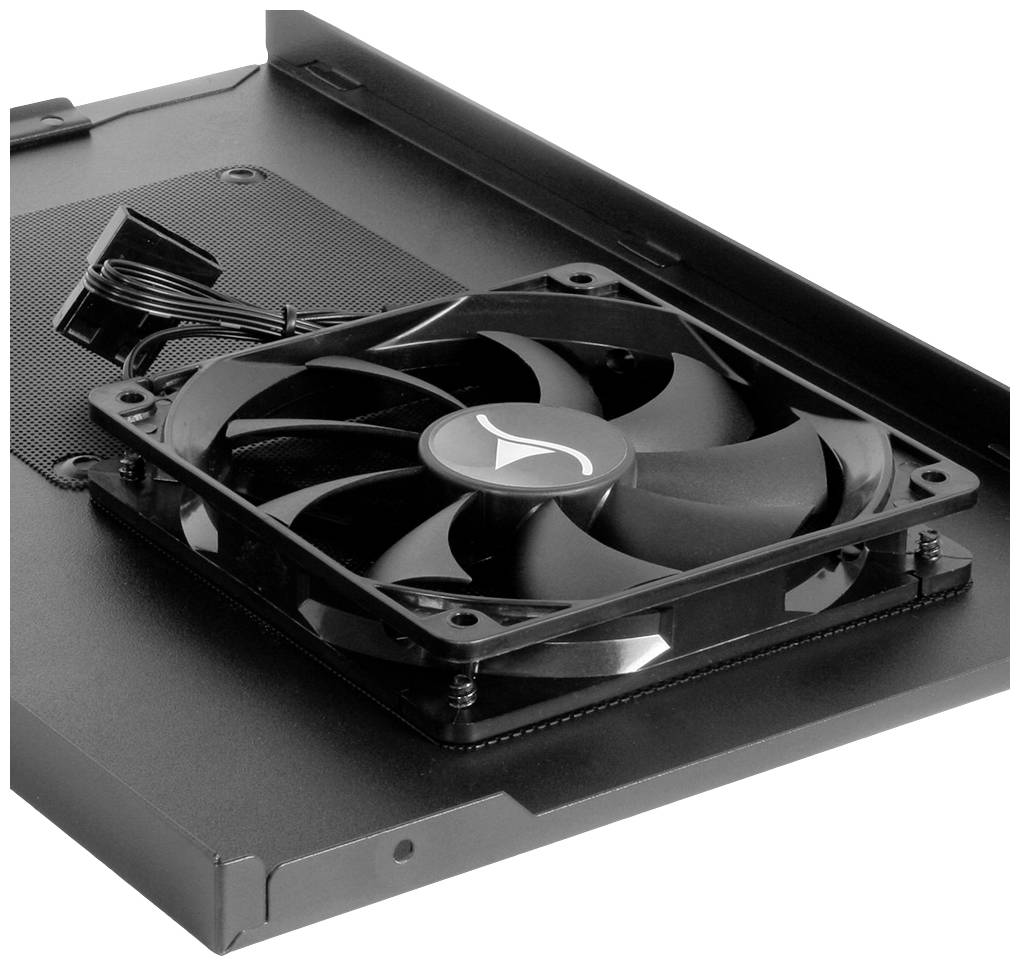

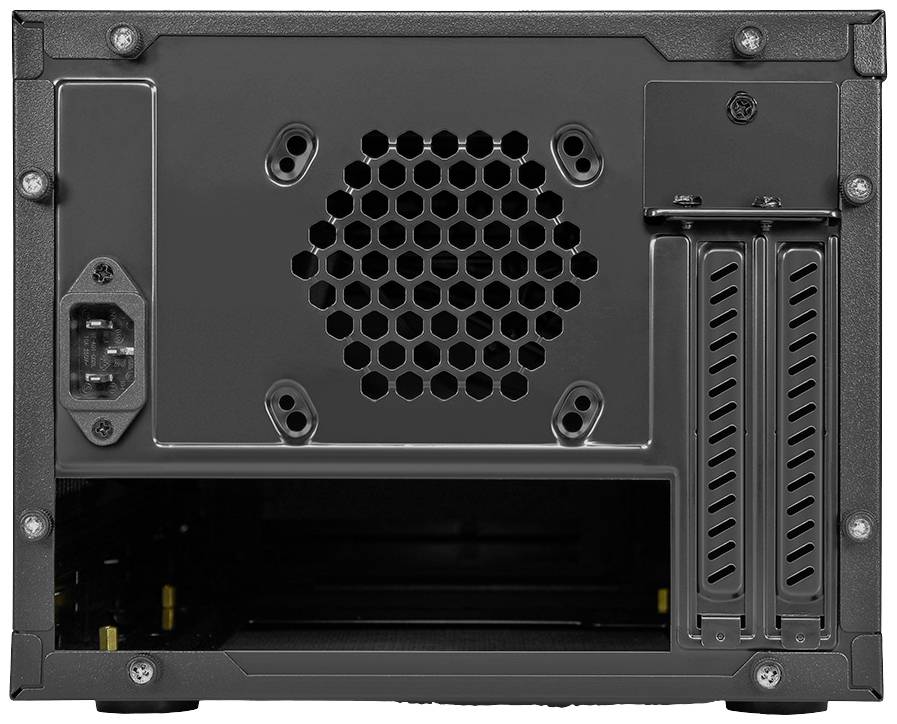

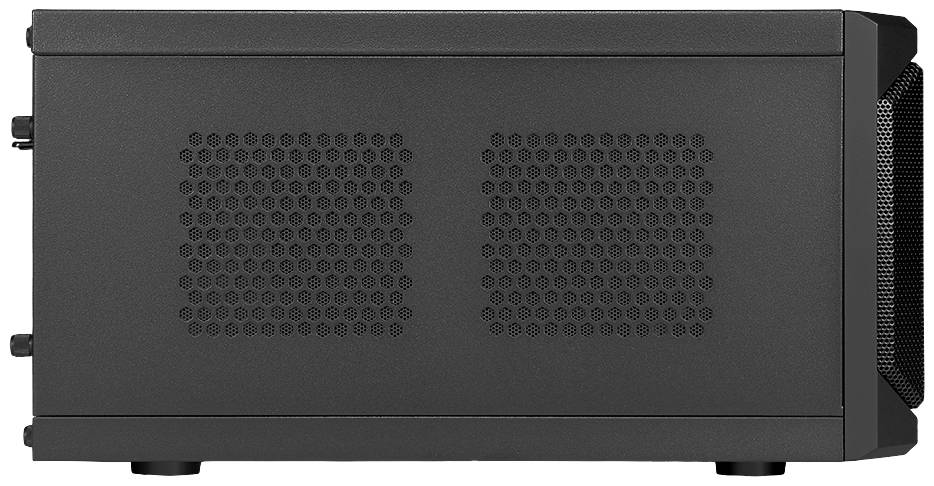

A quiet 120 mm fan is already pre-installed on the top, optionally a further 120 mm fan can be installed there. For an optional water cooling of the system, the top side also offers space for a 240-mm radiator. By way of example, all side panels offer generous ventilation openings and are all equipped with dust filters. A clear advantage for integrated graphic cards that are supplied with best fresh air via the lateral openings. A 80 mm fan can be mounted at the rear side to further optimize the ventilation.

Modern connections

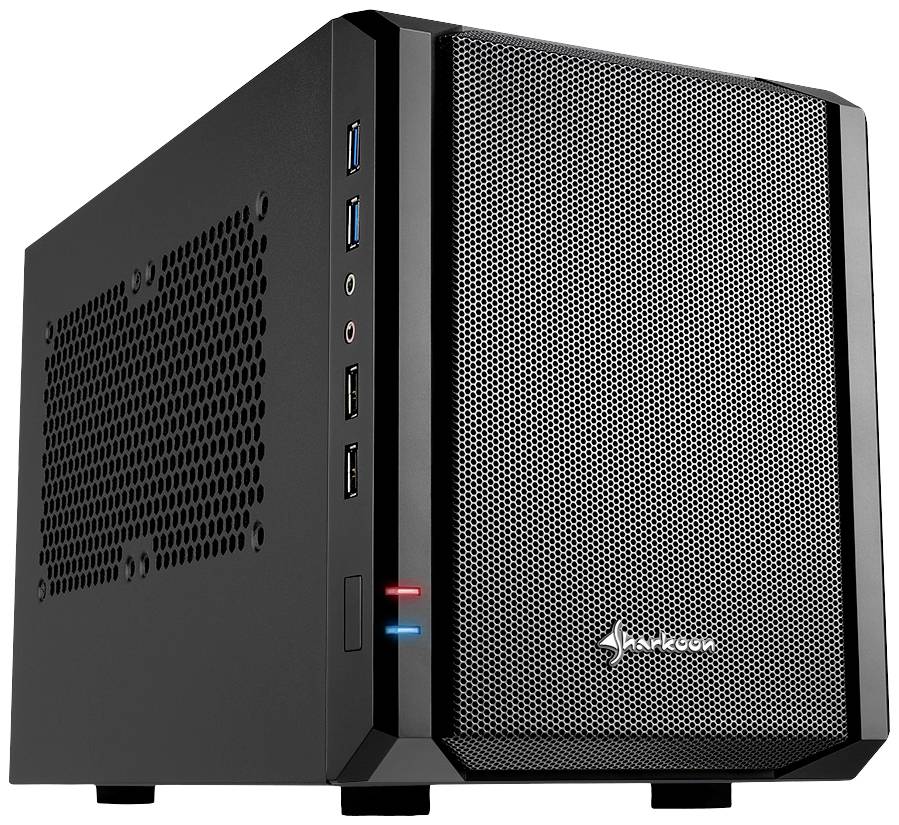

At the front, two USB 3.0 and two USB 2.0 interfaces provide quick access for connecting peripheral devices. In addition, the QB ONE also possesses two audio connections, for the comfortable use of a headset.

Various options for installation

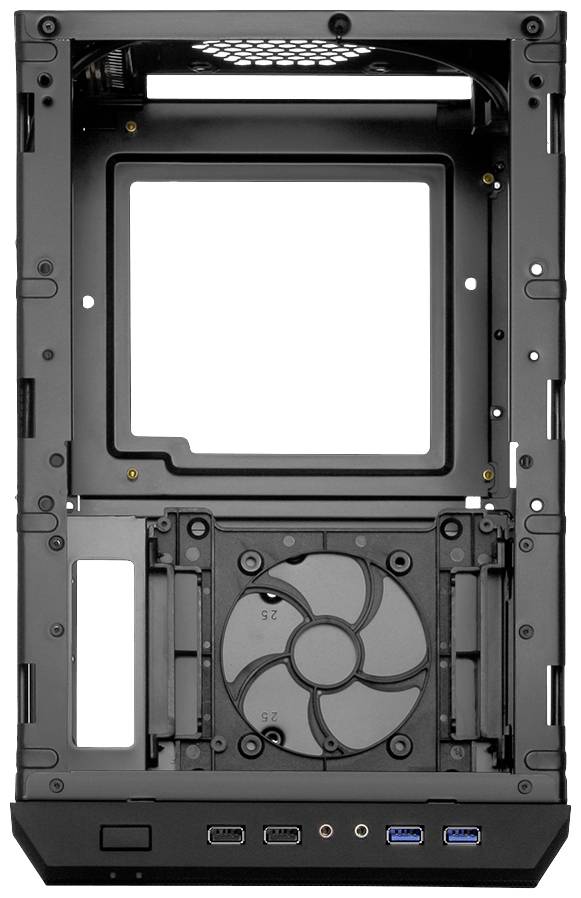

The QB ONE offers space for installing a powerful dual-slot graphics card with a maximum length of up to 31.5 cm. In addition, up to two 3.5-inch hard drives or two 2.5-inch HDD/SSD drives can be installed. Another 2.5-inch HDD/SSD can also be mounted in the rear of the case, instead of a 80-mm fan. CPU coolers can be used with a maximum height of up to 15 cm. The casing possesses an appropriate installation opening for convenient installation of the cooler. Practical knurled screws also simplify the opening and closing of the casing.
