Highlights & Details

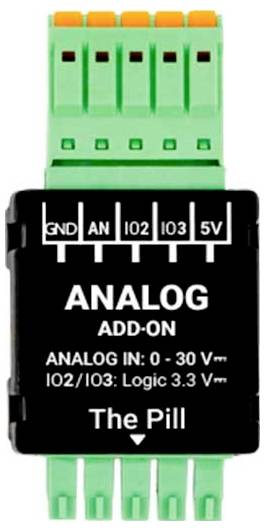

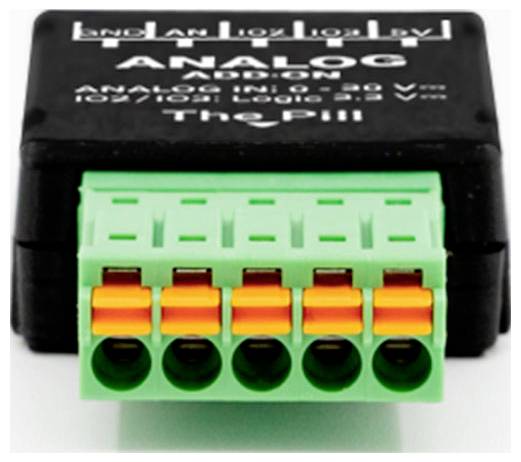

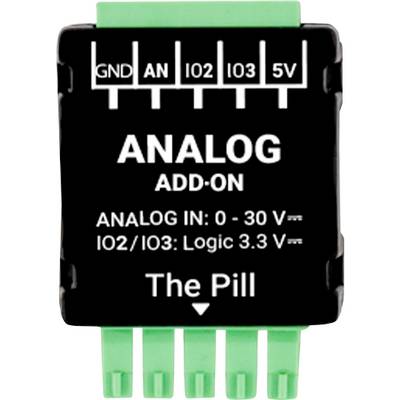

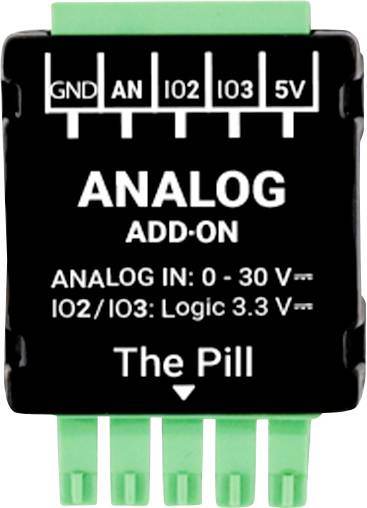

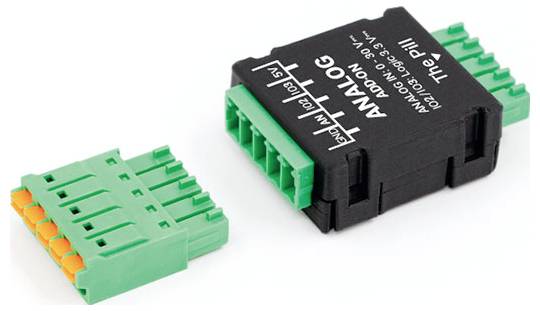

Shelly the Pill "analogue 0-30 V add-on"

Technical specifications

: Alexa
Google Home

Factory colour: Black

: n.rel.

Hub: Not required

Product type: Adapter

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3642426 Shelly Analog 0-30 V Add-on Adapter

User & Safety Instructions

User & Safety Instructions 3642426 Shelly Analog 0-30 V Add-on Adapter

Description

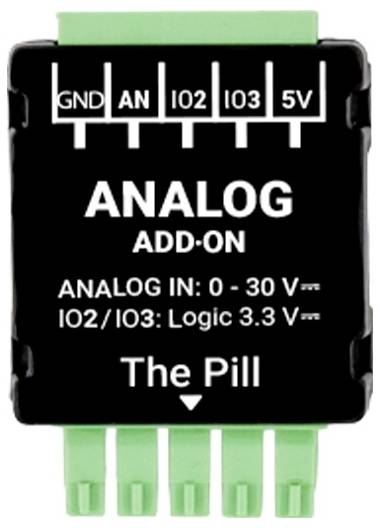

Add-on module for The Pill by Shelly, which measures analogue sensors and DC voltages up to 30 V. Ideal for monitoring batteries, power supplies and other low-voltage devices.
*Analog 0-30 V add-on is sold separately and requires the 5-terminal add-on to connect to The Pill by Shelly.

This text is machine translated.

Features

- Measuring range: 0 - 30 V DC
- Extends the measuring range of The Pill for sensors and batteries
- Compatible with the 5-terminal add-on
- 1 analog input (ON) + 2 configurable digital inputs/outputs (3.3 V logic level)
- 5 V voltage output for connected sensors
