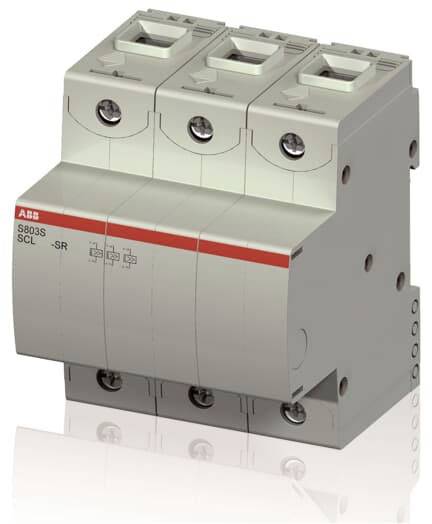

Shunt current limiter 100 A ABB 2CCS803901R0639
EAN:
Part number:
Item no:
Product type
Shunt current limiter
Nominal current - rounded value
100 A
Nominal current
100 A
UKCA
yes
Datasheet (PDF)
Technical specifications
- Conditional rated short-circuit current IQ: 50
- Rated continuous current IU: 100
- Mounting type: DIN rail
- Short circuit current limiter: Yes
- Max. Apparent power 69000
- Product type
Shunt current limiter
- Nominal current
100 A
- Nominal current - rounded value
100 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318538 Shunt current limiter 100 A ABB 2CCS803901R0639
User & Safety Instructions
User & Safety Instructions 2318538 Shunt current limiter 100 A ABB 2CCS803901R0639
Description
The S800-SCL-SR can be used in conjunction with the S800S high-power circuit breaker or motor protection switches. The S800-SCL-SR limits the short-circuit current and helps to extinguish it until the nearest switching device to the fault is triggered. During this entire time, the current flow to the downstream switching devices is ensured, was made the ideal solution for group protection. All other parallel outputs remain in operation, except for the faulty outgoing feeder.
