SHURflo 2088-514-145 Low voltage impeller pump 13.5 l/min 12 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Pump SHURflo premium 2088-514-145
- 3.6 GPM 12VDC
- delivery height 30m
- Flow rate: 13.5 l /
Technical specifications
- Operating voltage
12 V
- Max. delivery head
30 m
- Max. discharge pressure
3 bar
- Max. feed rate
13.5 l/min
- Product type
Low voltage impeller pump
Documents & Downloads
Datasheet
Datasheet 2873026 SHURflo 2088-514-145 Low voltage impeller pump 13.5 l/min 12 V
User & Safety Instructions
User & Safety Instructions 2873026 SHURflo 2088-514-145 Low voltage impeller pump 13.5 l/min 12 V
User & Safety Instructions 2873026 SHURflo 2088-514-145 Low voltage impeller pump 13.5 l/min 12 V
Conformity certificate
Conformity certificate 2873026 SHURflo 2088-514-145 Low voltage impeller pump 13.5 l/min 12 V

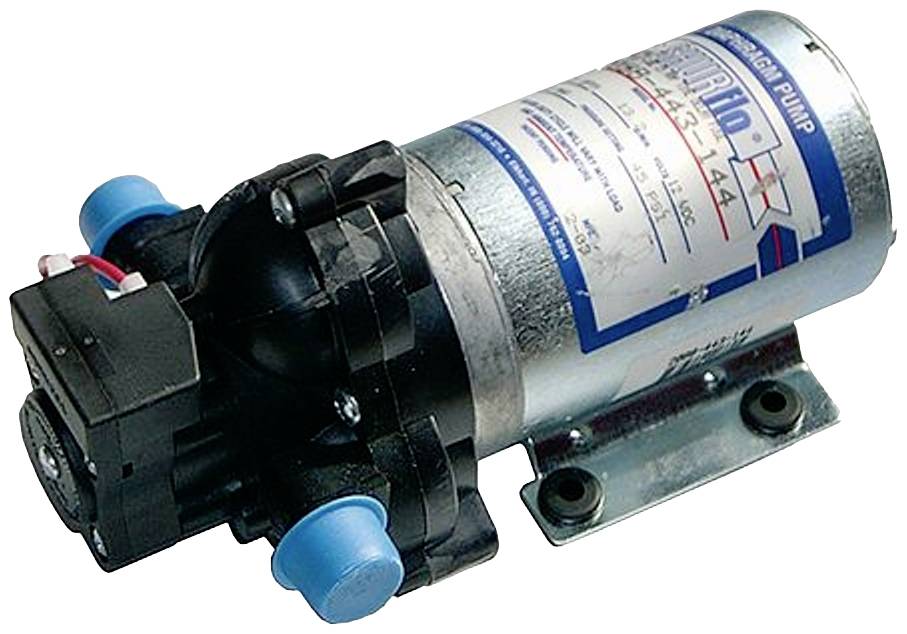

Description
High performance 3-chamber diaphragm pump with cooling fins. Pressure shut-off at approx. 3.1 bar. Delivery height max. 30 m, discharge volume max. 800 l/h (13.6 l/min). Operating voltage 12 Volt DC, max. current consumption 9.5 Ampere. Dry operation up to max. 1h possible. Connection pressure and suction side 1/2" threaded connector This 12V water pump with a max. Power consumption of 110 Watt is also suitable for use with small isolated systems.
This text is machine translated.
This text is machine translated.
Features
- 3.5 bar
- 1/2 MSPT
