SHURflo LCB-G75 Pumpencontroller Shurflo LCB-G75 Pump control panel
EAN:
Part number:
Item no:
Highlights & Details

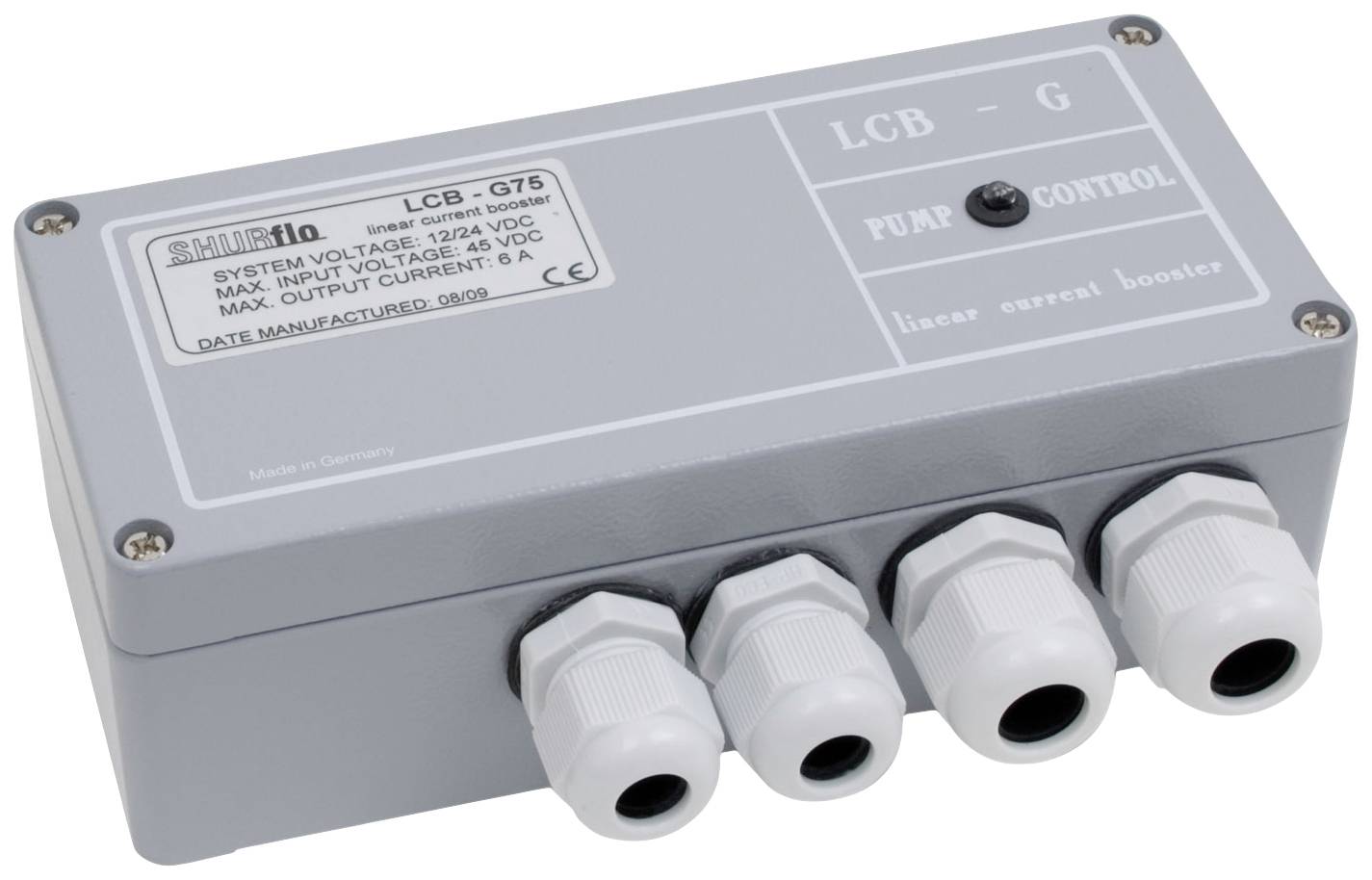

Pump controller SHURflo LCB-G75
- Model 902-200 constant current and dry running protection
- 150 Watt
- 12, 24VDC
Technical specifications
- Product type
Pump control panel
- Operating voltage
12 V
24 V
- Factory colour
Grey (matt)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2873023 SHURflo LCB-G75 Pumpencontroller Shurflo LCB-G75 Pump control panel
User & Safety Instructions 2873023 SHURflo LCB-G75 Pumpencontroller Shurflo LCB-G75 Pump control panel
User & Safety Instructions 2873023 SHURflo LCB-G75 Pumpencontroller Shurflo LCB-G75 Pump control panel
User & Safety Instructions 2873023 SHURflo LCB-G75 Pumpencontroller Shurflo LCB-G75 Pump control panel
Conformity certificate
Conformity certificate 2873023 SHURflo LCB-G75 Pumpencontroller Shurflo LCB-G75 Pump control panel
Description
The LCB-G75 Booster with integrated adapter protects the pump from too high solar module input voltages and starts the pump only with sufficient solar module power (prevents harmful 'pendulum operation). The control system allows higher pump capacity in case of low solar irradiation.
With the LCB-G Booster simultaneously 3 sensor lines are supplied for monitoring of water level This will prevent the pump from running dry. It is also possible to connect an additional float switch (order separately). With this, a pump switch-off can be regulated e.g. at full cistern. The aluminum housing is protected against water splashes (IP65). Internal LED display operating states, optional dip switch for operation via batteries 12 or 24 volt or solar.
This text is machine translated.
With the LCB-G Booster simultaneously 3 sensor lines are supplied for monitoring of water level This will prevent the pump from running dry. It is also possible to connect an additional float switch (order separately). With this, a pump switch-off can be regulated e.g. at full cistern. The aluminum housing is protected against water splashes (IP65). Internal LED display operating states, optional dip switch for operation via batteries 12 or 24 volt or solar.
This text is machine translated.
Features
- With 75 m cable
